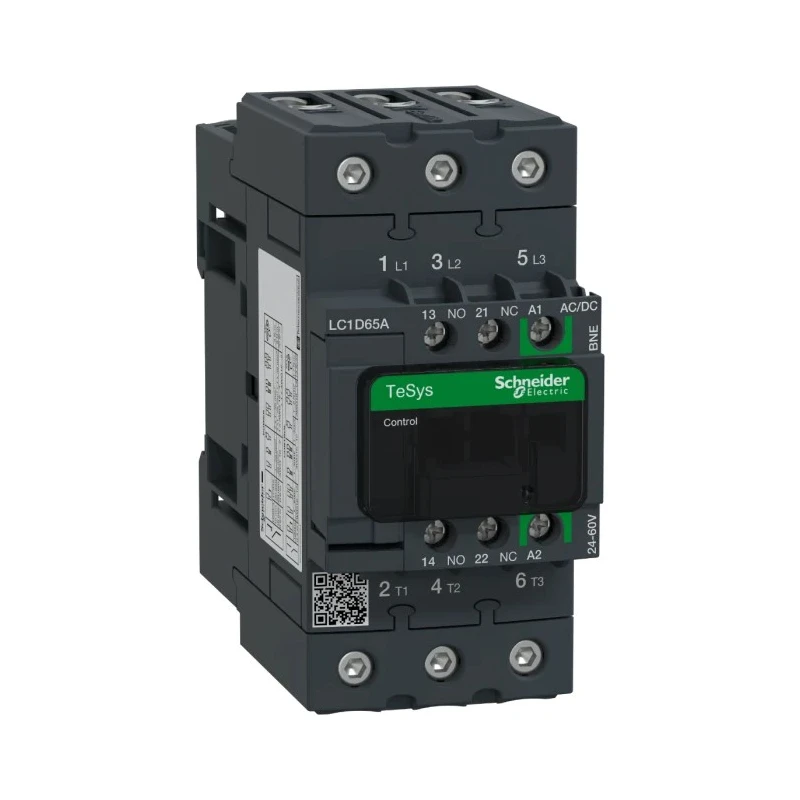

Schneider Electric TeSys D Contactor, 24V AC/DC Coil, 3-Pole, 65A, 30kW, 60V Control Circuit, 3 NO, 690V AC LC1D65ABNE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 55mm |
| Model | LC1D65ABNE |
| Depth | 122mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 65A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 65A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
| Schneider Electric LC1D Series Contactor, 3-Pole, 3NOBrand | Schneider Electric |
Key Features
- Operates with a control circuit voltage of 60V and contact voltage of 690V AC.
- Power rating of 30kW suitable for various industrial motor applications.
- Includes 3 normally open (NO) contacts and 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Designed for mounting on DIN rail providing secure installation and easy integration.
- Operates reliably within a temperature range of -25°C to 60°C with IP20 finger-safe terminals.
- Complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC1D65ABNE is a high-quality TeSys D Contactor designed for motor control and resistive loads, operating with a 24V AC/DC coil and delivering a contact current of 65A. It features a 3-pole configuration with three normally open contacts and two auxiliary contacts configured as 1 NO and 1 NC, supporting a contact voltage of 690V AC and power rating of 30kW.
This contactor is intended for industrial use in electrical and automation systems, suitable for controlling motors, resistive loads, lifts, conveyors, compressors, and air conditioning units. It facilitates motor starter assembly with reliable operation and long mechanical and electrical life.
Mounting is adaptable with both DIN rail and panel screw options, incorporating IP20 finger-safe screw terminals with clear North American and international markings for safety and ease of wiring. The device operates effectively in temperature ranges from -25°C to 60°C, ensuring performance under diverse environmental conditions.
TeSys D contactors include bidirectional peak limiting diode suppressors to protect the coil and feature built-in auxiliary contacts to enhance switching capability. The design supports quick and simple setup while ensuring compliance with major international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, underscoring product safety and quality.
Typical applications cover motor control for squirrel cage motors under utilization category AC-3, including breaking while running, as well as resistive loads defined under AC-1. The contactor is optimized for industrial, manufacturing, HVAC, and automation system environments.
Operates with a 24V AC/DC coil for flexible control options. Provides reliable motor and resistive load control with a 65A capacity. Three poles with three normally open contacts ensure effective switching. Includes two auxiliary contacts for additional switching functions.
Durable mounting options including DIN rail and panel mount. Compliance with international safety and environmental standards. Explore more Schneider Electric products in the Contactors category at EnvMart for advanced solutions in electrical automation and control gear.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric TeSys D Contactor has a power rating of 30kW, suitable for various industrial motor applications.
This model operates with a maximum contact voltage of 690V AC.
The coil voltage for the LC1D65ABNE is 24V AC/DC.
It features a 3-pole configuration with three normally open contacts.
The operational current rating of this contactor is 65A.
The dimensions of the LC1D65ABNE are 55mm in length, 120mm in width, and 122mm in depth.
This unit is designed for mounting on DIN rail, providing secure installation and easy integration.
It operates reliably within a temperature range of -25°C to 60°C.
This contactor is suitable for controlling motors, resistive loads, lifts, conveyors, compressors, and air conditioning units.
It includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It features IP20 finger-safe screw terminals with both North American and international terminal markings.
