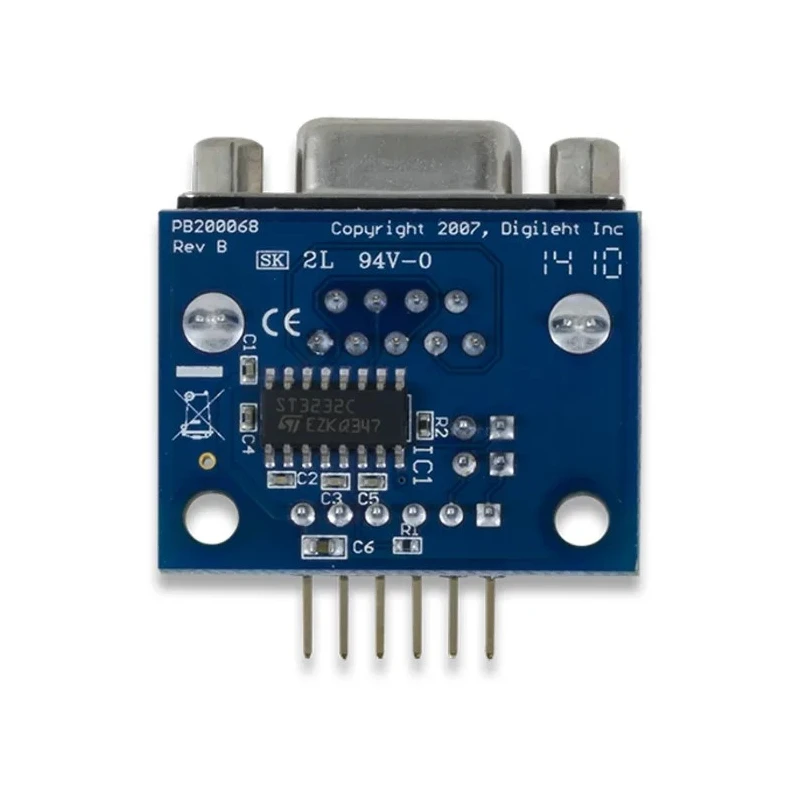

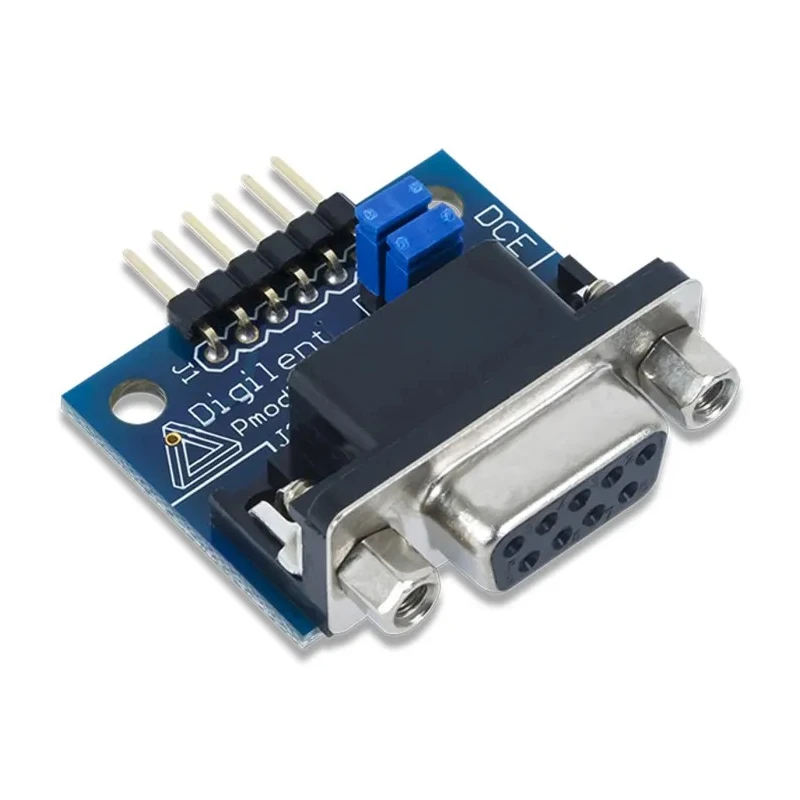

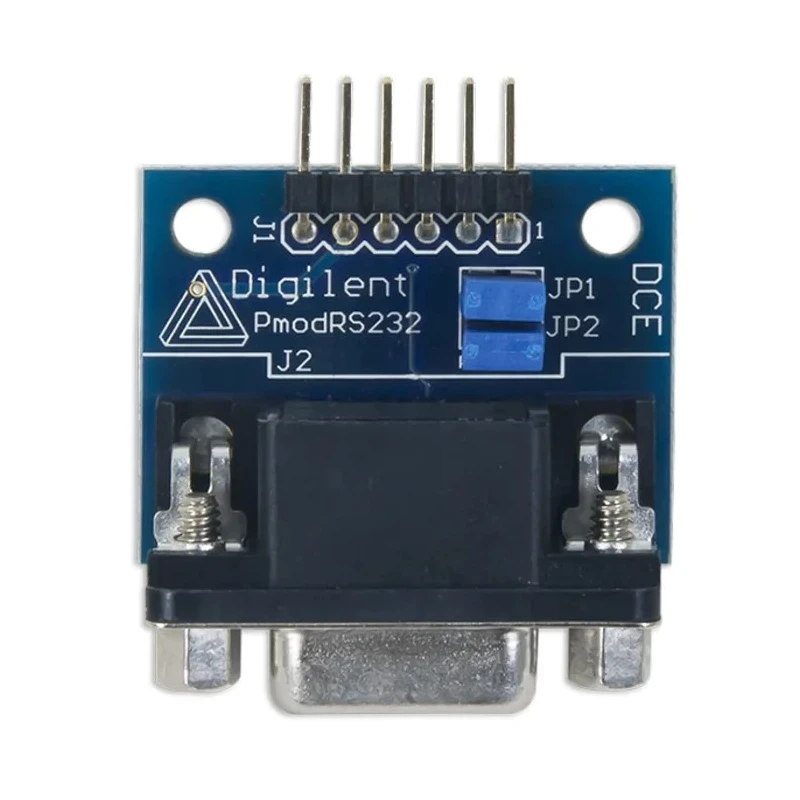

Digilent Pmod RS232 UART-RS232 Expansion Module Communication & Wireless Development Tool 410-068

Digilent 410-068 Pmod RS232 Expansion Module is a high-quality communication and wireless development tool designed to convert UART device logic voltage levels into RS-232 levels suitable for connection to PC COM ports and other serial interfaces. Engineered by Digilent, this expansion module facilitates communication between digital logic devices and standard RS-232 serial ports.

The module is configured as a Data Communications Equipment (DCE) device, enabling connection to Data Terminal Equipment (DTE) like PC serial COM ports through standard straight-through cables. Central to its design is the MAX3232 RS-232 transceiver device, which ensures reliable and accurate voltage level translation.

It features a standard DE9 female connector for robust RS-232 output. Users benefit from jumper links that provide optional RTS/CTS hardware flow control when such signaling is supported by the connected device, enhancing communication reliability.

Following the Digilent Pmod Interface Specification Type 3 guarantees compatibility and ease of integration with other Pmod devices and systems. The compact form factor, measuring 25 x 33 mm, allows for seamless incorporation into various development and educational projects.

Converts UART logic levels to RS-232 voltages for serial communication. Equipped with MAX3232 RS-232 transceiver for stable voltage conversion. Standard DE9 female connector provides a universal RS-232 interface. Supports optional RTS/CTS flow control via jumper settings.

Adheres to Digilent Pmod Interface Specification Type 3 for interoperability. Compact size enables integration in tight spaces and embedded systems. Ideal for use in electronics development, embedded systems, and communication interface projects.

This Pmod RS232 Expansion Module is widely applicable in electronics and embedded systems development, laboratory experimentation, educational STEM projects, and communication interface implementations. Its reliable UART to RS-232 voltage translation makes it a critical component in bridging microcontroller-based systems with standard PC serial ports and other legacy serial devices.
