Digilent Cmod A7 Artix-7 FPGA Development Module with ADC1410 for DAC121S101 410-328-35

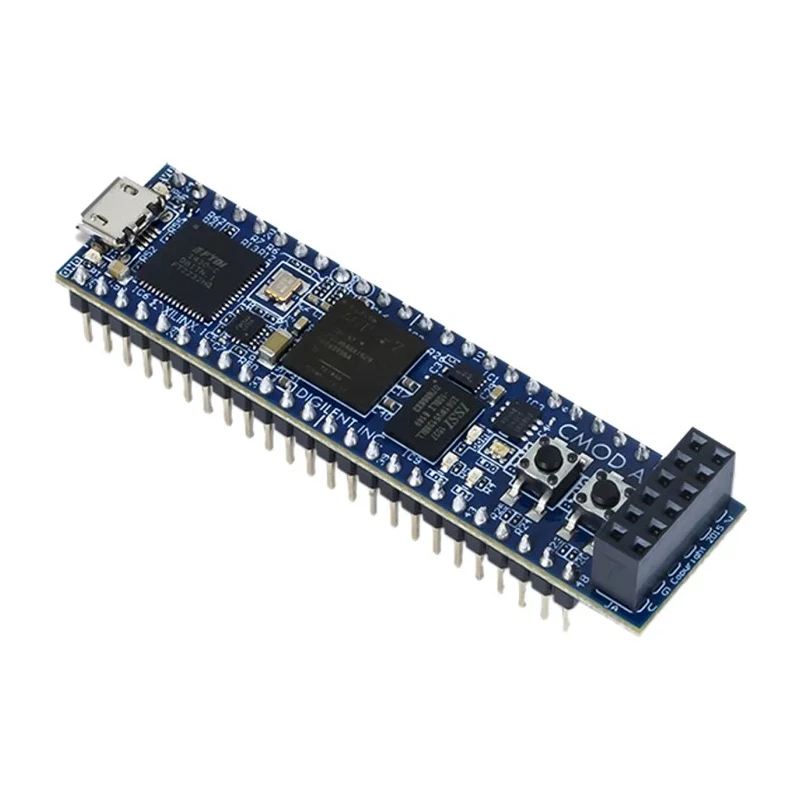

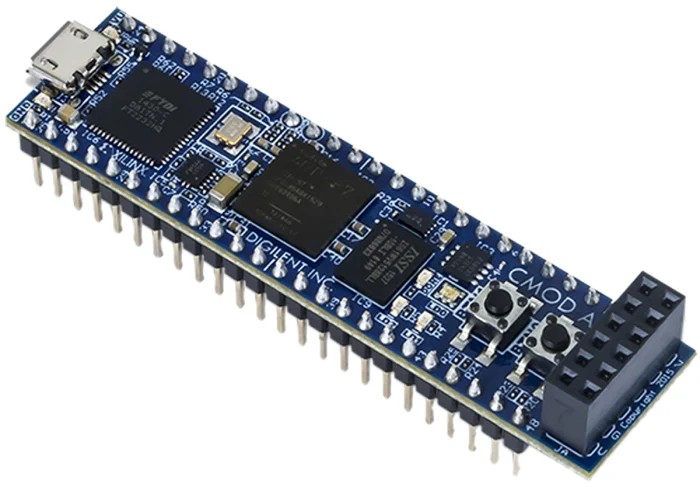

Digilent 410-328-35 Cmod A7 Artix-7 FPGA Development Module with ADC1410 for DAC121S101 is a small, 48-pin DIP form factor development board featuring the powerful Xilinx Artix 7 FPGA. This compact module offers a comprehensive setup for digital logic circuit development and embedded softcore processor designs utilizing MicroBlaze architecture.

The FPGA comprises 33280 logic cells arranged in 5200 slices, each containing 4 six-input lookup tables and 8 flip-flops. It also integrates 1800 Kbit fast block RAM and 90 DSP slices, supporting high-speed signal processing and arithmetic operations. Internal clock speeds can exceed 450 MHz, enabling rapid data handling and logic operations.

The board includes onboard IS61WV5128BLL-10BLI 512 KB SRAM for fast data access and N25Q032A 4 MB Quad SPI flash memory for firmware storage. Connectivity and programming are streamlined with an integrated USB-JTAG interface and USB-UART bridge, facilitating easy deployment and debugging. The module also incorporates two user LEDs, an RGB LED, and two pushbuttons for interactive testing and control.

Standard interfacing capabilities include a Pmod 2 x 6-pin connector and a 48-pin DIP connector supplying 44 general-purpose I/O pins and 2 analog inputs. The module supports power from a USB source or an external voltage between 3.3 V and 5.5 V DC, providing flexibility across different development environments.

Compliant with RoHS and certifications such as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, this module is suitable for industrial, educational, and research applications involving FPGA development, embedded systems prototyping, digital signal processing, and control system design. It is ideal for use with DAC121S101, leveraging the onboard ADC1410 featured device.

This product is manufactured in Taiwan, Province Of China. It represents a reliable, feature-rich solution for FPGA-based development projects requiring a compact and powerful platform.

Features a Xilinx Artix 7 FPGA with 33280 logic cells in 5200 slices. 1800 Kbit fast block RAM and 90 DSP slices for advanced computation. Internal clock speeds exceeding 450 MHz for high performance. Onboard 512 KB SRAM and 4 MB Quad SPI flash memory.

Includes USB-JTAG and USB-UART bridge interfaces. Equipped with user LEDs and pushbuttons for control. Standard Pmod and DIP connectors with extensive GPIO and analog inputs. Power supply via USB or 3.3 V - 5.5 V DC external source.

Meets RoHS compliance and ANSI/ESD safety standards. Manufactured in Taiwan, Province Of China. Explore more FPGA Development Tools and modules at EnvMart for industrial, educational, and commercial applications.
