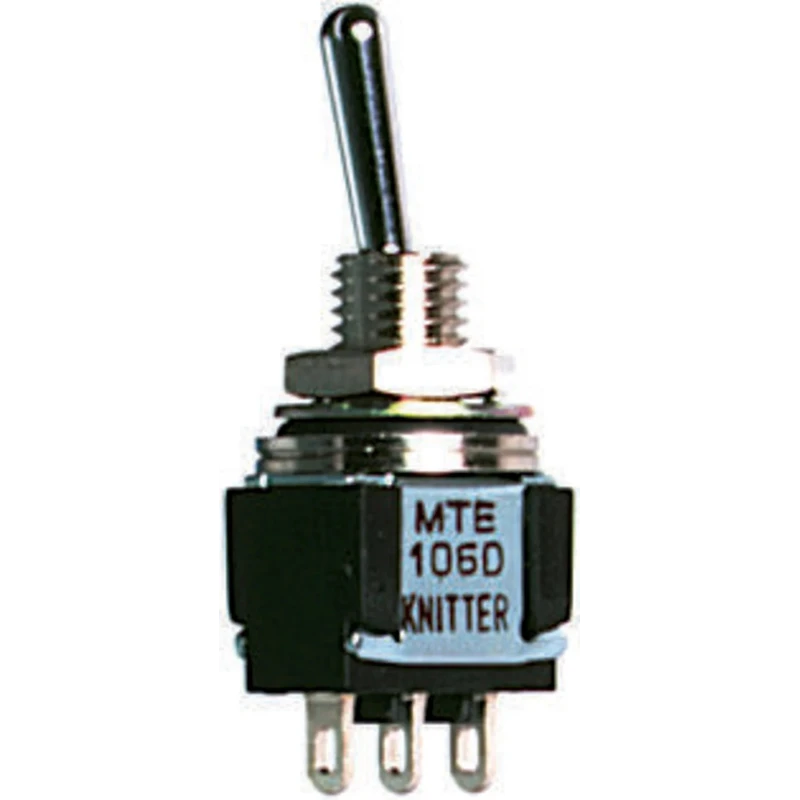

KNITTER-SWITCH Panel Mount Toggle Switch On-Off-On SPDT, Solder Terminal, 30 V DC, 250 V AC MTE 106 E

KNITTER-SWITCH MTE 106 E panel mount toggle switch features a reliable On-Off-On operation with a SPDT contact configuration. Designed to handle DC voltages up to 30 V and AC voltages up to 250 V, it is suitable for a wide range of electrical and automation applications.

This toggle switch is engineered for durability and performance, incorporating silver plated contacts for enhanced conductivity and chrome plated actuator which provides corrosion resistance and a quality finish. The IP67 ingress protection rating ensures the switch is well protected against dust and water ingress, making it ideal for harsh industrial environments.

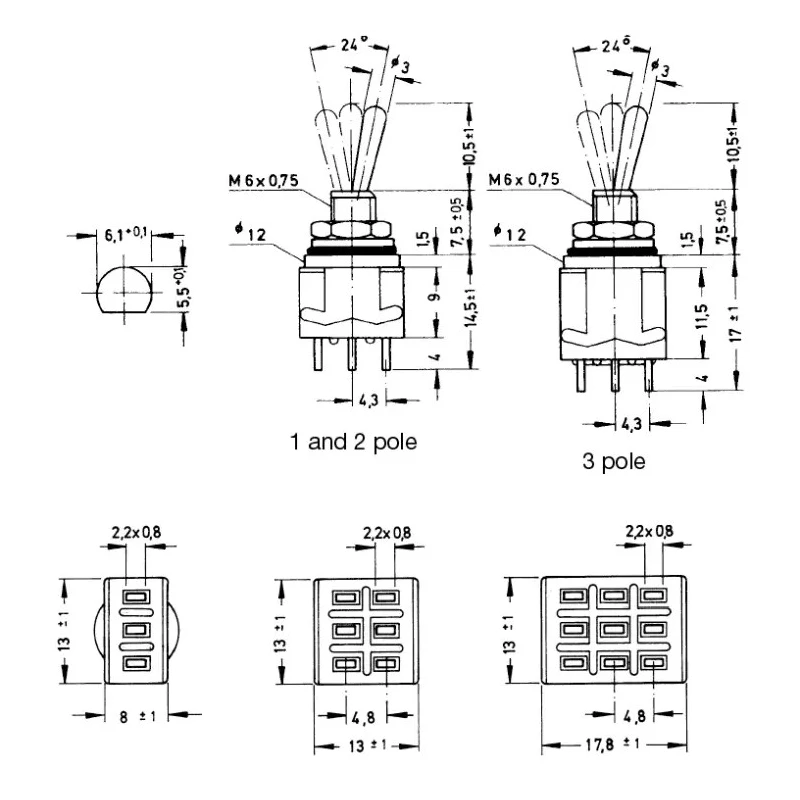

The switch is panel mounted with a compact cutout size of 6.1 x 5.5 mm and supports a maximum panel thickness of 1.5 mm. Its mechanical life spans up to 100,000 operations, ensuring dependable switching action over extended use.

Additional technical features include a solder terminal type with copper alloy silver plated tags, operating temperature range from -45°C to 140°C, and a contact current rating of 4 A. Its dimensions (32.5 mm height, 8 mm width, 13 mm length) provide easy integration into control panels and equipment.

This product meets UL and RoHS standards, ensuring compliance with international safety and environmental directives. Ideal for use in industrial controls, automation systems, electrical panels, and other equipment requiring robust toggle switching functionality with waterproof protection.

Single pole double throw (SPDT) contact configuration provides versatile switching. Panel mount design with a panel cutout size of 6.1 x 5.5 mm. Robust chrome plated actuator measuring 10.5 mm in length ensures durability.

High ingress protection rating of IP67 for waterproof and dustproof use. Suitable for operating temperatures ranging from -45°C to 140°C. Switch contact current rating of 4 amps supports moderate electrical loads. Mechanical life expectancy up to 100,000 operations for long-term reliability.

Compact dimensions: Height 32.5 mm, Width 8 mm, Length 13 mm for easy integration. Constructed with silver plated contacts and copper alloy solder tags for excellent conductivity. Certified to UL and RoHS standards for safety and environmental compliance.
