HARWIN M22 Series Straight Through Hole Pin Header 9 Contact 2 mm Pitch 1 Row Unshrouded M22-2010905
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-2010905 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |

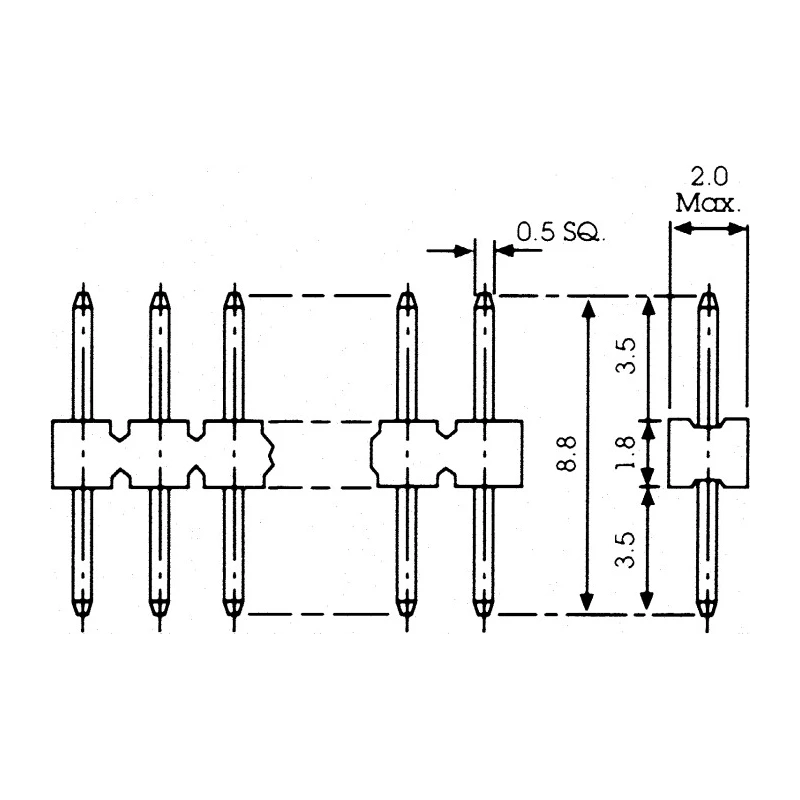

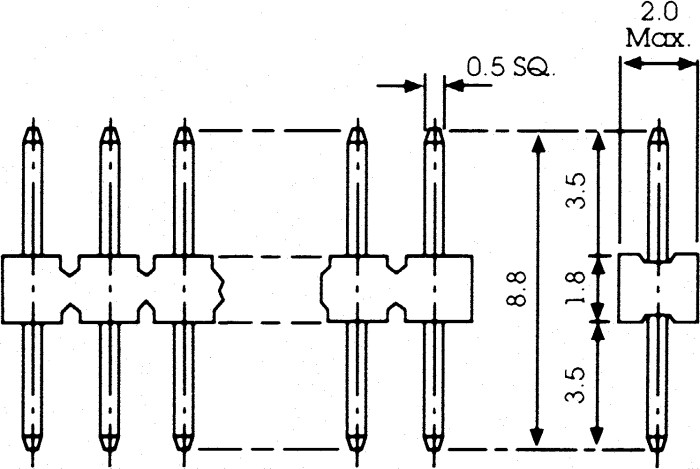

| Tail Pin Length | 3.5mm |
Key Features
- Constructed with high temperature nylon housing allowing reflow soldering processes.
- Features phosphor bronze contacts with gold plating for reliable conductivity.
- Unshrouded single row design for flexible PCB connections.
- Rated for 1A current and 250V voltage with a temperature range from -40°C to 105°C.
- Tail and mating pin length measure 3.5 mm, ensuring secure board-to-board connections.
- Suitable for embedded PCs, motherboards, and large electronics systems.
- Compact 2 mm pitch supports high density PCB configurations.
- Manufactured in Taiwan, Province Of China, ensuring quality standards.
Product Description

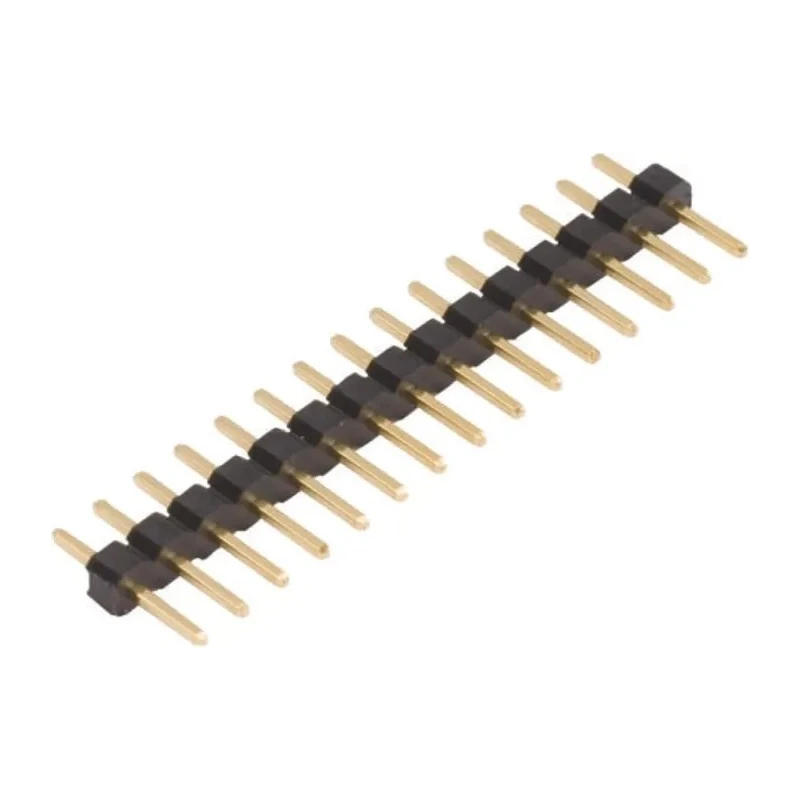

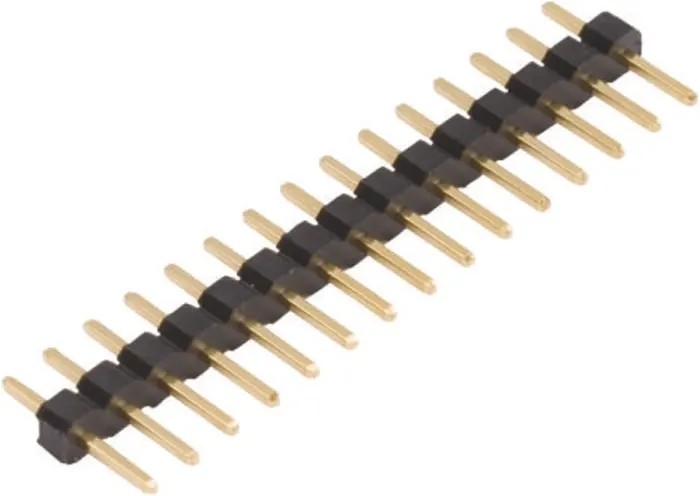

HARWIN M22-2010905 is a robust straight through hole pin header featuring 9 contacts and a 2 mm pitch, ideal for printed circuit board (PCB) applications requiring precise and reliable connections.
The pin header utilizes a high temperature nylon housing that endures the reflow soldering process, making it suitable for surface-mount technology (SMT) and through hole assembly. Its design incorporates castellated edges allowing for custom cutting to fit various layout requirements, with care taken to maintain tail integrity.
Phosphor bronze contact material with gold plating enhances electrical performance and corrosion resistance, supporting a current rating of 1 ampere and voltage of 250 volts. The connector system is board-to-board type, featuring a single row of unshrouded male contacts with solder termination.
Operating temperature ranges from -40°C to 105°C, ensuring reliable performance in diverse environmental conditions. The tail and mating pin lengths are precisely 3.5 mm for consistent mating and durability.
This M22 series pin header is widely used in embedded PCs, motherboards, consumer electronics, communications devices, industrial controls, and monitoring systems, among other electronics.
Constructed with high temperature nylon housing allowing reflow soldering processes. Phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance. Unshrouded single row layout with 9 contacts at 2 mm pitch.
Rated 1A current, 250V voltage, and temperature range from -40°C to 105°C. 3.5 mm tail and mating pin length for secure board connections. Customizable length with castellated housing design. Suitable for embedded PCs, industrial and communication electronics.
Manufactured in Taiwan, Province Of China with consistent quality. Explore the wide range of PCB connectors and headers at EnvMart for all your electronic assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1 ampere and a voltage rating of 250 volts.
The operating temperature range for this unit is from -40°C to 105°C.
It features a nylon housing and phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance.
This pin header has a pitch of 2 mm and contains 9 contacts.
The tail and mating pin length for this model is 3.5 mm.
Yes, it is constructed to endure the reflow soldering process, making it suitable for SMT applications.
The termination type for this connector is solder.
This pin header features a board-to-board connector system.
This pin header has a straight orientation.
It is manufactured in Taiwan, Province Of China.
This model is suitable for embedded PCs, motherboards, consumer electronics, and industrial controls.
This pin header has a single row design.
