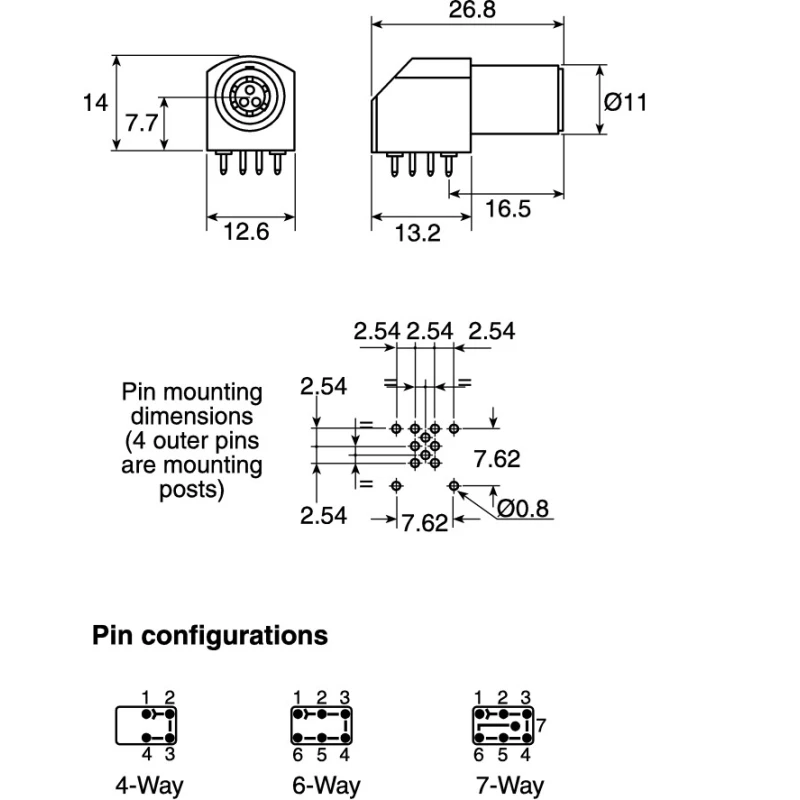

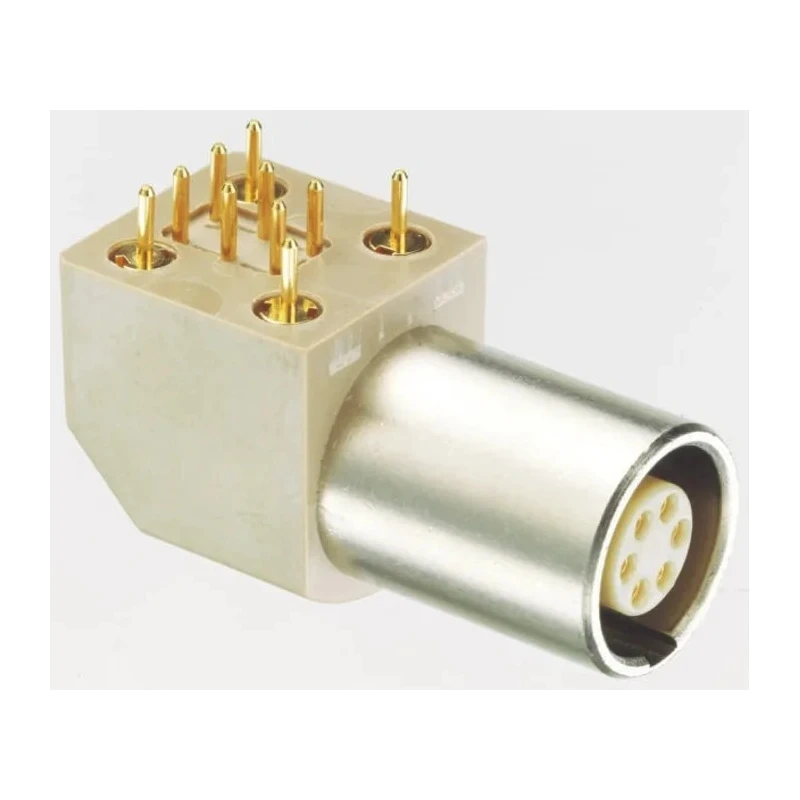

LEMO Circular Connector, 6 Contacts, Panel Mount Socket, Female, 12.6 mm Connector Size, IP50 Protection, 1B EPG.1B.306.HLN
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1450V |
| Brand | LEMO |
| Orientation | Right Angle |
| Current | 4.5A |
| Model | EPG.1B.306.HLN |
| IP Rating | IP50 |
| Mount Type | Panel Mount |
| Housing Material | Brass |
| Contact Material | Beryllium Alloy |
| Series | 1B |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 6 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shell Size | 1 |
| Mating Type | Push Pull |
| Connector Size | 12.6 mm |
| Plug/Socket | Socket |
Key Features
- Constructed with durable brass housing material for robust performance.
- Equipped with gold over nickel plated beryllium alloy contacts for reliable electrical conduction.
- Rated IP50 for protection against dust ingress in industrial environments.
- Supports a maximum current of 4.5A and voltage rating of 1450V for secure connections.
- Push-pull mating system facilitates quick and secure connector engagement and disengagement.
- Right angle orientation and solder termination ensure compact PCB integration.
- Operates reliably across a temperature range from -55°C to 250°C.
- Designed under the 1B series standard providing compatibility with free plugs and panel sockets.
Product Description
LEMO EPG.1B.306.HLN is a premium circular connector designed for industrial and electronic applications requiring reliable and high performance panel mount connectivity. This socket connector features 6 gold over nickel plated beryllium alloy contacts housed securely within a brass shell with a 12.6 mm diameter size. The connector is part of the 1B series, known for metal free plugs with PEEK insulating material ensuring excellent durability and insulation.
Specifically engineered for challenging environments, the connector has an IP50 ingress protection rating, safeguarding against dust penetration. It supports a high operating current of 4.5 amperes and withstands voltages up to 1450V, making it suitable for power and control signal transmission in industrial equipment and instrumentation. The push-pull mating mechanism ensures a secure and swift connection while the solder termination type enables reliable PCB mounting.
The right-angle orientation of the connector helps in space-constrained designs and maintains signal integrity at high operating temperatures from -55°C to 250°C. The housing material brass adds mechanical strength and corrosion resistance for long service life. This socket is designed for mating with free cable plugs featuring collets compatible up to 6 mm cable diameter, enhancing installation flexibility.
Brass housing provides robust mechanical protection and corrosion resistance. Gold plated beryllium alloy contacts ensure superior electrical conductivity and durability. IP50 rated ingress protection ideal for dusty industrial settings.
Supports 4.5A current and 1450V voltage suitable for a wide range of electronic applications. Push-pull mating system offers quick and secure connection engagement and release. Right angle design suits compact PCB and panel mount configurations.
Wide operating temperature range from -55°C to 250°C ensures reliability in extreme climates. Solder termination compatibility allows solid PCB mounting. Part of 1B series ensures interoperability with related connectors and accessories.
These circular connectors are essential components in industrial tools, manufacturing equipment, instrumentation, and electronic assemblies requiring dependable connectivity solutions. Their robust design supports applications in harsh environments where reliability and durability are paramount.
Explore the full range of circular connectors and industrial connectors on EnvMart to find high-quality components suitable for various electronic and industrial needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 4.5A and a voltage rating of 1450V, making it suitable for power and control signal transmission in various applications.
It features a solder termination type, which allows for reliable mounting on printed circuit boards (PCBs).
The connector has an IP50 ingress protection rating, which provides protection against dust ingress in industrial environments.
The housing is made of brass, and the contacts are gold over nickel plated beryllium alloy, ensuring reliable electrical conduction and mechanical strength.
It operates reliably across a temperature range from -55°C to 250°C, making it suitable for extreme environmental conditions.
This unit features 6 contacts, designed for effective electrical connectivity in industrial applications.
The connector has a right angle orientation, which is beneficial for space-constrained designs and PCB integration.
It is part of the 1B series, which ensures compatibility with free plugs and panel sockets designed under the same standard.
It employs a push-pull mating system, allowing for quick and secure engagement and disengagement of connections.
The connector size is 12.6 mm, which is designed for compatibility with various applications and installations.
The country of origin for this connector is Switzerland, known for its high manufacturing standards.
This circular connector is suitable for industrial tools, manufacturing equipment, instrumentation, and electronic assemblies requiring dependable connectivity solutions.
