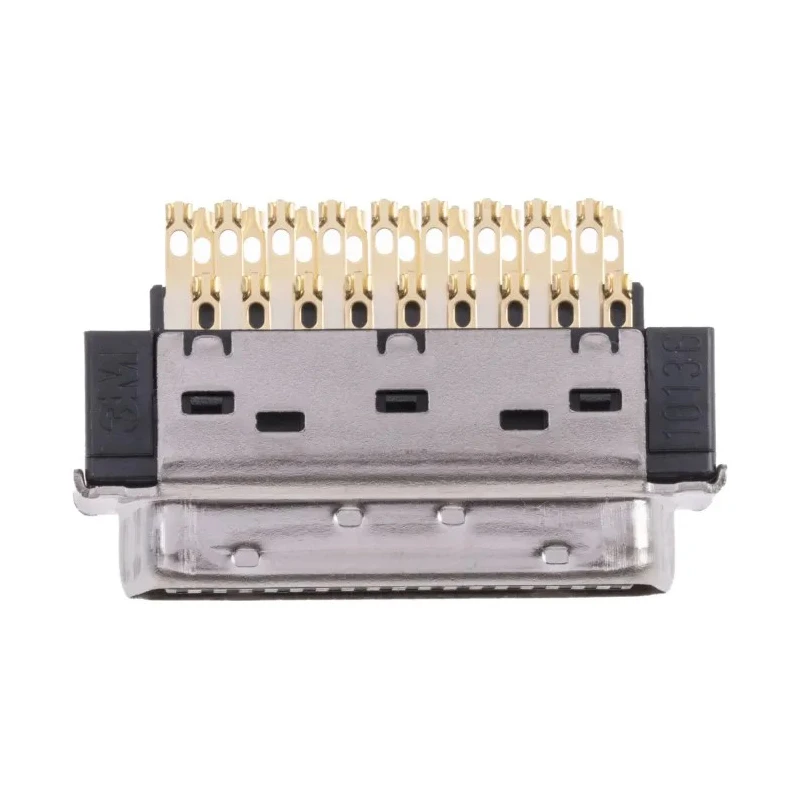

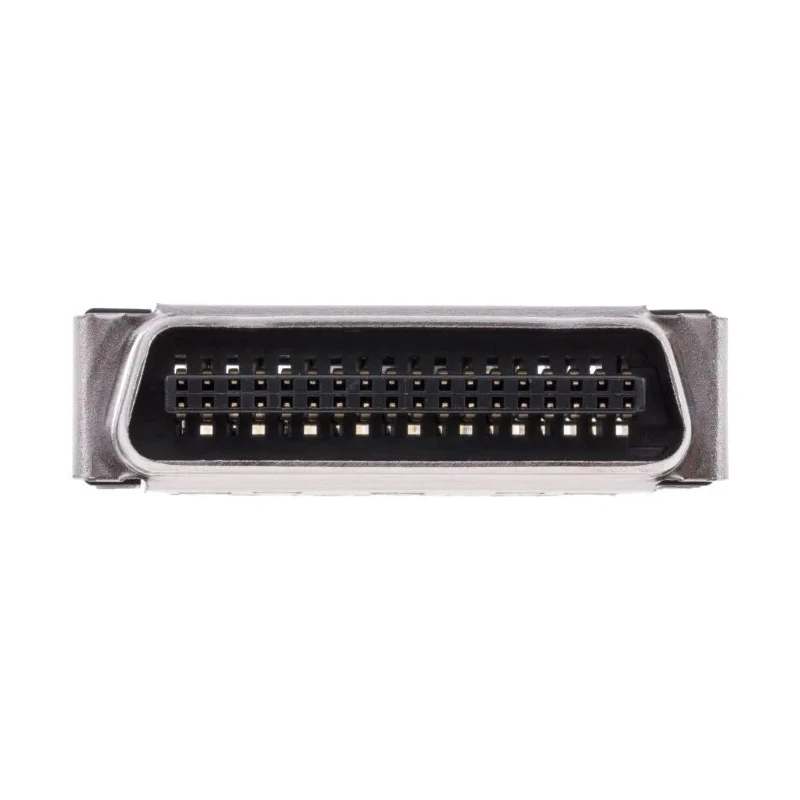

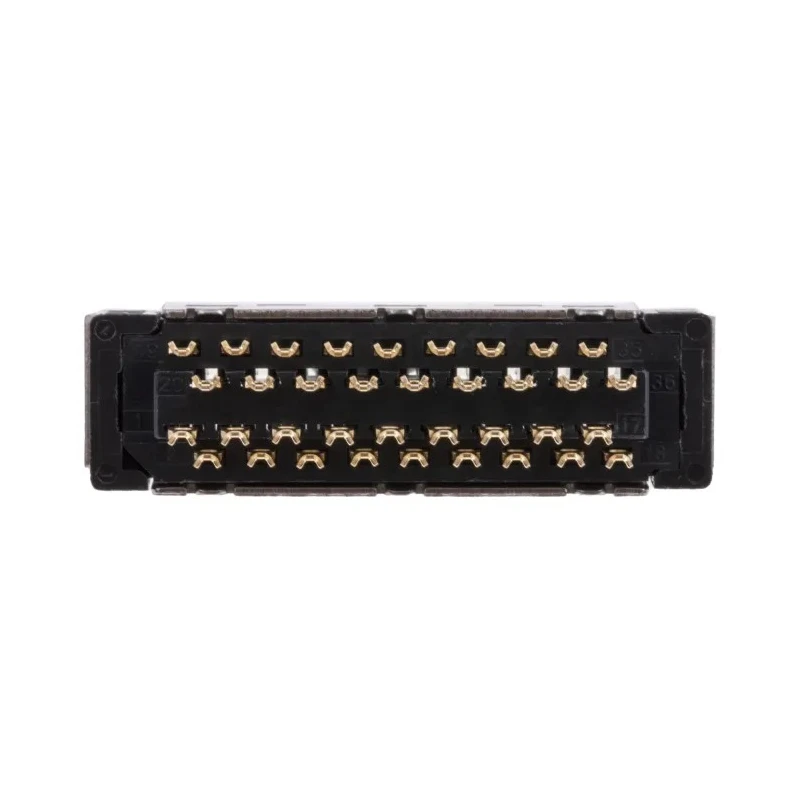

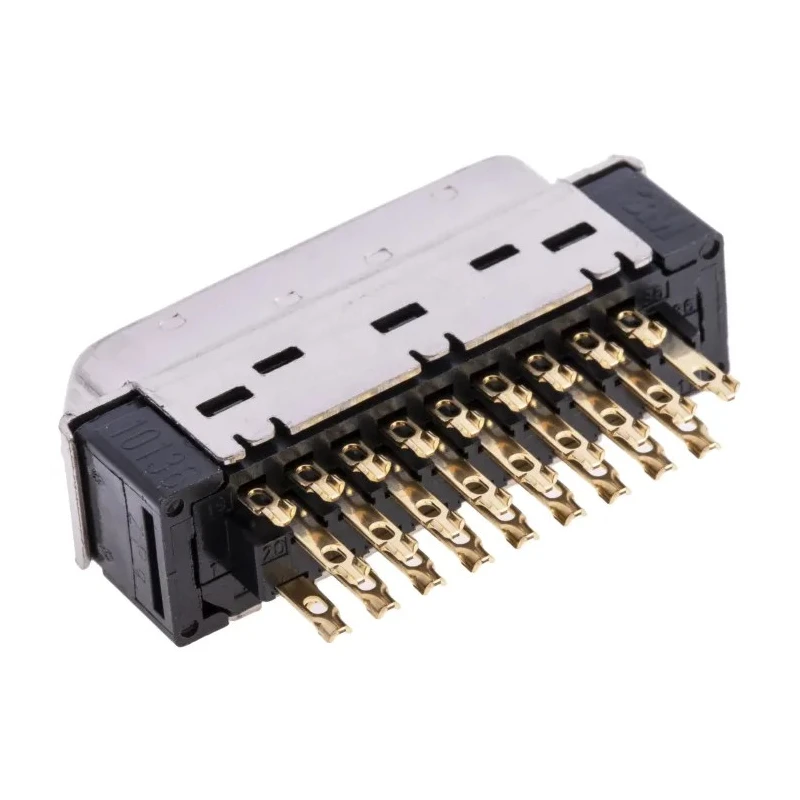

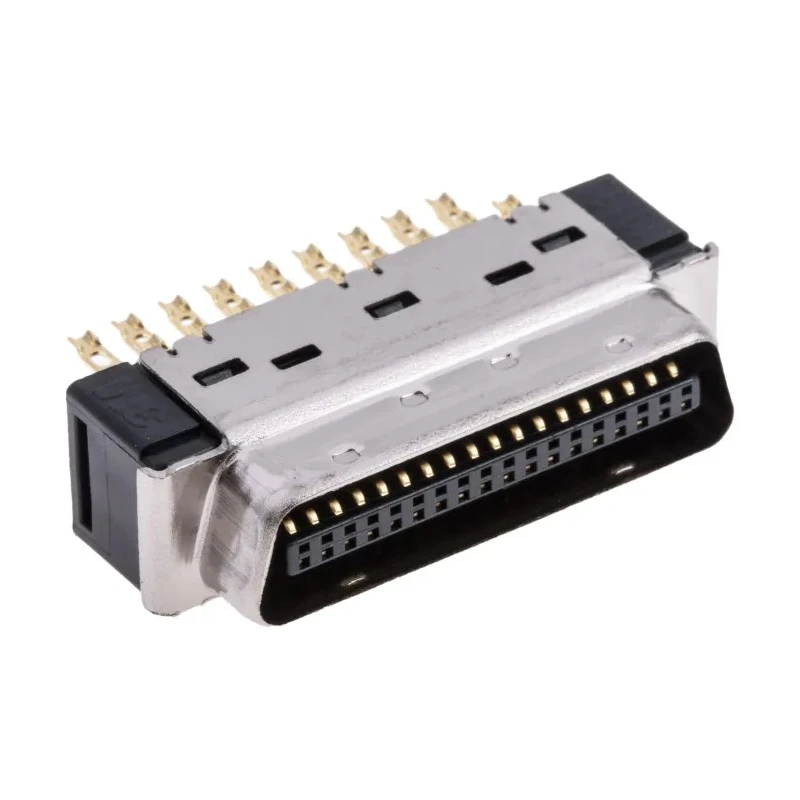

3M 36 Way Straight 2.54 mm Pitch Cable D-Sub Connector Male 10136-3000PE
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | 3M |
| Orientation | Straight |
| Current | 1A |
| Model | 10136-3000PE |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | 101 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Connector Gender | Male |
| 3M 101 36 Way Straight 1.27 mm Pitch Cable D-Sub Connector, with Wire MaleBrand | 3M |
| 36WAY SOLDER PLUGBrand | 3M |
Key Features
- Features 36 contacts suitable for high-density connections.
- Supports a current rating of 1A, ideal for various electronic signals.
- Constructed with a steel housing for durable protection.
- Gold over nickel plating ensures excellent conductivity and corrosion resistance.
- Operates within a temperature range of -55°C to 105°C for versatile use.
- Designed with a straight orientation for cable mount applications.
- Compatible with solder termination type for secure wiring connections.
- Manufactured in Japan, ensuring high build quality standards.
Product Description
3M 10136-3000PE 36 Way Straight 2.54 mm Pitch Cable D-Sub Connector Male is a high-quality Mini Delta Ribbon (MDR) wiremount connector designed for demanding electronic and industrial environments. Featuring a robust steel housing and gold over nickel plated copper alloy contacts, this connector guarantees reliable and secure connections.
The connector supports a 1 amp current rating and operates reliably in temperatures from -55°C to 105°C, making it suitable for use in medical equipment, industrial computers, and other heavy-duty electronic systems. Its straight cable mount design with solder termination facilitates easy and durable wiring configurations.
Features 36 gold over nickel plated contacts for superior conductivity. Steel housing provides mechanical protection in harsh environments. Wide operating temperature range enables use in diverse climates and applications.
Cable mount type allows direct integration with wiring harnesses. Compatible with solder cup terminations for strong mechanical and electrical connection. Conforms to MIL-G-45204 standards ensuring military-grade reliability.
Ideal for industrial computing, hospital equipment, and automation systems. Mini Delta Ribbon (MDR) design supports high density I/O applications with a 2.54 mm pitch.
This 3M D-Sub Connector is a trusted solution where reliable, repeatable, and high-performance connections are essential. Its engineering makes it suitable for complex industrial, manufacturing, laboratory, and commercial electronic applications.
Explore more connectors and cable solutions in the Electronics & Electricals category at EnvMart for your next project or repair.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1A, making it suitable for various electronic signals.
This model operates reliably within a temperature range of -55°C to 105°C.
The connector features 36 contacts, designed for high-density connections.
It has a steel housing for mechanical protection and gold over nickel plating on the contacts for excellent conductivity and corrosion resistance.
It is compatible with solder termination type, facilitating secure wiring connections.
This model is designed with a straight orientation for cable mount applications.
It is manufactured in Japan, ensuring high build quality standards.
The contacts are designed with a pitch of 2.54 mm, suitable for high-density I/O applications.
It is ideal for use in medical equipment, industrial computers, and automation systems.
The housing is constructed from steel, providing durable protection in harsh environments.
This D-Sub connector is a male connector, designed for male connections.
It conforms to MIL-G-45204 standards, ensuring military-grade reliability.
