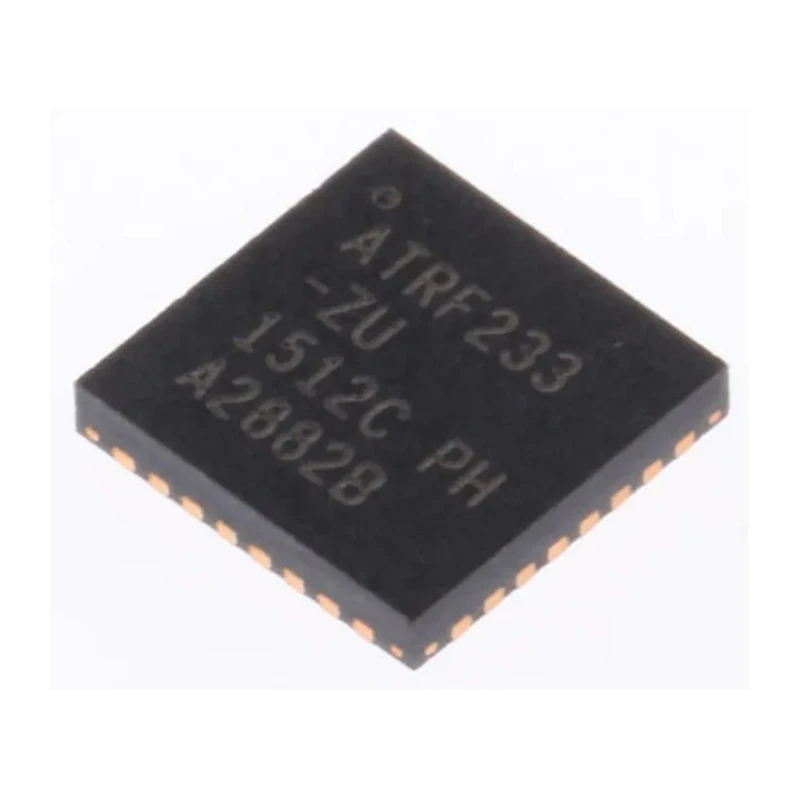

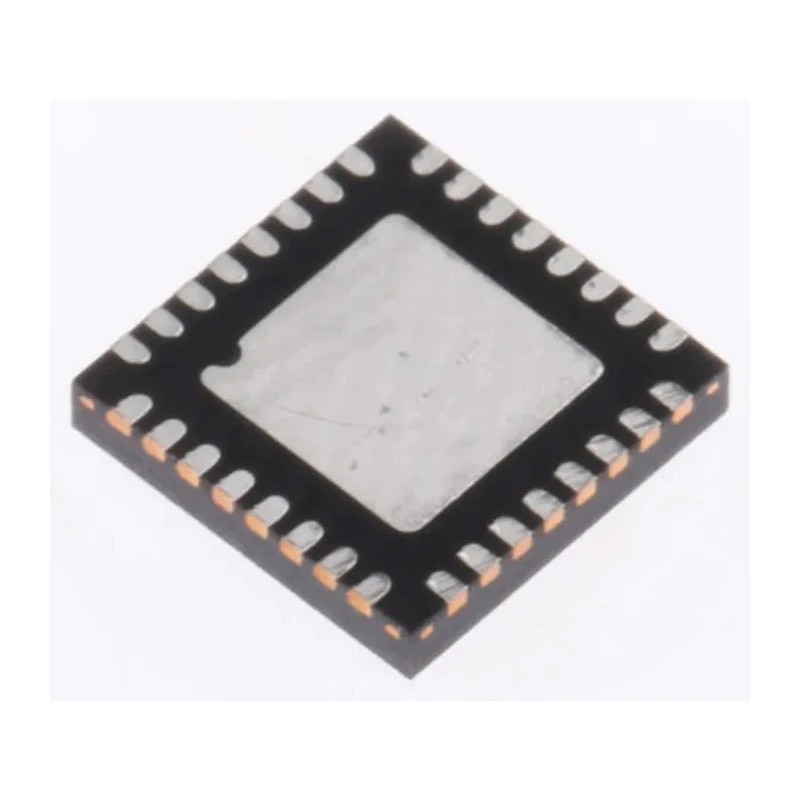

Microchip ZigBee Transceiver IEEE 802.15.4, 2.4GHz, 32-Pin QFN, SPI Interface, 1.8V to 3.6V Supply AT86RF233-ZU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 5mm |
| Model | AT86RF233-ZU |
| Technology | IEEE 802.15.4 |
| Width | 5mm |
| Mount Type | Surface |
| Series | AT86RF231-ZU |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| RF Frequency Range | 2405 to 2480MHz |
| Receiver Sensitivity | -101dBm @ 250kbps, 1% PER |
| Interface Type | SPI |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Host communication | serial SPI |
| Modulation Technique | O-QPSK |
| Modulation | O-QPSK with 2000kchip/sec DSSS |
| OTA Data Rate | up to 2Mbps |
| Operating Band 1 Frequency | 2527MHz |
| Operating Band 2 Frequency | 2480MHz |
| Number of Operating Bands | 2 |
| Microchip AT86RF233-ZU, Zigbee Transceiver 2.32GHz to 2.5GHz 32-Pin QFNBrand | Microchip |
Key Features
- Operates in two bands within 2.405 to 2.48 GHz frequency range supporting IEEE 802.15.4 standards.
- Supports high data rate communication up to 2 Mbps with O-QPSK modulation technique.
- Features SPI interface for efficient host communication and easy integration.
- Operates with a supply voltage range from 1.8 V to 3.6 V ensuring low power consumption.
- Compact QFN package with 32 pins measuring 5mm x 5mm x 1mm suitable for surface mount applications.
- Wide operating temperature range from -40°C to 85°C for diverse environmental conditions.
- Includes security features such as AES-128 encryption and True Random Number Generator for secure communications.
- Designed for applications including home automation, lighting systems, wireless sensor networks, and IoT local communication.
Product Description
Microchip AT86RF233-ZU is a precision ZigBee transceiver integrated circuit operating in the 2.4 GHz band. It supports IEEE 802.15.4 compliant protocols and delivers data rates up to 2 Mbps using O-QPSK modulation, making it highly efficient for wireless industrial and consumer applications.
This device comes in a 32-pin QFN surface mount package measuring 5 mm by 5 mm with a height of 1 mm, optimized for compact PCB designs requiring low power consumption. It operates on a voltage supply ranging from 1.8 V to 3.6 V and supports two key operating frequency bands around 2.527 GHz and 2.480 GHz.
Featuring SPI host communication interface, the transceiver offers easy serial data exchange for embedded system integration. It supports advanced features such as frequency hopping spread spectrum (FHSS), automated acknowledgements, and carrier sense multiple access with collision avoidance (CSMA-CA) to ensure robust wireless connectivity.
The chip also integrates AES-128 encryption for secure data transmission and a True Random Number Generator (TRNG) aiding in cryptographic operations. It includes a 128-byte Tx/Rx FIFO for efficient data buffering and good receiver sensitivity at -101 dBm (@ 250 kbps).
Operating temperature range extends from -40°C to 85°C, enabling functionality across a broad spectrum of industrial and environmental conditions. Operates within RF frequency range of 2405 to 2480 MHz. Maximum RF output power up to +4 dBm (AT86RF233 series).
Supports frequency hopping and channel assessment features. Optimized for applications such as home automation, lighting control, wireless sensor networks and Internet of Things local communication. Fully RoHS compliant with multiple international certifications including ETSI, FCC, ARIB, and IEEE 802.15.4 harmonized standards.
This Microchip transceiver is ideal for developers and manufacturers engaged in creating reliable and secure wireless communication modules in industrial automation, building management systems, and commercial IoT solutions. Its compact footprint and versatile operating parameters make it a valuable component for a variety of wireless RF designs.
Explore more in Semiconductor and RF IC categories on EnvMart for advanced wireless component needs.
Explore more products in our RF Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within the RF frequency range of 2405 to 2480 MHz, supporting two key operating bands at 2527 MHz and 2480 MHz.
It supports high data rate communication of up to 2 Mbps using the O-QPSK modulation technique.
The transceiver operates with a supply voltage ranging from 1.8 V to 3.6 V.
It comes in a compact 32-pin QFN package measuring 5 mm x 5 mm x 1 mm.
The receiver sensitivity is -101 dBm at a data rate of 250 kbps with a 1% packet error rate (PER).
It features a serial SPI interface for efficient host communication and easy integration into embedded systems.
The operating temperature range extends from -40°C to +85°C, allowing functionality in diverse environmental conditions.
This unit uses O-QPSK modulation with a chip rate of 2000 kchip/sec for data transmission.
It includes AES-128 encryption for secure data transmission and a True Random Number Generator (TRNG) for cryptographic operations.
It is designed for applications including home automation, lighting systems, wireless sensor networks, and IoT local communication.
It supports advanced features such as frequency hopping spread spectrum (FHSS), automated acknowledgements, and carrier sense multiple access with collision avoidance (CSMA-CA).
Yes, it is fully RoHS compliant and adheres to multiple international certifications including ETSI, FCC, ARIB, and IEEE 802.15.4 standards.
