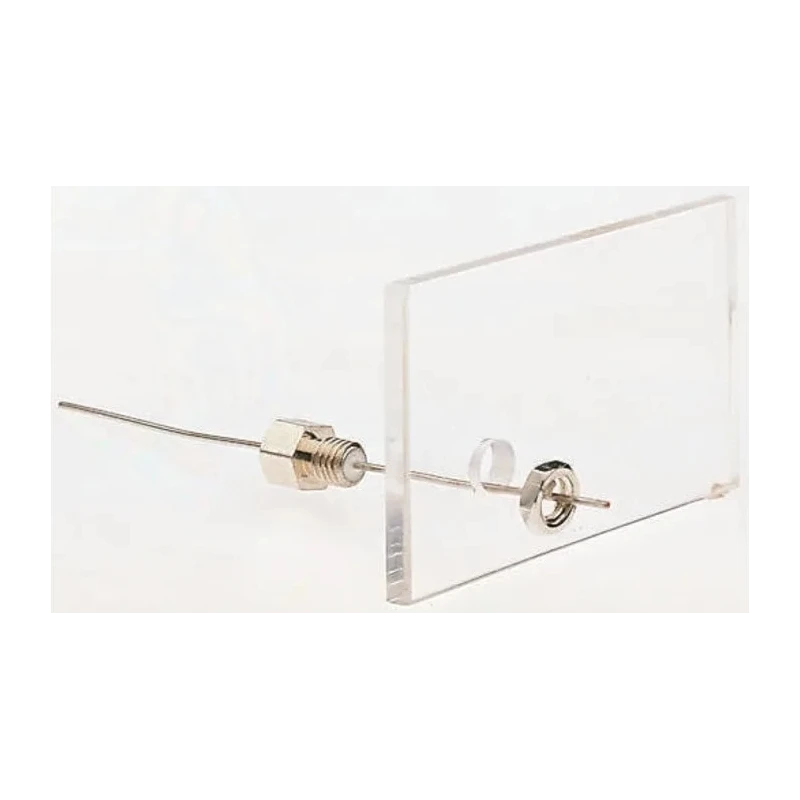

Oxley Signal Filter, Panel Mount, Axial 24.3 mm, 100V DC, 1000MHz, 10 A DLT/680

Free Delivery in India | Lowest Global Shipping Charges

Oxley Signal Filter, Panel Mount, Axial 24.3 mm, 100V DC, 1000MHz, 10 A DLT/680

Name: Oxley Signal Filter, Panel Mount, Axial 24.3 mm, 100V DC, 1000MHz, 10 A DLT/680
Brand: Oxley
SKU: 142025
Price: 29.74 USD
Availability: InStock



Category Signal Filter Brand Oxley Condition New

Specifications

Country of Origin	United Kingdom
Brand	Oxley
Length	24.3mm
Model	DLT/680
Mount Type	Panel Mount
Operating Frequency	1000MHz
Series	DLT
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Maximum Current	10A
Maximum Voltage	100V dc
Standards/Approvals	RoHS
Termination Style	Axial

Key Features

Operates at a maximum voltage of 100V DC suitable for diverse applications.
Features a maximum current rating of 10 A ensuring reliable current handling.
Operates with an effective frequency of up to 1000 MHz for high-frequency filtering.
Constructed with durable discoidal monolithic ceramic capacitors encapsulated in a rugged brass case.
Includes a 2 BA threaded fixing for secure panel mounting with axial termination style.
Designed for grounded chassis mounting to minimize interference and enhance performance.
Capacitor internally connects lead to body for optimal signal filtering.
Color-coded non-threaded end for easy identification and installation.

Product Description

Oxley DLT/680 Signal Filter is a panel-mount EMI filter designed to suppress unwanted electromagnetic interference and preserve signal integrity in various electronic equipment. It is engineered with discoidal monolithic ceramic capacitors housed within a rugged brass case, providing robust protection against noise disturbances in DC circuits up to 100V.

This signal filter supports a maximum current of 10 A and operates effectively at frequencies up to 1000 MHz, making it suitable for industrial electronics, communication systems, and power supply units where precise signal filtering is critical.

The unit incorporates a 2 BA threaded fixing mechanism and features an axial termination style with a length of 24.3 mm, allowing easy and secure panel mounting. It is designed for grounded chassis mounting to enhance EMI performance and reduce interference effects.

The capacitor is internally connected between the lead and the body, with a color-coded non-threaded end to assist correct orientation and installation. The filter operates reliably across a wide temperature range from -40°C to 85°C, enabling usage in varied environmental conditions.

This product complies with RoHS standards, reflecting its adherence to environmental and safety regulations. Manufactured in the United Kingdom, the Oxley DLT/680 is ideal for use in industrial controls, laboratory instrumentation, automotive electronics, and telecommunications sectors.

Operates at maximum 100V DC voltage ensuring high voltage tolerance. Rated for 10A maximum current suitable for demanding applications. High-frequency operation up to 1000 MHz for effective signal filtering. Durable brass encapsulation protects ceramic capacitors.

2 BA threaded fixing enables solid panel mount installation. Axial termination allows straightforward connection implementation. Wide operating temperature from -40°C to 85°C accommodates harsh environments. RoHS compliance guarantees environmentally safe design.

Manufactured in the United Kingdom, ensuring quality standards. Explore more from Oxley and related Signal Filter solutions at EnvMart for reliable electronic component sourcing.
