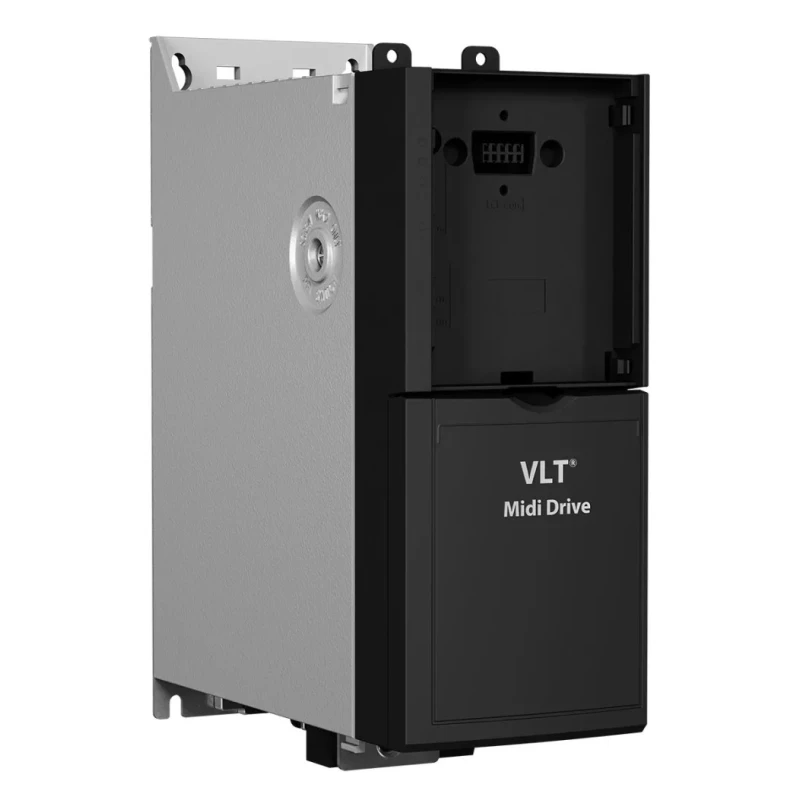

Danfoss Inverter Drive 750 W 3 Phase 400V AC Panel Mount Variable Frequency Drive FC280
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Danfoss |
| Model | FC280 |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | FC280 |
| Overall Width | 168mm |
| Power Rating | 750W |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 500Hz |
| Interfaces | USB port |
| Number of Phases | 3 |
| Maximum Output Current | 2.1A |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Overall Depth | 210mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- Compact design allows easy and fast installation and setup.
- Equipped with integrated PID controller and USB port for easy PC connection.
- Supports multiple fieldbus communication options including Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU.
- Rated IP20 with compliance to CE, cUL, EMC, RCM, TUV, and UL standards.
- Supports induction motors with output frequencies up to 500 Hz for flexible applications.
- Operates reliably up to +55°C ambient temperature.
- Includes savings on cost and space with pluggable connectors and integrated DC choke and RFI filter.
- Control panel with LCD is available separately for enhanced functionality.
Product Description
Danfoss FC280 inverter drive is a 750 W, 3 phase variable frequency drive, panel mount type, engineered for precise and efficient motor control in industrial and automation applications. The 400V AC supply operating with a max output current of 2.1 A provides strong control performance and functional safety, suitable for industrial environments.
The compact design ensures easy installation and setup. It features an integrated PID controller and USB port facilitating straightforward PC connection for configuration and maintenance tasks. Fieldbus communication options such as Profibus, Profinet with dual port, Ethernet/IP with dual port, CANopen, and Modbus RTU are supported depending on the specific model, enabling flexible integration into diverse control systems.
With an IP20 rating, the drive offers protection suitable for panel installation environments. It is compliant with international standards including CE, cUL Listed, EMC, RCM (C-Tick), TUV, and UL, ensuring reliability and safety. The inverter supports induction motors and delivers output frequencies up to 500 Hz for varied motor speed control needs.
The drive is designed for operating temperatures up to +55°C and includes features such as pluggable connectors, integrated DC choke, RFI filter, and dual-channel STO functional safety which enhance operational reliability and safety. Although delivered without a control panel, an LCD control panel is available separately for added convenience and functionality.
This Inverter Drive is ideal for industrial automation systems, manufacturing, HVAC, water treatment, and other applications demanding precise motor speed regulation and energy savings. The product is manufactured in Denmark, reflecting high-quality engineering standards.
Compact design for easy installation and setup. Integrated PID controller and USB connectivity. Multiple fieldbus communication protocols supported. Compliance with key international safety and performance standards. High output frequency range for detailed motor control.
Robust operation up to +55°C ambient temperature. Includes safety features such as dual-channel STO. Separate control panel with LCD available. Discover more Danfoss automation and control solutions at EnvMart for reliable and energy-efficient industrial drives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Danfoss FC280 inverter drive has a power rating of 750 W.
This model supports a maximum output frequency of 500 Hz.
The FC280 is compatible with induction motors.
The overall dimensions of the Danfoss FC280 inverter drive are 75 mm in length, 168 mm in width, and 210 mm in depth.
The maximum operating temperature for this unit is +55°C.
It features a USB port for easy PC connection and supports multiple fieldbus communication options including Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU.
The Danfoss FC280 has an IP rating of IP20, suitable for panel installation environments.
This inverter drive complies with several standards including CE, cUL Listed, EMC, RCM (C-Tick), TUV, and UL.
The maximum output current of this model is 2.1 A.
No, the Danfoss FC280 is delivered without a control panel, but an LCD control panel is available separately.
The FC280 is designed for panel mounting, which allows for easy installation and setup.
The Danfoss FC280 is manufactured in Denmark.
