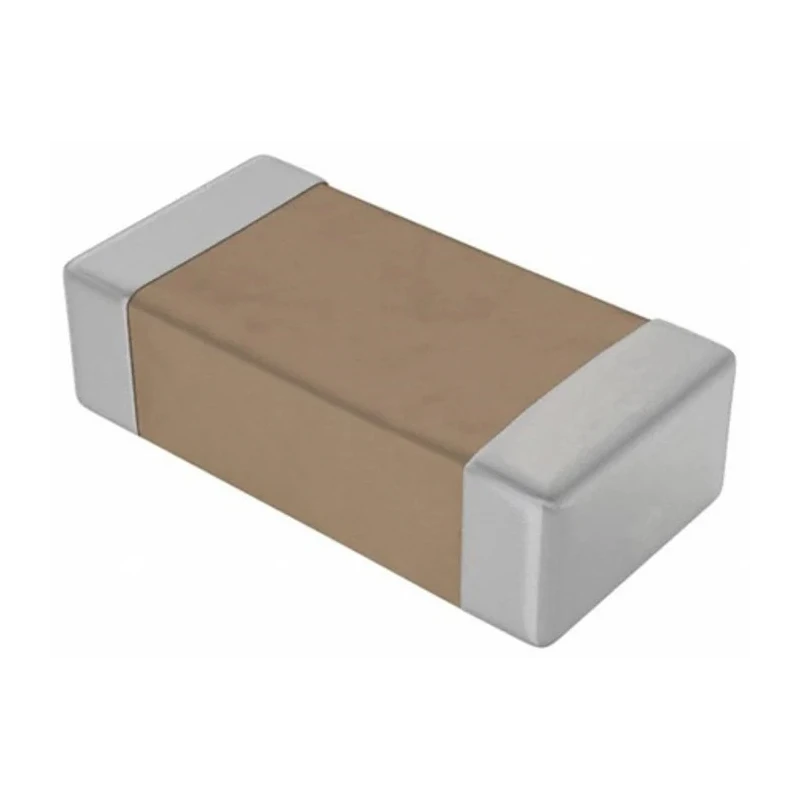

KYOCERA AVX 2.2 nF Multilayer Ceramic Capacitor, 100V dc, ±5 % Tolerance, Surface Mount 12061A222JAT2A

KYOCERA AVX 12061A222JAT2A is a 2.2 nF Multilayer Ceramic Capacitor designed for use in electronic circuits requiring stable capacitance and reliable surface mount mounting.

This capacitor operates at a DC voltage rating of 100V with a tight ±5% tolerance, utilizing the C0G (NPO) dielectric known for its extremely stable capacitance over a wide temperature range from -55°C to +125°C. The device offers a capacitance variation of less than ±0.3% from -55°C to +125°C, making it ideal for precision applications.

The 1206 package size with dimensions of 3.2 mm length, 1.6 mm width, and 1.52 mm height is compatible with standard surface mount technology (SMT) assembly lines, supplied on reels for efficient PCB manufacturing processing.

Designed primarily as a Class I capacitor, this part is well suited for applications requiring temperature compensation and stability, such as filtering, timing circuits, and resonators in consumer electronics, communication devices, and industrial instrumentation.

This capacitor is part of the KGM series by KYOCERA AVX and does not meet automotive standard specifications, and it is suitable for use in laboratory setups, industrial electronic equipment, and commercial electronic manufacturing environments.

This capacitor uses a stable C0G dielectric ensuring minimal capacitance variation. Packaging is supplied on reel suited for automated assembly. Operating temperature ranges from -55°C to 125°C, suitable for demanding environments.

Size/package case is 1206 with dimensions 3.2 mm length, 1.6 mm width, and 1.52 mm height. It features Class I suppression class and surface mount termination for compact PCB designs. The series designation is KGM with a ±5% capacitance tolerance.

Automotive standard compliance is not applicable for this part. Explore more Multilayer Ceramic Capacitors from KYOCERA AVX at EnvMart for your electronic component needs.
