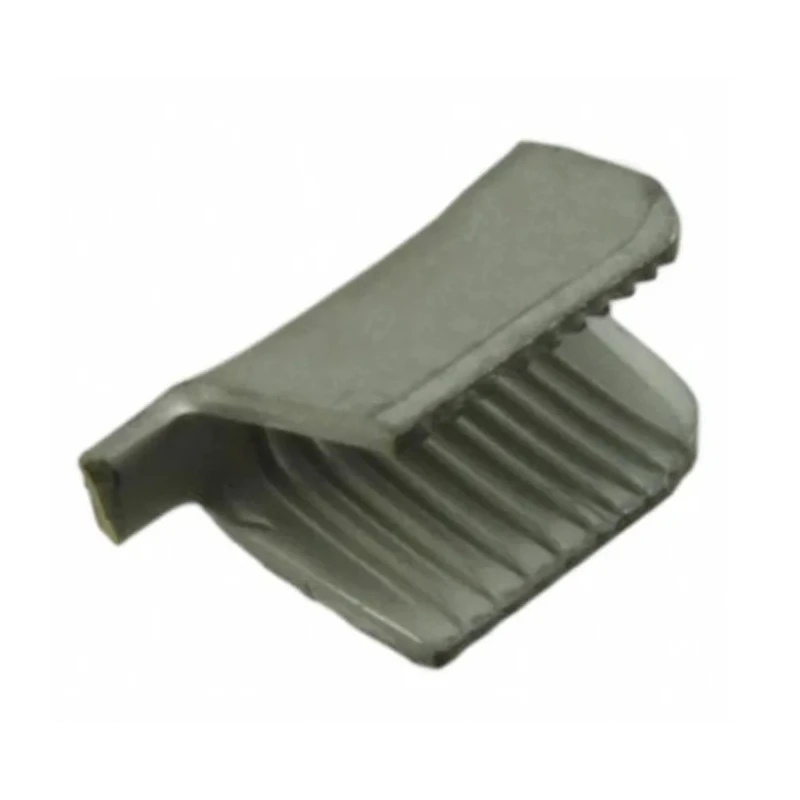

TE Connectivity 282 Pigtail Splice Connector Uninsulated Tin 18.5 AWG 0.8 mm² Crimp 8mm 0.41mm Thickness 2825180-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 282 Pigtail Splice Connector Uninsulated Tin 18.5 AWG 0.8 mm² Crimp 8mm 0.41mm Thickness 2825180-2

Name: TE Connectivity 282 Pigtail Splice Connector Uninsulated Tin 18.5 AWG 0.8 mm² Crimp 8mm 0.41mm Thickness 2825180-2
Brand: TE Connectivity
SKU: 142536
Price: 0.06 USD
Availability: InStock



Category Splice Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
THICKNESS	0.41mm
Insulation	Uninsulated
Overall Length	8mm
Contact Material	Brass
Series	282
Termination Type	Crimp
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	0.26mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18.5AWG
Splice Type	Pigtail

Key Features

The splice type is pigtail with a compact overall length of 8mm.
It supports wire sizes from 24 AWG (0.26 mm²) up to 18.5 AWG (0.8 mm²).
Constructed from brass with tin-plated contacts for corrosion resistance.
Termination is by crimping, ensuring high tensile strength and vibration resistance.
Connector thickness is 0.41mm, optimized for durability and performance.
Insulation displacing serrations eliminate the need to pre-strip magnet wires.
Suitable for terminating up to three magnet wires plus a lead wire simultaneously.
Widely used in motor windings, coil connections, transformer windings, lighting ballasts, power supplies, starters, and alternators.

Product Description

TE Connectivity 2825180-2 Pigtail Splice Connector is an uninsulated, tin-plated crimp splice designed for terminating copper and aluminum magnet wires with superior electrical connection quality. It features insulation displacing serrations in the barrel to pierce insulation without pre-stripping, ensuring high tensile strength and vibration resistance.

The contact is made of brass with tin plating to resist corrosion, and the connector has a thickness of 0.41mm and an overall length of 8mm. It accommodates wire sizes ranging from 24 AWG (0.26 mm²) to 18.5 AWG (0.8 mm²), supporting up to three magnet wires plus a lead wire in a single crimp.

This splice connector is ideal for industrial and commercial applications including motor windings, coil connections, transformers, lighting ballasts, power supplies, and alternators. It produces contaminant-free, high-quality electrical joints that are free from solder flux and stripper residues.

The splice type is pigtail with a compact overall length of 8mm. Supports wire sizes from 24 AWG (0.26 mm²) to 18.5 AWG (0.8 mm²). Brass contact material with tin plating for corrosion resistance. Crimp termination for robust mechanical and electrical connection.

Connector thickness of 0.41mm for durability. Insulation displacing serrations eliminate wire pre-stripping. Capable of crimping up to three magnet wires plus a lead wire simultaneously. Applications include motor windings, coil connections, transformers, lighting ballasts, power supplies, starters, and alternators.

Compliance with RoHS environmental standards.

This product is part of TE Connectivity’s AMPLIVAR series, known for reliable performance in demanding industrial electrical connections. Explore the full selection of Splice Connectors on EnvMart for comprehensive wiring solutions.
