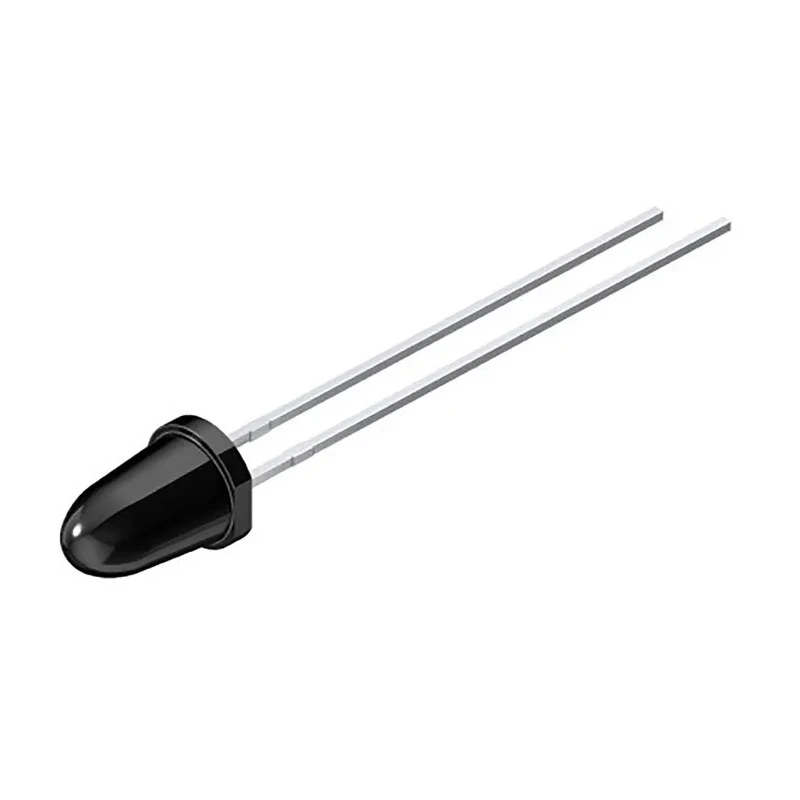

ams OSRAM 950 nm Infrared LED 5 mm (T-1 3/4) Through Hole Package SFH 4545-DWEW
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | ams OSRAM |
| Model | SFH 4545-DWEW |
| Mount Type | Through Hole |
| Number Of Leds | 1 |
| Package Type | 5 mm (T-1 3/4) |
| Standards/Approvals | IEC 62471:2006, ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC60810 |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Maximum Supply Voltage | 12V |
| Peak Wavelength | 950nm |
| Radiant Flux | 55mW |
| Angle of half intensity | 5° |
| Radiant Intensity | 4200mW/sr |
| Standards/ApprovalsIEC 62471 | 2006, ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC60810 |
| IEC 62471 | 2006, ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC60810 |
Key Features
- Emits infrared light at a peak wavelength of 950 nm.
- Compact 5 mm dome lens ensures precise optical output.
- Radiant flux of 55 mW supports strong light emission.
- Radiant intensity rated at 4200 mW/sr for concentrated brightness.
- Low angle of half intensity of 5 degrees for focused beam applications.
- Simple through hole mounting style for easy PCB integration.
- Operates at a maximum supply voltage of 12 V.
- Constructed with 1 LED and 2 pins for electrical connection.
Product Description
ams OSRAM SFH 4545-DWEW is a high-performance infrared LED that emits light at a peak wavelength of 950 nm. It features a compact 5 mm T-1 3/4 dome-shaped lens, providing a focused and concentrated infrared light output suitable for various electronic and optoelectronic applications.
This device is designed for through-hole mounting, facilitating PCB assembly and ensuring secure mechanical and electrical connection. It delivers a radiant flux of 55 mW and a radiant intensity of 4200 mW/sr, with a narrow half intensity angle of 5°, making it ideal for applications requiring directional IR illumination.
The LED is rated for a maximum supply voltage of 12 V, allowing it to operate efficiently within standard low-voltage circuits. The product complies with stringent safety and reliability standards including IEC 62471:2006 and ANSI/ESDA/JEDEC JS-001 (HBM Class 2), ensuring protection against optical hazards and electrostatic discharge.
Manufactured in Malaysia, this infrared LED offers a robust solution for industrial, commercial, and electronic components manufacturing applications, including infrared sensing, remote controls, and communication systems.
Emits infrared light at 950 nm peak wavelength. 5 mm dome lens in T-1 3/4 package for focused light output. Through-hole mount for easy PCB integration. Maximum supply voltage is 12 V ensuring operational safety. Complies with IEC 62471:2006 and HBM Class 2 safety standards.
Constructed with 1 LED and 2 pins for connections. Radiant flux of 55 mW delivers bright IR emission. Radiant intensity of 4200 mW/sr with a narrow beam angle. Ideal for use in industrial and electronic component assemblies.
Explore more from ams OSRAM and similar IR LEDs in the Electronics & Electricals category at EnvMart for reliable sourcing and technical excellence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The infrared LED emits light at a peak wavelength of 950 nm.
This model operates at a maximum supply voltage of 12 V.
It has a radiant flux of 55 mW, providing strong light emission.
The radiant intensity is rated at 4200 mW/sr, which indicates concentrated brightness.
The angle of half intensity is 5°, allowing for focused beam applications.
It is constructed with 2 pins for electrical connection.
This infrared LED features a through-hole mounting style for easy PCB integration.
It has a dome-shaped lens, which helps in providing a focused optical output.
It complies with IEC 62471:2006 and ANSI/ESDA/JEDEC JS-001 (HBM Class 2) safety standards.
This infrared LED is manufactured in Malaysia.
It is suitable for various electronic and optoelectronic applications, including infrared sensing and remote controls.
The package type is 5 mm (T-1 3/4), which is compact and suitable for various installations.
