| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HS12NJ02D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.012μH |
| Package/Case | 1005 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 280mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3000MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

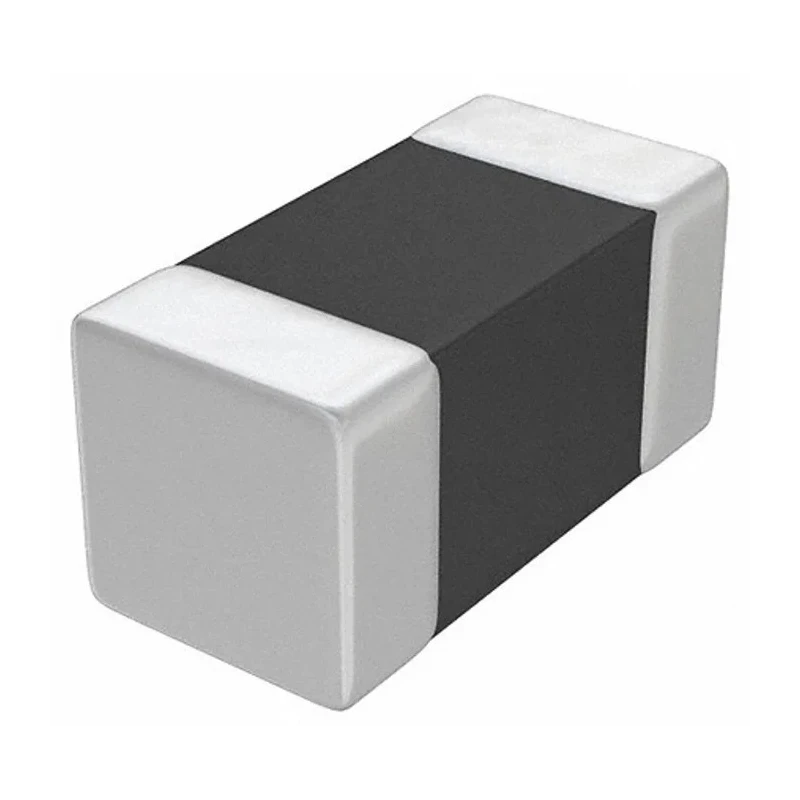

Murata LQG15HS12NJ02D is a wirewound surface mount inductor designed to offer high performance in compact 1005 package size. Featuring an inductance of 0.012μH, it supports a maximum DC current of 300mA with a maximum DC resistance of 280mΩ. The non-magnetic ceramic core and multilayer construction balance size, current capacity, and tolerance, making it suitable for high-frequency circuits such as WLAN networks, RF circuit matching, and mobile communications.
This inductor provides stable operation across a wide temperature range from -55°C to 125°C, with a minimum quality factor of 8 and a self-resonant frequency reaching 3000MHz. The solder termination style and moulded design offer reliability and ease of mounting on surface mount technology (SMT) printed circuit boards. Packaged on paper tape reels, it facilitates efficient manufacturing processes.
Its non-shielded design allows for optimized inductive performance where shielding is not required. This inductor has a 1005 package size with multilayer construction for high-frequency stability. Non-magnetic ceramic core enhances reliability and performance.
Inductance tolerance of ±5% allows for precise circuit tuning. Maximum DC current of 300mA with low DC resistance of 280mΩ. Wide operating temperature from -55°C to 125°C suits various environments. Moulded, solder termination type supports robust PCB mounting.
Maximum self-resonant frequency of 3000MHz supports RF applications. Paper tape packaging improves assembly efficiency in manufacturing. Manufactured in Japan ensuring high quality and consistency.
Ideal for use in industrial electronics, telecommunications equipment, mobile devices, and consumer electronics, this Murata surface mount inductor combines precision, performance, and reliability. For further Surface Mount Inductors and electronic components, explore our extensive EnvMart catalog.
