Recom Enclosed 1 Output LED Driver with 35V DC Output Voltage, 10.5W Power, 1200mA and 300mA Current, PWM Dimming IP67
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Wire |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | LIGHTLINE |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Maximum Output Power | 10.5W |
| Input Voltage | 36V dc |
| Output Voltage | 35V dc |
| Power Dissipation | 800mW |
| Standards/Approvals | EN55022 Class B, CSA C22.2 No 60950-1-03, EN-50121-3-2, EN61000-4-3 Class A, EN61000-4-6 Class A, EN61373, RoHS 2011/65/EU, UL-60950-1, EN-60950-1, EN61000-4-2 Class A, EN61000-4-4 Class A |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Driver Current | 1200, 300mA |
| Recom IP67 1 Output LED Driver, 35V dc PWMBrand | Recom |
| Recom IP67 1 Output LED Driver, 2V, 35 V, 10.5 W, 300mA PWM LED DriverBrand | Recom |
Key Features

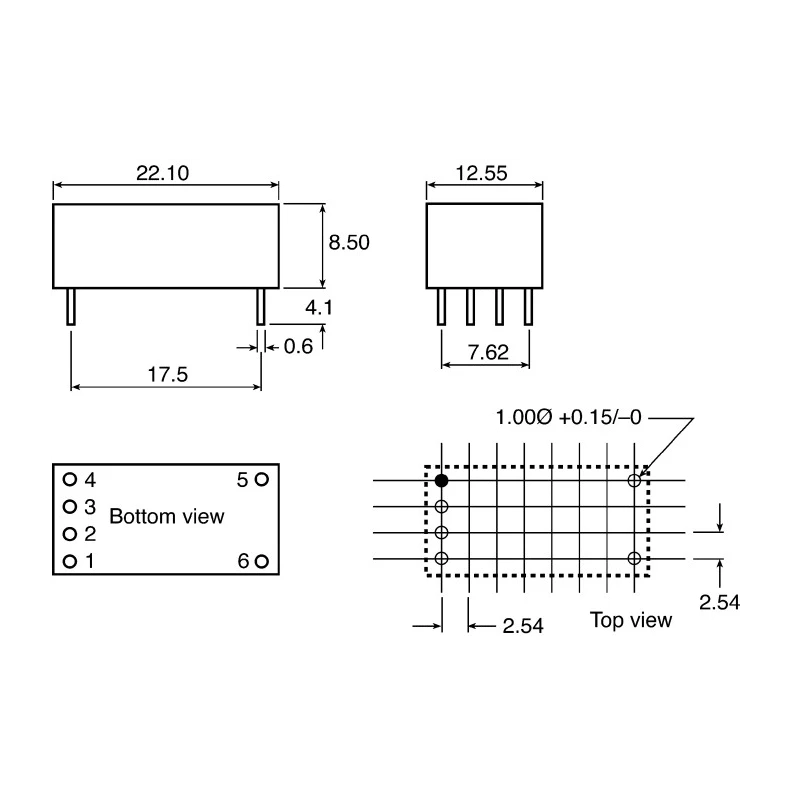

- Compact wire mount design sized 22.1 x 12.6 x 8.5 mm for discreet installation.
- High efficiency up to 96% for minimal heat production.
- Rated IP67 for reliable operation in demanding environments.
- Compatible with analogue voltage and digital PWM dimming signals.
- Operating temperature range from -40°C to +85°C.
- Meets multiple standards and approvals including EN55022 Class B and RoHS compliant.
- Ideal for aircraft lighting, underwater lighting, and computer displays.
Product Description
Recom RCD-24-0.30 is a high-performance, enclosed LED driver designed for precise power delivery in LED lighting systems. It provides a regulated output voltage of 35V DC with a maximum output power of 10.5W. The driver offers selectable constant current outputs of 1200mA and 300mA and supports both analogue voltage and PWM dimming operations, allowing flexible light level control tailored to diverse applications.
Its compact dimensions (22.1 mm length, 12.6 mm width, 8.5 mm height) enable integration into a variety of setups without compromising space. The wire mounting facilitates straightforward installation and secure placement.
The device demonstrates an energy-efficient design with up to 96% efficiency, minimizing thermal losses and ensuring long-lasting reliable operation. Rated with an IP67 ingress protection, it is robust against moisture and dust, suitable for harsh or demanding conditions such as underwater lighting and outdoor aerospace applications.
Operating reliably between -40°C and +85°C, this LED driver complies with multiple international standards, including EN55022 Class B electromagnetic compatibility and UL safety certifications, ensuring it meets rigorous quality and safety requirements.
Compact IP67 rated enclosed LED driver for single output applications. Supports 35V DC output voltage and 10.5W maximum power. Dimming options include PWM and analogue voltage signals. High efficiency up to 96%, reducing heat generation.
Operating temperature range from -40°C to +85°C for extreme environments. Certifications include EN55022 Class B, UL-60950-1, and RoHS compliance. Applications cover aircraft lighting, underwater lighting, and computer displays.
This product is ideal for industrial, commercial, and specialized lighting systems requiring high-quality LED driver solutions. Explore the range of electronic components and LED Drivers available on EnvMart for reliable and efficient lighting control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 10.5W.
This model provides a regulated output voltage of 35V DC.
The driver has an efficiency rating of up to 96%, minimizing heat production.
This driver supports both PWM and analogue voltage dimming operations.
The operating temperature range is from -40°C to +85°C.
The LED driver is rated IP67, making it suitable for demanding environments.
The dimensions of this model are 22.1 mm in length, 12.6 mm in width, and 8.5 mm in height.
This driver uses a wire mounting type for installation.
It meets multiple standards including EN55022 Class B, UL-60950-1, and RoHS compliance.
This model is suitable for applications such as aircraft lighting, underwater lighting, and computer displays.
The input voltage for this driver is 36V DC.
