RS PRO Circular Connector, 3 Contacts, Cable Mount M12 Plug, Male, IP67, Solder Termination 124-6744
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 13A |
| Model | 124-6744 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Mating Type | Push Pull |
| Connector Size | M12 |
| Plug/Socket | Plug |
Key Features
- Features a sturdy chrome plated brass housing with gold-plated brass contacts for high durability.
- Provides a secure push-pull mating mechanism for waterproof connectivity up to IP67 standards.
- Supports a rated current of 13A and voltage of 250V with solder termination type.
- Operates within a temperature range of -40°C to +85°C for reliable performance in harsh environments.
- Designed for a 12mm panel cut-out and accepts cables from 4 to 8 mm diameter.
- Suitable for industrial automation, process control, marine equipment, sensors, and medical instrumentation.
- Manufactured in China ensuring consistent quality for industrial connector needs.
Product Description

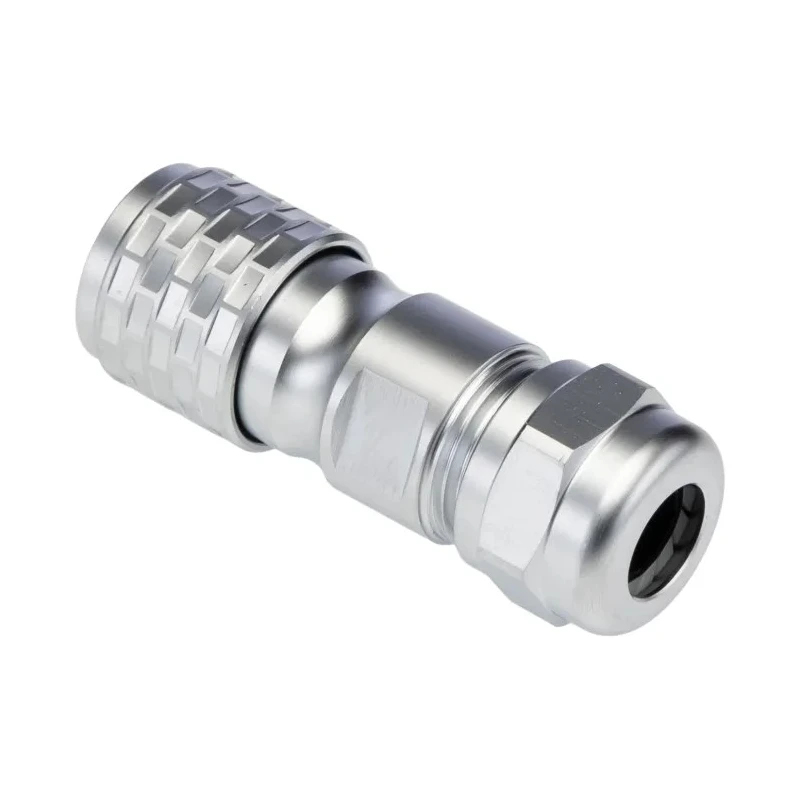

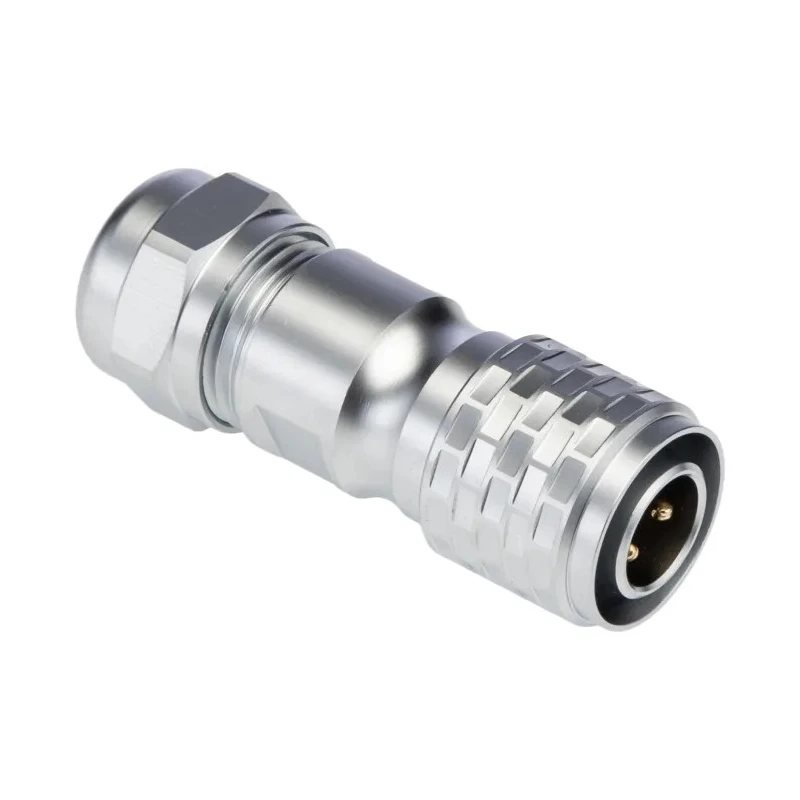

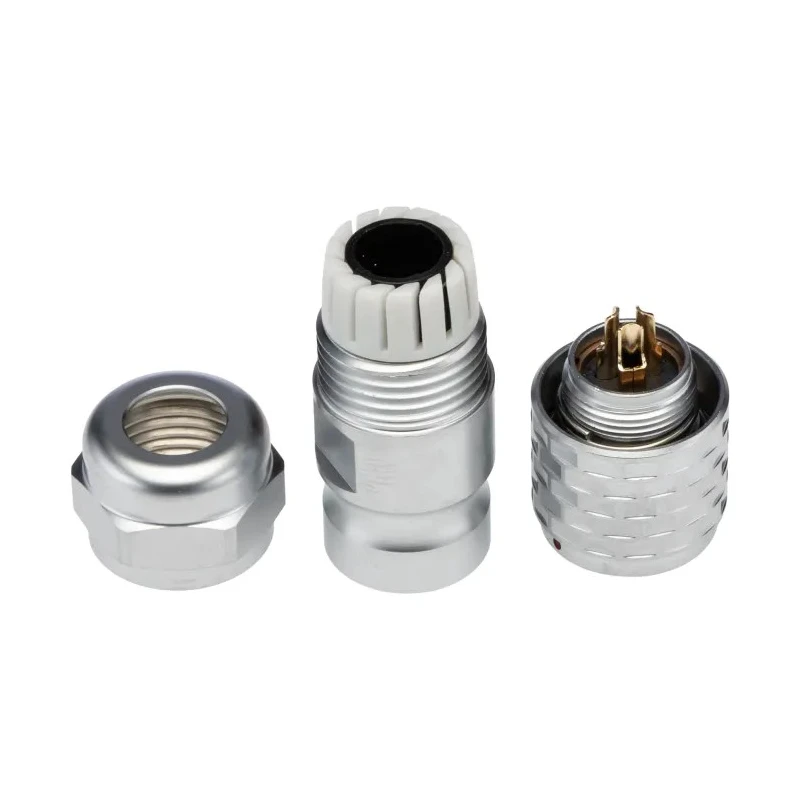

RS PRO 124-6744 is a 3-contact male circular connector designed for cable mounting, featuring an M12 connector size with a push-pull mating type and IP67 ingress protection. It operates at 250V, supports a rated current of 13A, and has a temperature operating range from -40°C to +85°C. The connector's housing is chrome plated brass with gold-plated brass contacts ensuring robust electrical connections. This connector utilizes solder termination for cable attachment and a straight orientation for easy installation.
This IP67-rated connector provides a watertight and dustproof connection, suitable for harsh industrial environments including factory automation, process control, marine equipment, sensors, medical equipment, and laboratory instrumentation. Its push-pull mating mechanism secures the connection with a knurled locking collar for semi-fixed or cable-to-cable configurations.
Designed to accommodate cables with diameters ranging from 4 to 6.5 mm or 4 to 8 mm, it fits a 12 mm panel cut-out and supports industrial applications that demand high reliability under challenging conditions.
Sturdy chrome plated brass shell construction. Gold-plated brass contacts for optimal conductivity. Push-pull mating mechanism for simple connection and disconnection. Rated current of 13A and voltage of 250V. Wide operating temperature range from -40°C to +85°C.
Solder termination suitable for secure cable attachment. IP67 ingress protection for water and dust resistance.
The connector conforms to RS PRO's high standards for Industrial Circular Connectors, making it reliable for electronic, test and measurement, and automation industries. Its robust build and waterproof design enable durability in demanding settings.
This product is manufactured in China and maintains RS PRO's commitment to quality. It is part of the RS PRO RS series of connectors recognized for industrial strength and versatility.
Explore the full range of RS PRO industrial connectors and associated components in the Electronics & Electricals category at EnvMart for your electronic and industrial connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a rated current of 13A and a voltage of 250V.
It has an IP67 ingress protection rating, providing waterproof and dustproof connectivity.
The connector operates within a temperature range of -40°C to +85°C.
The housing is made of chrome plated brass, and the contacts are gold-plated brass for optimal conductivity.
It utilizes solder termination for secure cable attachment.
This model is designed for a 12mm panel cut-out.
It features a push-pull mating mechanism for secure connections.
It accepts cables with diameters ranging from 4 to 8 mm.
This model has 3 contacts.
It is suitable for industrial automation, process control, marine equipment, sensors, and medical instrumentation.
The connector has a straight orientation for easy installation.
This connector is manufactured in China, ensuring consistent quality for industrial needs.
