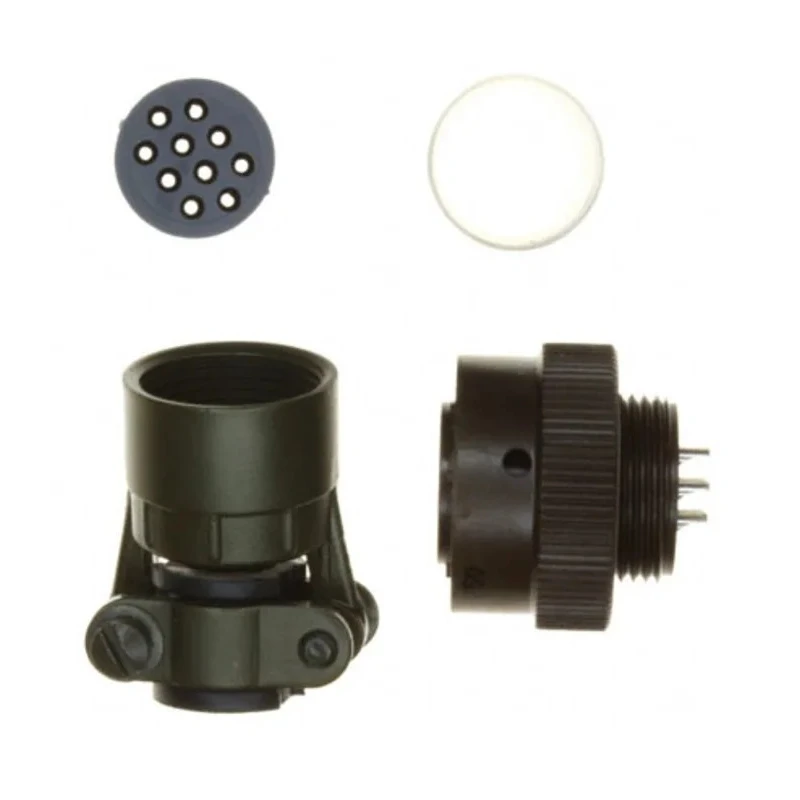

Souriau Sunbank by Eaton MIL Spec Circular Connector 10 Way Copper Alloy Straight Cable Male 7.5A 200V AC 85106EC1210P50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 200V ac |
| Brand | Souriau Sunbank by Eaton |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85106EC1210P50 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 124-6002Brand: Souriau Sunbank by EatonManufacturers Part No.: 85106EC1210P50 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 12 |
| Military Standard | MIL-C-26482 G Series I |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Cadmium |
Key Features
- This connector supports a current rating of 7.5A and an operating voltage of 200V AC.
- It features a bayonet mating type with male contact and connector genders.
- The connector shell size is 12 and is constructed from lightweight aluminium alloy housing.
- Operating temperature ranges from -55°C to 125°C, suitable for harsh environments.
- Contact plating is gold and shell plating is cadmium, ensuring excellent corrosion resistance.
- The orientation is straight and it complies with MIL-C-26482 G Series I military standard.
- Its colour is green to aid identification and it utilizes solder termination types for secure connections.
- Designed for industrial, military, aviation, robotics, and factory automation applications.
Product Description
Souriau Sunbank by Eaton 85106EC1210P50 MIL Spec Circular Connector with 10 contacts provides a copper alloy construction for superior conductivity and durability. The connector is designed for cable mounting in a straight orientation with a bayonet coupling mechanism that ensures secure and reliable electrical connections.
Rated for 7.5A current and 200V AC voltage, this connector accommodates demanding environments with an operating temperature range between -55°C and 125°C. It meets the MIL-C-26482 G Series I military standard, making it suitable for civil and military aviation, ground army use, robotics, factory automation, machine tools, and medical equipment.
The aluminium alloy housing and green colouring offer lightweight ruggedness and ease of identification. Gold plating on the contacts and cadmium plating on the shell enhance corrosion resistance and long-term electrical performance. Termination is by soldering, providing a permanent, high-quality connection.
The 851 Series connectors from Souriau Sunbank by Eaton feature sealed and hermetic variants, wide body style options, and multiple termination methods including solder and crimp. Their compact and lightweight design ensures compatibility with a wide range of industrial and military-grade electrical systems.
This connector supports a current rating of 7.5A and an operating voltage of 200V AC. Bayonet mating type with secure mechanical coupling. Gold-plated copper alloy contacts improve conductivity and corrosion resistance. Lightweight aluminium alloy shell plated with cadmium.
Wide operating temperature range of -55°C to 125°C. Compliant with MIL-C-26482 G Series I military standard. Designed for demanding industrial, aviation, military, and automation applications. Available in a 10-contact male straight cable connector configuration.
Manufactured in France to high European quality and reliability standards. Explore the complete range of Mil Spec Circular Connectors and related components on EnvMart for precision applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7.5A.
It is rated for an operating voltage of 200V AC.
It features a bayonet mating type for secure mechanical coupling.
The operating temperature range is from -55°C to 125°C.
The housing is made from aluminium alloy, and the contacts are copper alloy with gold plating.
The shell size of this connector is 12.
This model has 10 contacts.
It utilizes solder termination types for secure connections.
Yes, it complies with the MIL-C-26482 G Series I military standard.
The connector is green, which aids in identification.
It is manufactured in France.
It is designed for industrial, military, aviation, robotics, and factory automation applications.
