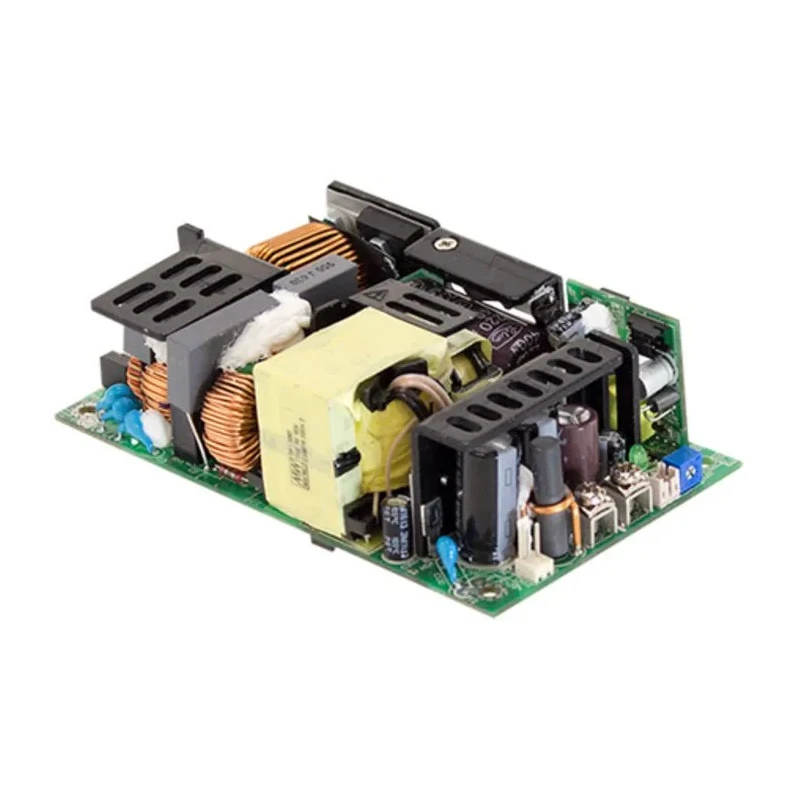

MEAN WELL RPS-400-24 Switching Power Supply 24V DC, 252W Power, Panel Mount, 9.4A Output Current RPS-400-24

MEAN WELL RPS-400-24 is a highly reliable switching power supply designed for medical and industrial applications requiring a 24V DC output at 252W power capacity. It features a panel mount form factor with a compact 127mm length, 35mm width, and depth, making it suitable for integration into equipment enclosures.

The unit supports a wide input voltage range from 80V AC minimum to 370V/264V DC maximum, ensuring versatile installation scenarios. Its 9.4A output current capacity and built-in power factor correction (PFC) function enhance performance and efficiency, with an overall efficiency reaching 93%, minimizing energy losses.

This power supply meets stringent medical safety regulations, providing 2 x MOPP isolation to protect patient-contact devices. It is suitable for Class I (with FG) and Class II (no FG) designs and certified compliant with ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, and other relevant standards. The device includes low leakage current design making it ideal for sensitive medical equipment such as oral irrigators, hemodialysis machines, medical monitors, sleep apnea devices, pump machines, and electric beds.

For thermal management, the RPS-400-24 supports free air convection cooling for units up to 250W and forced air cooling with 25CFM fan support for the 400W model with a fan output of 12V at 0.5A. It includes numerous protective features such as short circuit, overload, over voltage, and over temperature protections ensuring robust operation. Standby output at 5V is available with fan or without fan options.

An LED indicator provides clear status information. The compact size, medical approvals, and high efficiency make this switching power supply a practical choice for industrial, laboratory, medical, and commercial applications requiring dependable 24V DC power delivery.

Universal AC input with full range operation. Medical safety approved with 2 x MOPP isolation. High efficiency of 93% with built-in PFC. Wide operating temperature range from -30°C to 70°C. Compact panel mount form factor with dimensions 127x35x35 mm.

Built-in protections for reliable operation. Low leakage current for sensitive applications. Standby 5V output with fan and no-fan configurations. Certified to international medical and safety standards. Suitable for oral irrigators, hemodialysis, and medical monitors.
