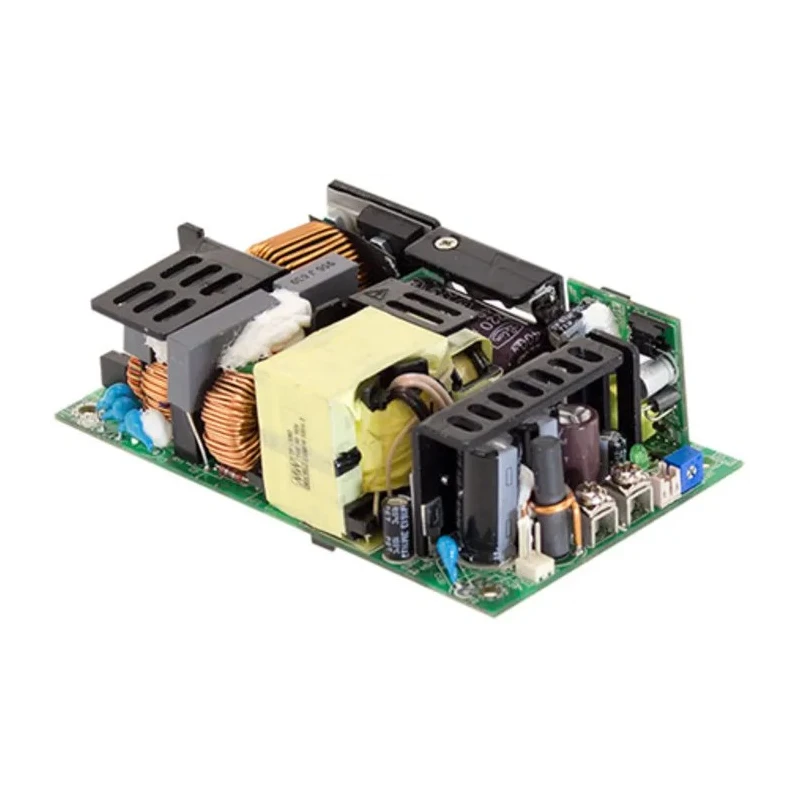

MEAN WELL Switching Power Supply 15V DC 250.5W Panel Mount High Efficiency Medical Grade RPS-400-15

MEAN WELL RPS-400-15 is a high reliability switching power supply designed for medical and industrial use requiring 15V DC output at 250.5 watts. Its compact panel mount form factor measuring 127mm in length, 35mm in width, and 35mm in depth makes it suitable for installations with space constraints.

The unit delivers continuous power with an output current of up to 26.7A, with a high efficiency rating of 92% which ensures reduced heat dissipation and improved energy savings. It features universal AC input voltage compatibility ranging from 80V AC to 370V DC with built-in Power Factor Correction for stable operation over a wide voltage range.

Designed with medical applications in mind, the RPS-400-15 meets rigorous safety requirements including medical isolation standards providing two times Means of Patient Protection (2x MOPP). It is suitable for BF rated equipment involving patient contact, offering increased safety measures.

The power supply includes various protections such as short circuit, overload, over voltage, and over temperature safeguarding the unit and connected equipment. Cooling is provided via free air convection with optional forced air forced cooling using a 12V/0.5A integral fan for increased thermal margin during high load conditions. It also supports a standby output of 5V @ 1A with fan operation and 0.6A without fan.

Additional features include a low leakage current design and a built-in remote sense function for voltage drop compensation, improving regulation over long cable runs. The compact modular design is RoHS compliant and passes multiple international safety certifications such as IS 13252(Part1), IEC 60950-1, UL and TUV EN/IEC 62368-1 standards.

This switching power supply is ideal for applications like oral irrigators, hemodialysis machines, medical monitors, sleep apnea devices, pumps, and electric beds. Choose MEAN WELL RPS-400-15 for dependable and safe power delivery in demanding medical and electronic environments. Browse further power supply solutions at EnvMart.

Compact panel mount size for space-limited installations. High efficiency of 92% ensures energy savings. Medical safety approval with 2x MOPP isolation. Universal AC input voltage with built-in PFC. Integrated protections and low leakage current.

Cooling via free air convection or forced air fan. Suitable for medical and industrial applications. Meets multiple international safety and EMC standards.
