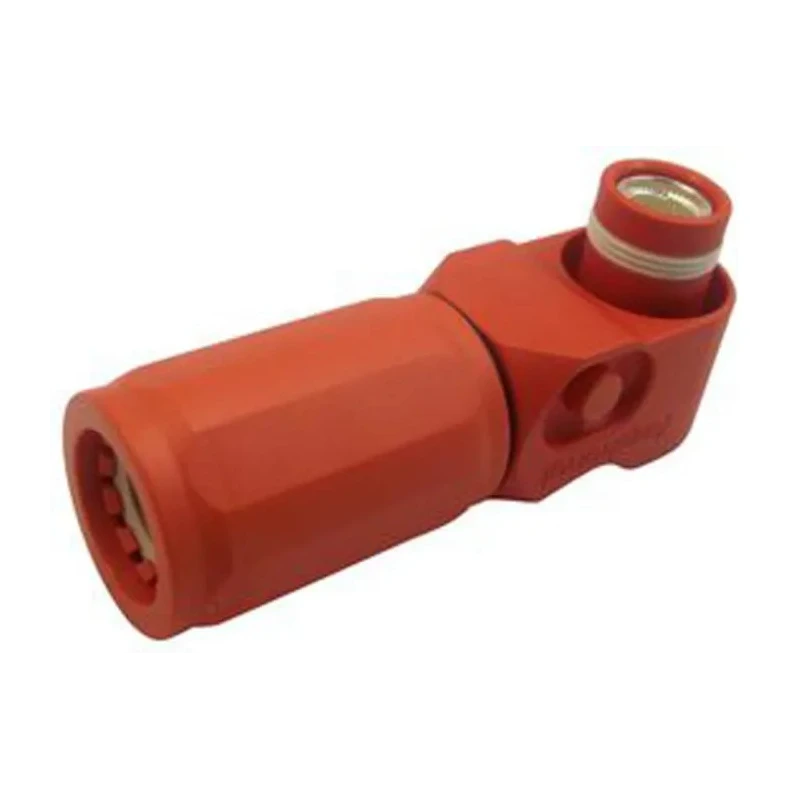

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 350A, 1000V, Crimp Termination, IP67 SLPPC85BSO1 / C10-730190-0801
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 350A |
| Height | 88.5mm |
| Model | SLPPC85BSO1 / C10-730190-0801 |
| Depth | 40.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30.3mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 85mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- The connector supports a continuous current rating of 350 amperes for high-power applications.
- It operates at a maximum voltage of 1000 volts, suitable for electric vehicles and industrial uses.
- The connector features a crimp termination type designed for 85mm² wire size, ensuring a secure and reliable electrical connection.
- It has a right-angle orientation with compact dimensions of 88.5 mm height, 30.3 mm width, and 40.5 mm depth.
- Constructed from thermoplastic housing and copper alloy contact material offering flame resistance and durability.
- Rated IP67 for dust and water ingress protection, suitable for harsh environments.
- Key features include a 10.3 mm pin diameter, spring locking mechanism, 360° plug rotation, and keyed to prevent mismating.
- The connector meets UL 94-V0 flammability standard ensuring safety and reliability.
Product Description
Amphenol Industrial SLPPC85BSO1 / C10-730190-0801 is a SURLOK PLUS RADSOK EV Connector Male with a current rating of 350A and operating voltage of 1000V designed for high-performance electrical connections in electric vehicles, heavy equipment, rail mass transit, battery management, and process control industries.
This connector is engineered for robustness and reliability, featuring a thermoplastic housing and copper alloy contacts with flame retardant UL 94-V0 rated materials.
The connector supports a wire size of 85mm² terminated with crimp style and is configured as a single contact, right-angle male connector with spring locking and press-to-release quick connection.
Its compact form factor measures 88.5 mm in height, 30.3 mm in width, and 40.5 mm in depth, with a pin diameter of 10.3 mm. It is keyed at 180 degrees to prevent mismating, ensuring secure assembly.
Rated IP67, the connector is sealed against dust and water ingress, suitable for harsh environmental applications. The plug rotates 360° for versatile installation options and features Amphenol R4 RADSOK technology, providing high tensile strength and conductive surface area for stable electrical contact.
The connector supports high current loads up to 350A. It is ideal for electric vehicle (EV/HEV) applications, as well as medical devices, rail mass transit, and battery energy storage systems. The robust design facilitates reliable connections in industrial and harsh operating conditions.
The product is recognized as a better world renewable energy solution, aligning with sustainable manufacturing standards. Mount type is cable-based, enabling flexible wiring harness integration.
Set your application up for success with the Amphenol Industrial SURLOK PLUS RADSOK EV connector, a trusted choice for demanding electrical installations requiring durability, safety, and ease of use. Browse the extensive range of EV Connectors at EnvMart to find the perfect match for your industrial projects.
