Infineon Capacitive Touch Sensor CY8CMBR3 Series 300 mm Sensing Distance 1.71 V-5.5 V Supply 16-Pin SOIC CY8CMBR3

The Infineon CY8CMBR3 series capacitive touch sensor, model CY8CMBR3110-SX2I, is a highly configurable programmable system-on-chip (PSoC) with integrated analog subsystems and capacitive sensing hardware. It is widely used in capacitive touch screen applications, offering precise sensing and reliable operation.

This sensor operates at a minimum supply voltage of 1.71 V and a maximum of 5.5 V, making it compatible with a broad range of electronic designs. It features a maximum switching frequency of 400 MHz and a maximum output current of 85 mA, supporting fast and efficient signal processing with an open drain output type for flexible interfacing options.

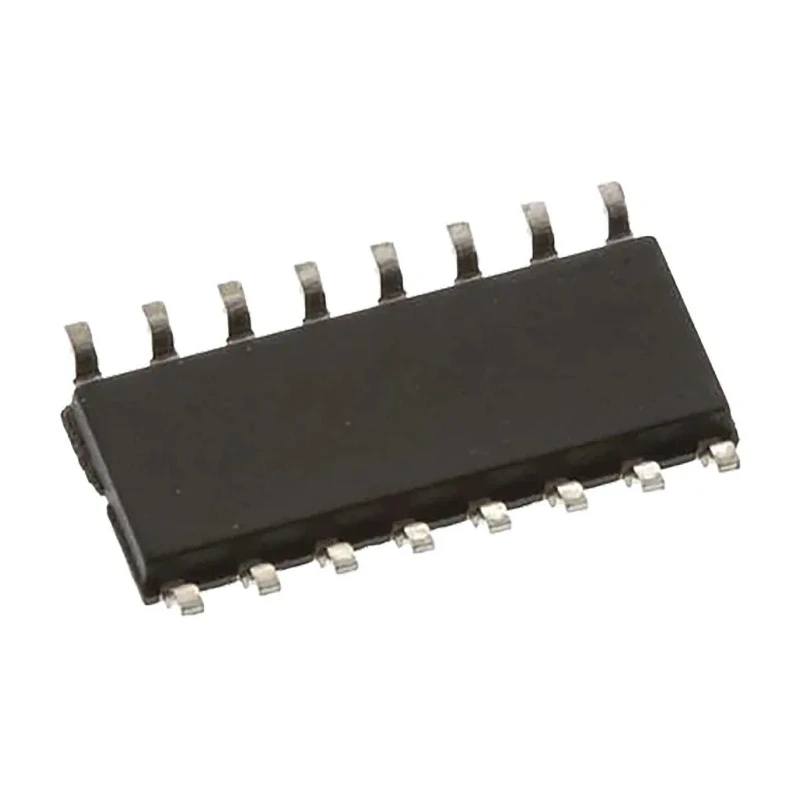

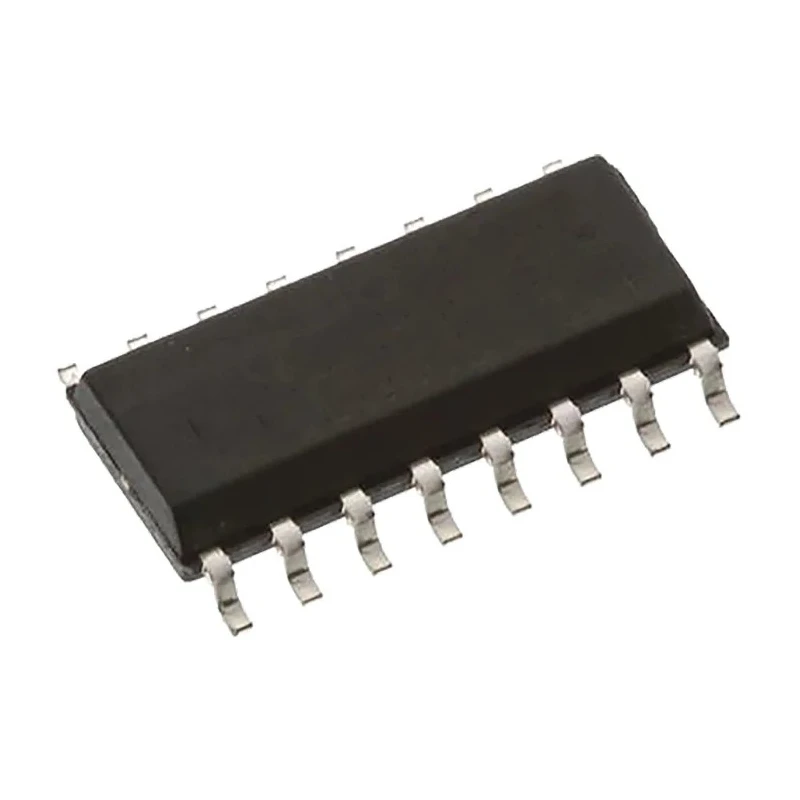

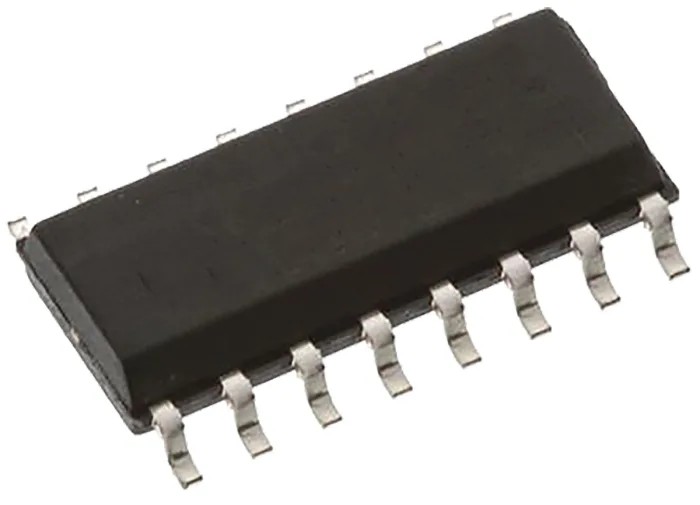

The device is housed in a 16-pin SOIC package with surface mount technology, optimized for compact integration with physical dimensions of 9.98 mm by 3.98 mm by 1.47 mm height. Its sensing distance reaches up to 300 mm, allowing for long-range capacitive touch detection in industrial, consumer electronics, and automotive applications.

Operating across a temperature range of -40°C to 85°C, the CY8CMBR3 sensor is suitable for use in a variety of environments, including harsh industrial and commercial settings. This product is not rated for automotive standards but is robust for general electronic use.

The CY8CMBR3 series utilizes CapSense® technology developed by Cypress Semiconductor, enabling highly responsive and sensitive touch control features for modern touch interfaces and control panels.

Maximum switching frequency of 400 MHz. Maximum output current of 85 mA. Maximum output voltage of 600 mV. Sensing distance of 300 mm. Open drain output type for flexible interfacing. Surface mount package with 16 pins SOIC.

Compact dimensions suitable for PCB design. Operating temperature from -40°C to 85°C. Supply voltage from 1.71 V to 5.5 V.

This capacitive touch sensor is ideal for industrial electronics, laboratory instrumentation, and embedded system applications requiring reliable touch sensing capabilities. It supports design efficiency and enhances production processes with ready-to-mount packaging.
