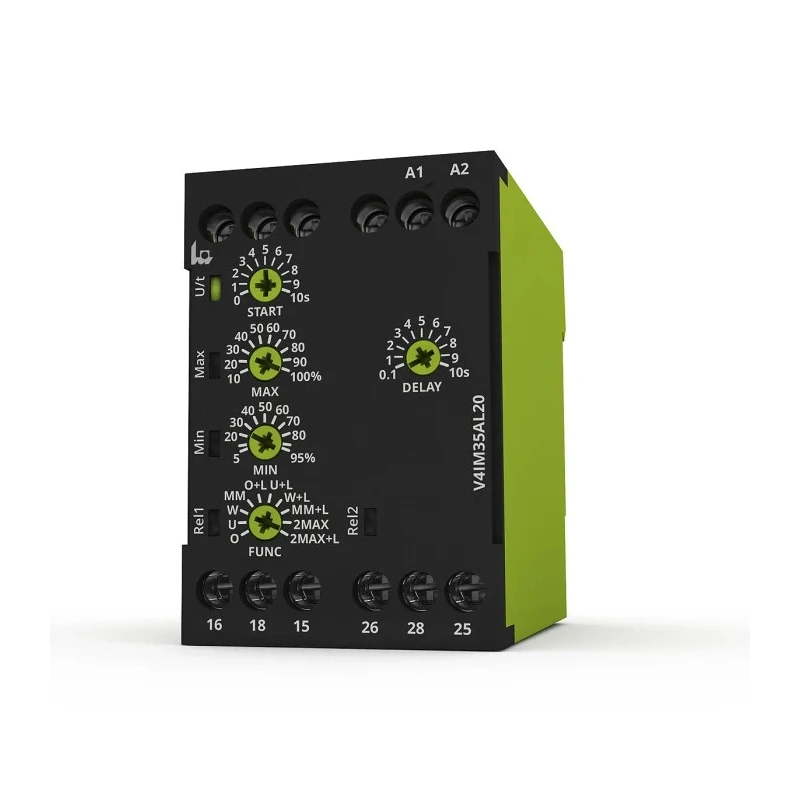

Tele Single Phase DPDT DIN Rail Monitoring Relay 24V ac, 240V ac, 35A V4IM35AL20 24-240V AC/DC
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Tele |
| Height | 67mm |
| Length | 76mm |
| Model | V4IM35AL20 24-240V AC/DC |
| IP Rating | IP20, IP40 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | VEO |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Time Delay | 0.1 to 10 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | REACH, WEEE, CMRT, TSCA, CE, EAC, RoHS |
| Switching Voltage | 400V ac |
| Supply AC Voltage | 24, 240V ac |
| Maximum Current Sensed | 35A |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 8A |
Key Features
- Operates at supply AC voltages of 24 and 240V with 35A maximum current sensing.
- Features dual contact points with DPDT configuration for versatile control.
- Includes undercurrent and overcurrent sensitivity for enhanced electrical protection.
- Equipped with screw terminal connections for secure wiring.
- Time delay adjustable between 0.1 to 10 seconds for application flexibility.
- Robust IP20 and IP40 rated enclosure ensuring protection in industrial environments.
- Relay contact current rating is 8A for reliable switching performance.
- Designed for optimum operation within temperature limits of +60°C maximum.
Product Description
The Tele V4IM35AL20 24-240V AC/DC monitoring relay is engineered for reliable single phase current monitoring applications, featuring a DPDT contact configuration with DIN rail mount capability. It supports supply AC voltages of 24V and 240V, making it versatile for diverse electrical systems.
Designed with overcurrent and undercurrent detection, this relay offers enhanced protection by sensing currents up to 35A. The time delay setting ranging from 0.1 to 10 seconds allows fine-tuning for specific application requirements. Its screw terminal design ensures secure and easy wiring installation.
With an IP rating of IP20 and IP40, the housing provides robust protection against environmental influences, suitable for industrial and automation contexts. The relay contact is rated at 8A current, supporting durable switching functionality with compact dimensions spanning 67mm height, 76mm length, and 45mm width ensuring minimal space usage on 35 mm DIN rails.
Compliant with major international standards including REACH, WEEE, CMRT, TSCA, CE, EAC, and RoHS, this Tele VEO series monitoring relay guarantees environmental and safety adherence. Its durable plastic construction is shock resistant and includes LED indicators for operational status visualization.
Operates on single phase AC with supply voltages of 24V and 240V. DPDT contact configuration provides changeover capabilities. Overcurrent and undercurrent sensing enhances system protection. Adjustable time delay from 0.1 to 10 seconds for flexible control.
IP20 and IP40 rated enclosure for industrial durability. Compact 45 mm width fits standard DIN rails conveniently. Screw terminal connections for secure wiring and easy maintenance. Relay contact rated at 8A ensures reliable switching.
Conforms with multiple environmental and safety standards. Manufactured in Austria to high quality standards.
This monitoring relay is ideally suited for industrial electrical panels, automation systems, and energy management installations requiring precise current control. Its trusted build quality and compliance make it a dependable choice for professionals in electrical engineering, manufacturing, HVAC, and related fields.
Explore more Tele Monitoring Relays and other electrical components in the EnvMart catalog for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can sense currents up to 35A.
It operates at supply AC voltages of 24V and 240V.
The relay contact current rating is 8A, ensuring reliable switching performance.
The time delay can be adjusted between 0.1 to 10 seconds.
It has an IP rating of IP20 and IP40, providing protection in industrial environments.
This model is designed for DIN rail mounting, making installation straightforward.
Its dimensions are 67mm in height, 76mm in length, and 45mm in width.
It includes undercurrent and overcurrent sensitivity for enhanced electrical protection.
It conforms to multiple standards including REACH, WEEE, CMRT, TSCA, CE, EAC, and RoHS.
The maximum operating temperature is +60°C.
It features screw terminal connections for secure wiring.
This monitoring relay is manufactured in Austria.
