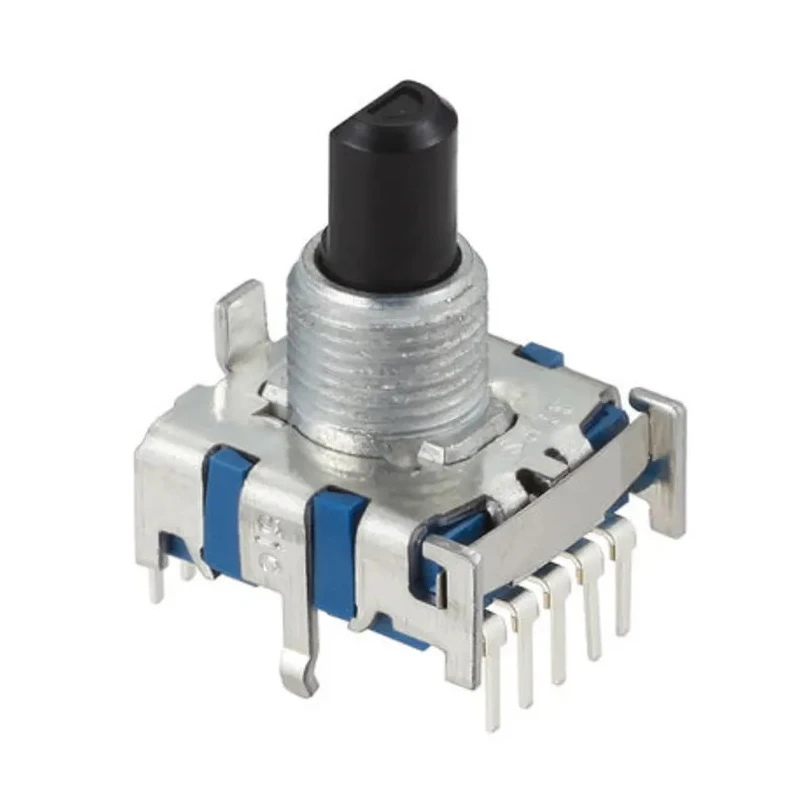

Alps Alpine SRBV 3 Position SP3T Rotary Switch 300mA PC Terminal SP3T

Alps Alpine SP3T 3 Position Rotary Switch is an essential component for precise electrical control in industrial, automation, and electronics applications. It supports a contact current of 300mA, suitable for low power switching needs on printed circuit boards (PCB). The switch offers a low-profile vertical operation with 8 discrete positions, enabling flexible configuration and control schemes.

The SRBV series rotary switch is built to last, with a mechanical life rated at 10,000 cycles, offering reliable durability in demanding environments. Rated for a maximum AC voltage of 100V and DC voltage of 16V, it meets diverse circuit requirements. Its single pole, triple throw (SP3T) contact configuration allows selection between three output paths, enhancing circuit functionality.

Constructed with a grey actuator with a 30-degree angle of throw, the switch delivers tactile feedback and operational precision. The compact size with 18.5mm width and depth, and a height of 16.2mm makes it an ideal choice for space-constrained designs. The PC terminal mounting type simplifies the integration onto circuit boards.

The product is compliant with RoHS standards, ensuring environmentally safe materials and manufacturing processes. Made in Japan, it reflects high-quality engineering and rigorous production standards. Its non-illuminated design fits well in applications where indicator lighting is unnecessary or handled separately.

The switch’s SP3T configuration provides three selectable positions. Supports 300mA switch contact current suitable for low power uses. Compact dimensioning aids in streamlined PCB layouts. Operates reliably in temperatures up to 85°C.

Designed for PCB mount with PC terminals for stable electrical connection. Mechanical life rated at 10,000 cycles ensures endurance in repetitive use cases. Grey actuator color and 30° throw angle for distinct actuation feedback.

RoHS compliant and manufactured in Japan guaranteeing quality standards.

This Alps Alpine SRBV rotary switch is well-suited for electronics manufacturing, industrial automation control panels, instrumentation, and electrical equipment. It provides dependable performance in scenarios where precise position selection and switch contact reliability are critical. Browse through the Electronics & Electricals > Switches & Sockets > Rotary Switch category on EnvMart for related high-quality components and accessories.
