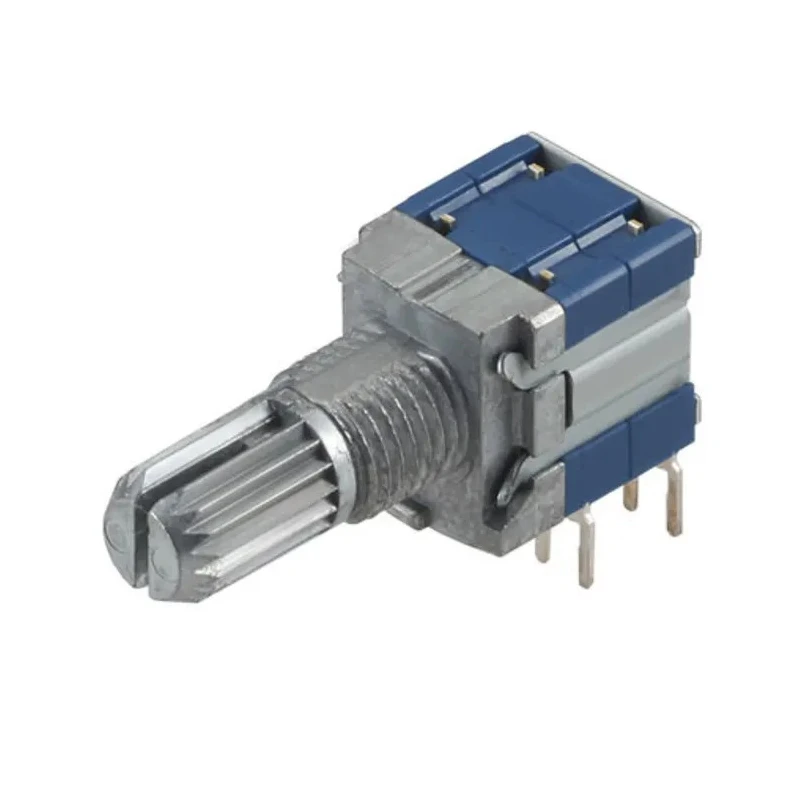

Alps Alpine 4 Position DPDT Rotary Switch 100mA PCB Mount, 6-Position Horizontal Operation SRBM140700

Alps Alpine SRBM140700 4 Position DPDT Rotary Switch is a high-quality PCB-mounted rotary switch featuring a double pole double throw (DPDT) contact configuration. It supports a switch contact current of 100mA and offers 4 selectable positions combined with a 6-position horizontal switch operation mechanism, providing flexibility for various control applications.

The switch is designed to handle maximum voltages of 100V AC and 16V DC, suitable for low power electronic devices and automation systems. Its compact dimensions measure 11mm in width and depth, with a height of 10mm, ensuring easy integration into circuit boards without occupying excessive space.

Operating reliably in temperatures ranging from -30°C to 85°C, the switch guarantees performance stability over a wide temperature spectrum. The actuator sport a grey color and moves with a 30° angle of throw, offering precise tactile feedback during operation.

Alps Alpine's SRBM140700 switch includes a terminal type connection for secure PCB mounting and features a pulse switch configuration. It complies with RoHS environmental standards and is manufactured in Japan, reflecting excellent build quality and durability for industrial, laboratory, automation, and manufacturing applications.

The mechanical life of 10,000 cycles ensures the switch’s durability over extended use. Being non-illuminated, it is ideal for compact control panels and devices where illumination is not required.

Constructed for 4 selectable positions with a double pole double throw configuration. Operates with a 6-position horizontal switch mechanism for precise control. Rated to handle up to 100V AC and 16V DC maximum voltages.

Compact dimensions with a width and depth of 11mm and height of 10mm. Operating temperature range from -30°C to 85°C ensures durability under varying conditions. Features grey actuator color with a 30° angle of throw for efficient operation.

Mechanical life rated for 10,000 cycles assuring long-term reliability. Terminal type mount suitable for PCB assembly. Manufactured in Japan adhering to RoHS compliance standards. Non-illuminated switch configuration with pulse switching action.

This switch is suitable for use in industrial automation, electronic equipment, manufacturing controls, and other applications requiring reliable, low-current Rotary Switching solutions.
