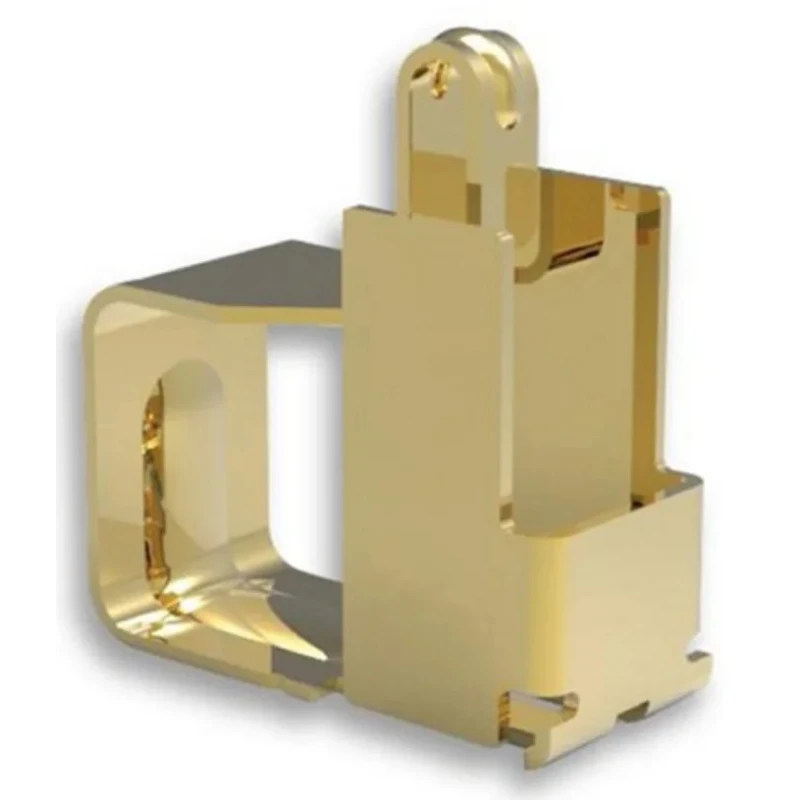

TE Connectivity 3.8 mm Spring Contact Surface Mount, Copper Material, Gold Plated, 2A Current 3-2199250-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Material | Copper |
| Current | 2A |
| Height | 3.8mm |
| Length | 3.45mm |
| Width | 1.5mm |
| Standards/Approvals | EU, RoHS |
| Contact Plating | Gold |
| Fixing Method | Surface Mount |
Key Features
- Constructed from copper with gold-plated contacts for optimal conductivity and corrosion resistance.
- Designed for SMT mounting ensuring easy PCB assembly and strong solder joint strength.
- Accommodates current load up to 2 amperes for various electronic device requirements.
- Compact dimensions of 3.8 mm height, 3.45 mm length, and 1.5 mm width save valuable PCB space.
- Side protection walls prevent damage and deformation during handling and PCB transfer.
- Dimpled contact improves contact force for enhanced electrical performance.
- Includes pick and place area enabling automated assembly processes.
- Compliant with EU RoHS standards assuring environmental safety and quality.
Product Description
TE Connectivity 3-2199250-5 3.8 mm Spring Contact is a surface mount electronic component designed for reliable grounding between a device and PCB while preventing EMI noise and static build-up. This component features copper material construction with gold-plated contacts ensuring excellent electrical conductivity and long-term corrosion resistance.
With a compact size of 3.8 mm height, 3.45 mm length, and 1.5 mm width, it optimizes PCB space usage, facilitating versatile PCB layouts. The scalable design with common footprint allows flexible design height adjustments without additional PCB area requirements.
The spring contact incorporates side protection walls that safeguard against deformation during PCB transfer and operator handling. The contact dimple increases force for a secure electrical connection, while soldering holes provide enhanced joint strength and prevent solder wicking.
Designed for SMT assembly, this contact includes a pick and place area enabling automated manufacturing processes. Its durability and precision meet EU RoHS compliance standards, confirming its suitability for environmentally conscious production.
Typical applications include consumer electronic devices such as digital cameras, mobile phones, and notebooks, as well as industrial and automotive equipment like security cameras and POS scanners. It also finds use in medical devices including patient monitors and wearable fitness equipment.
Constructed from copper with gold plating for reliability. Surface mount fixing method for modern PCB assembly. Supports a current rating of 2 amperes. Compact 3.8 mm height reduces PCB footprint. Side walls to protect against mechanical damage.
Dimpled contact enhances contact force. Soldering holes improve mechanical strength. Pick and place area for automated assembly. RoHS compliant for environmental safety. Explore the full range of grounding contacts and Electronic Components in EnvMart’s Electronics & Electricals category for professional-grade industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This spring contact supports a current rating of 2 amperes, making it suitable for various electronic device requirements.
The dimensions of this model are 3.8 mm in height, 3.45 mm in length, and 1.5 mm in width, which helps save valuable PCB space.
It is constructed from copper, with gold plating on the contacts to ensure optimal conductivity and corrosion resistance.
The dimpled contact improves contact force, which enhances the electrical performance of the connection.
Yes, it is compliant with EU RoHS standards, assuring its environmental safety and quality.
This model utilizes a surface mount fixing method, designed for modern PCB assembly.
Typical applications include consumer electronic devices like digital cameras and mobile phones, as well as industrial equipment and medical devices.
Yes, it includes side protection walls that prevent damage and deformation during handling and PCB transfer.
The pick and place area enables automated assembly processes, facilitating efficient manufacturing.
The country of origin for this component is India.
The scalable design with a common footprint allows for flexible height adjustments without requiring additional PCB area.
The soldering holes improve the mechanical strength of the joint and help prevent solder wicking during assembly.
