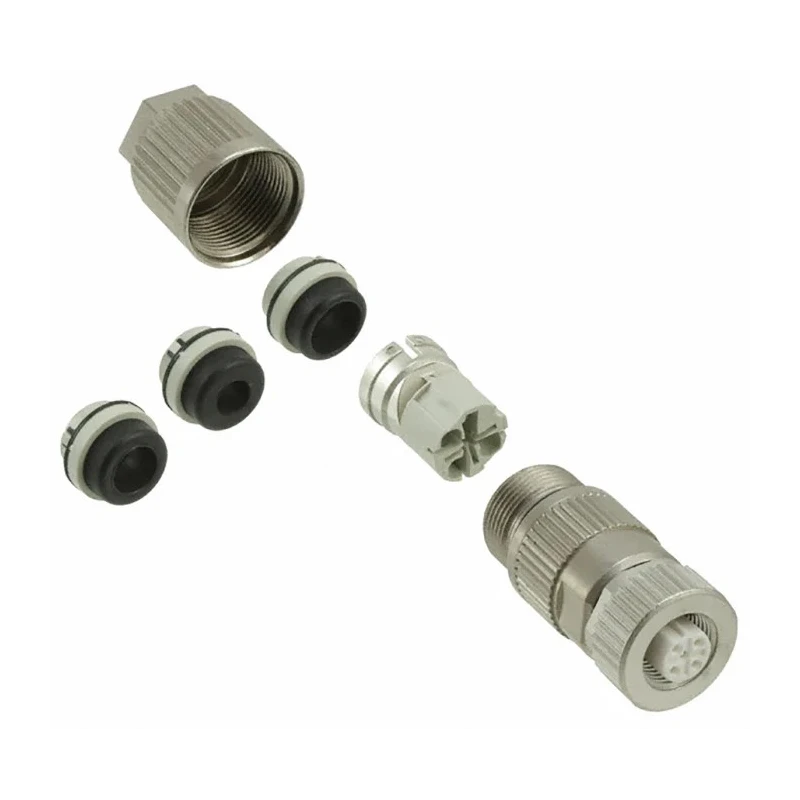

HARTING Circular Connector 2 Contacts Cable M12 Connector Plug Female IP65 IP67 Harax M12 Series 21032412301
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 32V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | Harax M12 |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Conductor Diameter | 3 & 4 pole 1.6 → 2.0 mm (22 - 18 AWG), 5 pole 1.2 → 2.0 mm (24 - 20 AWG) |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 19.5 mm |
| Mating Type | Quick Connect |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | B |
| Cable diameters | 3 pole 5.5 → 7.2 mm, 4 pole 6 → 8 mm, 5 pole 6 → 8 mm |
Key Features
- This circular connector provides a robust connection suitable for industrial applications.
- It features quick connect mating type with a straight orientation and gold-plated brass contacts.
- The housing is made of durable polymer material, ensuring resistance to environmental factors.
- Rated for 32V voltage and 4A current with IP65 and IP67 ingress protection.
- Operates reliably between -40°C and 85°C for harsh conditions.
- Compatible with cable diameters of 5.5 to 8 mm depending on pole configuration.
- The connector uses IDC termination type for efficient assembly without special tools.
- Ideal for applications requiring vibration-resistant and gas-proof connections.
Product Description
HARTING 21032412301 Circular Connector is a 2-contact cable mount M12 connector plug female designed for industrial circular connector applications. Part of the Harax M12 series, this connector meets IP65 and IP67 protection ratings, ensuring reliable performance in demanding environments.
The connector supports a voltage of 32V and current capacity of 4A, suitable for various electronics and power connector systems. Its straight orientation and quick connect mating type enable fast and secure installation without needing special tools.
Constructed with gold-plated brass contacts and a polymer housing, it offers excellent electrical conductivity combined with durability and resistance to wear. The termination uses the insulation displacement contact (IDC) technique, providing a gas-proof, vibration-resistant connection.
Operating temperature ranges from -40°C to 85°C, making it suitable for harsh industrial, manufacturing, logistics, and automation environments. The connector supports cable diameters ranging from 5.5 to 8 mm depending on poles and conductor diameters from 1.2 to 2.0 mm accommodating 18-24 AWG wires.
This Harax M12 series circular connector is ideal for industrial circular connector applications requiring secure, tool-less assembly with high ingress protection, commonly used in electronic components, power, and connector solutions across multiple industrial sectors.
This circular connector provides a robust connection suitable for industrial applications. It features quick connect mating type with a straight orientation and gold-plated brass contacts. The housing is made of durable polymer material, ensuring resistance to environmental factors.
Rated for 32V voltage and 4A current with IP65 and IP67 ingress protection. Operates reliably between -40°C and 85°C for harsh conditions. Compatible with cable diameters of 5.5 to 8 mm depending on pole configuration. The connector uses IDC termination type for efficient assembly without special tools.
Ideal for applications requiring vibration-resistant and gas-proof connections. Explore more in the Industrial Circular Connectors category on EnvMart for a wide range of reliable and high-performance connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 32V and a current capacity of 4A.
It has IP65 and IP67 ingress protection ratings, making it suitable for demanding environments.
It operates reliably between -40°C and 85°C, suitable for harsh conditions.
The connector utilizes insulation displacement contact (IDC) termination for efficient assembly without special tools.
It is compatible with cable diameters ranging from 5.5 to 8 mm depending on the pole configuration.
This model features 2 contacts, designed for cable mount applications.
The housing is made of durable polymer material, and the contacts are gold-plated brass.
It has a straight orientation and features a quick connect mating type for fast installation.
The shell size of this circular connector is 19.5 mm.
This model uses coding format B for proper alignment during mating.
The connector is manufactured in Romania.
It is ideal for industrial applications requiring secure, vibration-resistant, and gas-proof connections.
