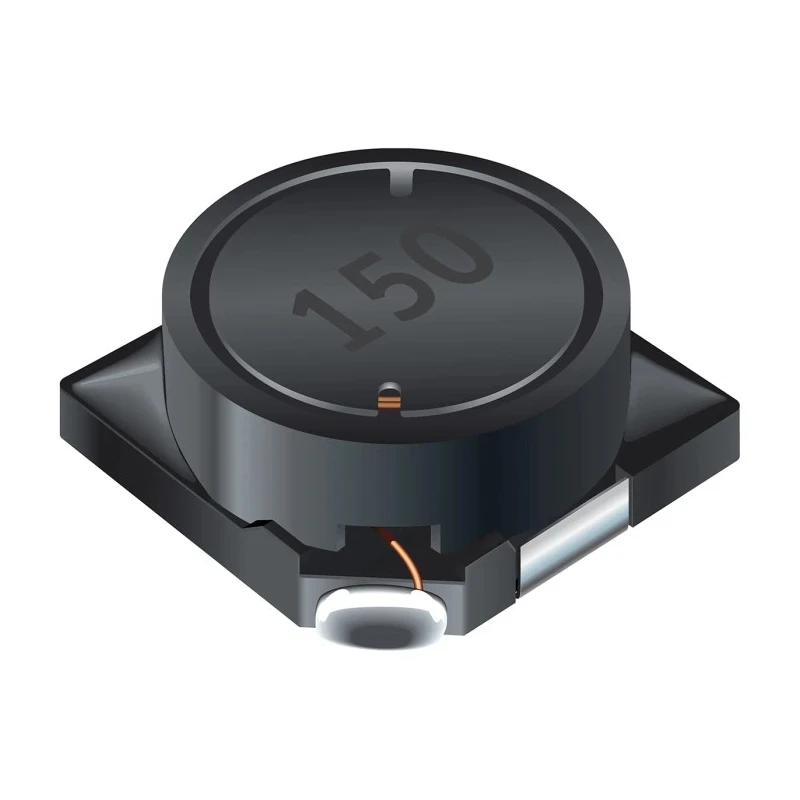

Bourns 7032 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 4.7μH ±20% 2A IDC Q:16 SRR7032
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 3.2mm |
| Length | 7mm |
| Model | SRR7032 |
| Depth | 7mm |
| Packaging | Reel |
| Series | SRR7032 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 7032 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 42mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 43MHz |
| Minimum Quality Factor | 16 |
| Inductor Construction | Wirewound |
Key Features
- Features a magnetically shielded ferrite core for reduced electromagnetic interference.
- Compact 7032 package size with dimensions 7mm length, 3.2mm height, and 7mm depth.
- Maximum DC resistance of 42mΩ ensures efficient current handling.
- Operates reliably between -40°C and 125°C temperature range.
- Rated for maximum self-resonant frequency of 43MHz and quality factor of 16.
- Moulded solder termination style supports surface mount applications.
- Constructed with wirewound inductor design for durability and performance.
- Packaging supplied on reel for automated assembly processes.
Product Description
Bourns SRR7032 Wirewound Surface Mount Inductor is a high-performance electronic component designed for power supply and DC/DC converter applications in portable communication equipment, camcorders, LCD TVs, and car radios. It features a magnetically shielded ferrite core that minimizes electromagnetic interference and maintains signal integrity.
With an inductance of 4.7μH ±20%, the inductor supports maximum DC currents up to 2A and offers a low DC resistance of 42mΩ, ensuring efficient power handling. The compact 7032 package size measures 7mm in length, 3.2mm in height, and 7mm in depth, catering to space-constrained PCB layouts.
The component is designed to operate reliably within a temperature range of -40°C to 125°C and features a maximum self-resonant frequency of 43MHz paired with a quality factor of 16. Its moulded construction and solder termination style facilitate secure surface mounting, making it suitable for automated manufacturing.
This RoHS-compliant inductor is supplied on reels, streamlining placement for surface mount technology (SMT) assembly lines. The SRR7032 series is widely used in industrial, consumer electronics, and telecommunications sectors, providing efficient power filtering and energy storage.
Magnetically shielded ferrite core reduces interference. Compact 7032 package with precise dimensions. Low DC resistance for efficient current flow. Wide operating temperature range ensures reliability. High self-resonant frequency supports high-frequency applications.
Wirewound design enhances durability. Reel packaging supports automated assembly. RoHS compliant for environmental safety. Suitable for portable communication and consumer electronics. Explore the Electronics Components category in EnvMart for more Surface Mount Inductors and related components to enhance your projects and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7μH ±20%.
It supports a maximum DC current of 2A.
The dimensions of the 7032 package are 7mm in length, 3.2mm in height, and 7mm in depth.
The maximum DC resistance is 42mΩ.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 43MHz.
The minimum quality factor is 16.
It features a solder termination style, suitable for surface mount applications.
The core material is ferrite, which helps in reducing electromagnetic interference.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
It is supplied on reels, facilitating automated assembly processes.
This model is designed for power supply and DC/DC converter applications in portable communication equipment, camcorders, LCD TVs, and car radios.
