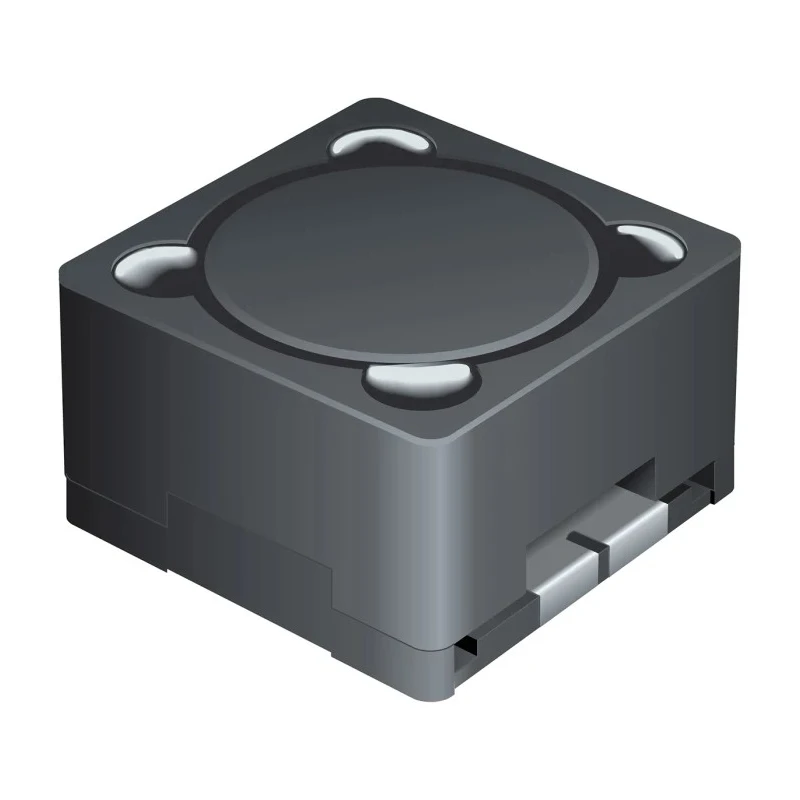

Bourns 1208 Shielded Wirewound Surface Mount Inductor with Ferrite Core 15μH ±20% 4 A Idc SRR1208
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 12.99mm |
| Brand | Bourns |
| Height | 8.5mm |
| Length | 12.7mm |
| Model | SRR1208 |
| Depth | 12.7mm |
| Series | SRR1208 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 1208 |
| Maximum DC Current | 4A |
| Pin Count | 4 |
| Maximum DC Resistance | 36mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 26MHz |
| Minimum Quality Factor | 21 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a magnetically shielded ferrite core for efficient high-frequency operation.
- The 1208 package size allows compact mounting on PCBs with dimensions 12.7mm by 8.5mm.
- It is designed for surface mount termination with four pins for secure installation.
- The inductor supports a maximum operating temperature of 125°C and a minimum of -40°C.
- Its maximum DC resistance is 36 milliohms, ensuring low power loss.
- The maximum self resonant frequency is 26 MHz with a minimum quality factor of 21, suitable for EMI filters and DC/DC converters.
- Manufactured in China complying with RoHS standards.
Product Description
Bourns SRR1208 is a magnetically shielded wirewound Surface Mount Inductor with a ferrite core, delivering 15μH inductance with ±20% tolerance. The model SRR1208 supports a maximum DC current of 4 amperes and features a 1208 package case size optimized for compact PCB layouts.
This inductor is designed with a low-profile shielded construction ideal for high frequency applications such as DC/DC converters and EMI filtering. It operates reliably within a temperature range of -40°C to 125°C and exhibits a maximum DC resistance of 36 milliohms to minimize energy loss.
With a height of 8.5mm, length and depth of 12.7mm, and a diameter of approximately 13mm, the SRR1208 provides stable electrical characteristics and a minimum quality factor of 21 at a maximum self resonant frequency of 26 MHz.
The surface mount termination with four pins ensures robust mechanical and electrical connection on printed circuit boards. The product is molded and made in China with environmental compliance to RoHS directives.
Applications primarily include power electronics such as DC/DC converters and EMI filters in industrial, commercial, and consumer electronics equipment, offering high current rating and effective magnetic shielding.
This inductor features a magnetically shielded ferrite core for efficient high-frequency operation. The 1208 package size allows compact mounting on PCBs with dimensions 12.7mm by 8.5mm. It supports a maximum DC current of 4 amperes with low DC resistance of 36 mΩ.
The inductance tolerance is ±20%, suitable for tolerant designs. Operates between -40°C and 125°C temperature range. Provides a minimum quality factor of 21 at a maximum self-resonant frequency of 26 MHz. Manufactured in China in accordance with RoHS standards ensuring environmental safety.
Explore the comprehensive range of electronic components at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRR1208 inductor has an inductance value of 15μH with a tolerance of ±20%.
This model supports a maximum DC current of 4 amperes.
The maximum self-resonant frequency of the SRR1208 is 26 MHz.
The dimensions of the SRR1208 are 12.7mm in length, 12.7mm in depth, and 8.5mm in height, with a diameter of approximately 12.99mm.
The operating temperature range for the SRR1208 is from -40°C to 125°C.
The maximum DC resistance of this inductor is 36 milliohms.
This model features surface mount termination with four pins for secure installation on printed circuit boards.
The minimum quality factor of the SRR1208 is 21.
The core material used in the SRR1208 is ferrite, which contributes to its magnetic shielding.
Yes, the SRR1208 is manufactured in compliance with RoHS standards.
This inductor is suitable for applications such as DC/DC converters and EMI filtering in various electronic equipment.
The Bourns SRR1208 comes in a 1208 package size, which is optimized for compact PCB layouts.
