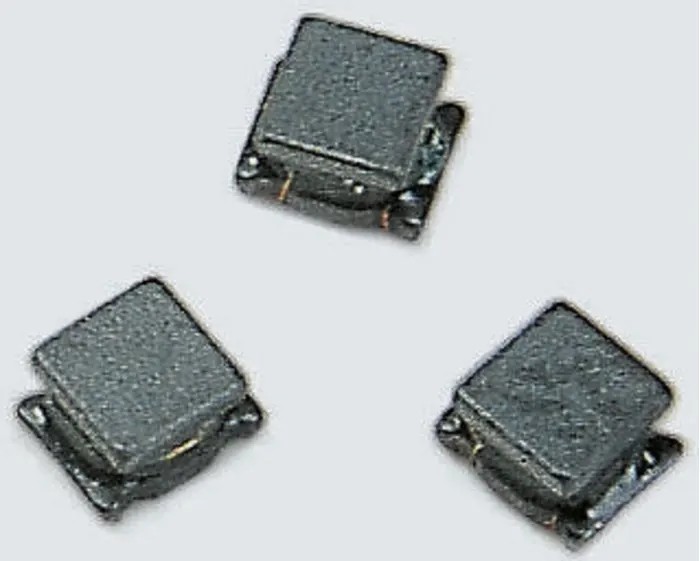

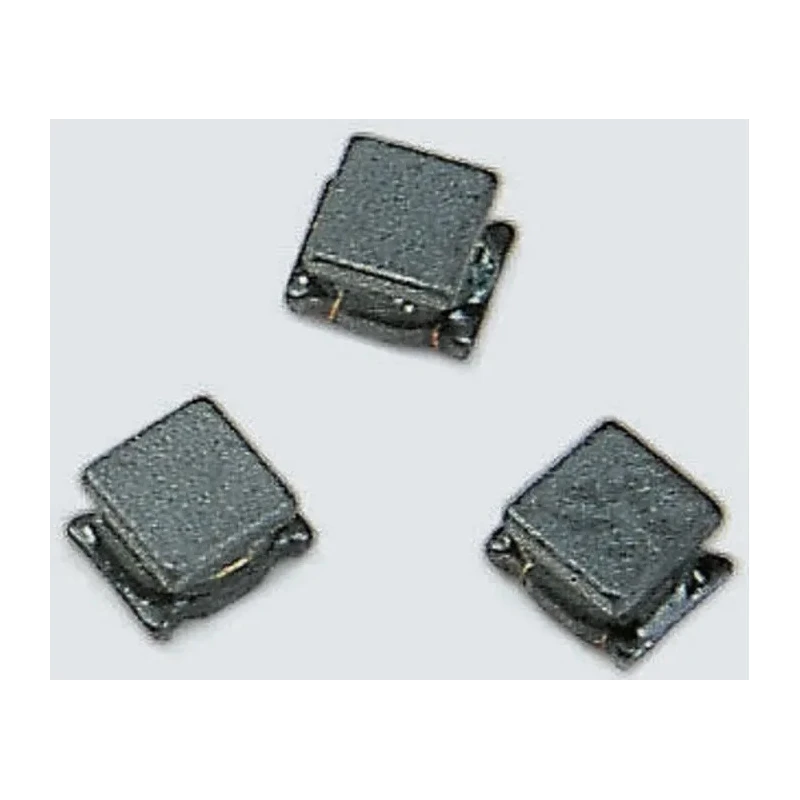

Murata 1210 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 150 μH ±10 % 70 mA Idc Q:40 LQH32MN151K23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32MN151K23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 150μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 70mA |
| Pin Count | 2 |
| Maximum DC Resistance | 9.3Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 7MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a 1210 package with ferrite core construction.
- It has a maximum DC current rating of 70 mA and a quality factor (Q) of 40.
- The inductance tolerance is ±10%, ensuring reliable circuit performance.
- Operates in temperature range from -40°C to 85°C with low DC resistance of 9.3 Ω.
- Embossed tape packaging facilitates automated assembly in manufacturing.
- The component is compliant with RoHS standards, suitable for environmentally conscious designs.
- Termination is solder style for surface mount technology (SMT) applications.
- Ideal for use in video, communications, audio equipment, and mobile telephone circuits.
Product Description
Murata LQH32MN151K23L is a 1210 package unshielded wirewound surface mount inductor featuring a ferrite core. This high-quality inductor offers an inductance of 150 μH with a tolerance of ±10%, making it highly reliable for precision electronic applications. It has a maximum DC current rating of 70 mA and a minimum quality factor (Q) of 40, ensuring efficient energy storage and minimal losses.
The inductor’s dimensions are compact with a length of 3.2 mm, height of 2 mm, and depth of 2.5 mm. It has a low DC resistance of 9.3 Ω and can operate within a temperature range of -40°C to 85°C. The device is molded for durability and designed with a solder termination style suitable for surface mount technology assembly. The embossed tape packaging supports efficient production line integration.
Compliant with RoHS standards, the Murata LQH32MN151K23L is environmentally friendly and ideal for use in a wide range of electronic circuits including video processing, communications equipment, audio devices, and mobile telephony. The ferrite core construction provides stability and consistent inductance, improving performance in demanding industrial and commercial applications.
Manufactured in Japan, this inductor meets stringent quality control standards. It provides engineers and designers with a reliable component that enhances circuit performance and ensures long-term operational stability.
The inductor is constructed using wirewound technology on a ferrite core for high efficiency. It features a 1210 size package and is supplied on embossed tape for SMT processes. It performs reliably between -40°C and 85°C ambient temperatures.
Its maximum DC current is rated at 70 mA, suitable for low-power applications. The device complies with RoHS environmental regulations.
For high-performance design needs in industrial electronics, communications, and audio sectors, the Murata LQH32MN151K23L surface mount inductor represents an excellent choice. Explore more Surface Mount Inductors and advanced components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 150 μH with a tolerance of ±10%.
It has a maximum DC current rating of 70 mA, suitable for low-power applications.
The dimensions of this inductor are 3.2 mm in length, 2 mm in height, and 2.5 mm in depth.
This model operates within a temperature range of -40°C to 85°C.
The minimum quality factor (Q) of this inductor is 40, which contributes to its efficiency.
It features a ferrite core construction, which enhances its stability and performance.
It is supplied in embossed tape packaging, facilitating automated assembly in manufacturing processes.
The maximum DC resistance is 9.3 Ω, which helps in reducing energy losses.
The termination style for this model is solder, suitable for surface mount technology (SMT) applications.
Yes, it is compliant with RoHS standards, making it suitable for environmentally conscious designs.
It is ideal for use in video processing, communications equipment, audio devices, and mobile telephony circuits.
This inductor is manufactured in Japan, adhering to stringent quality control standards.
