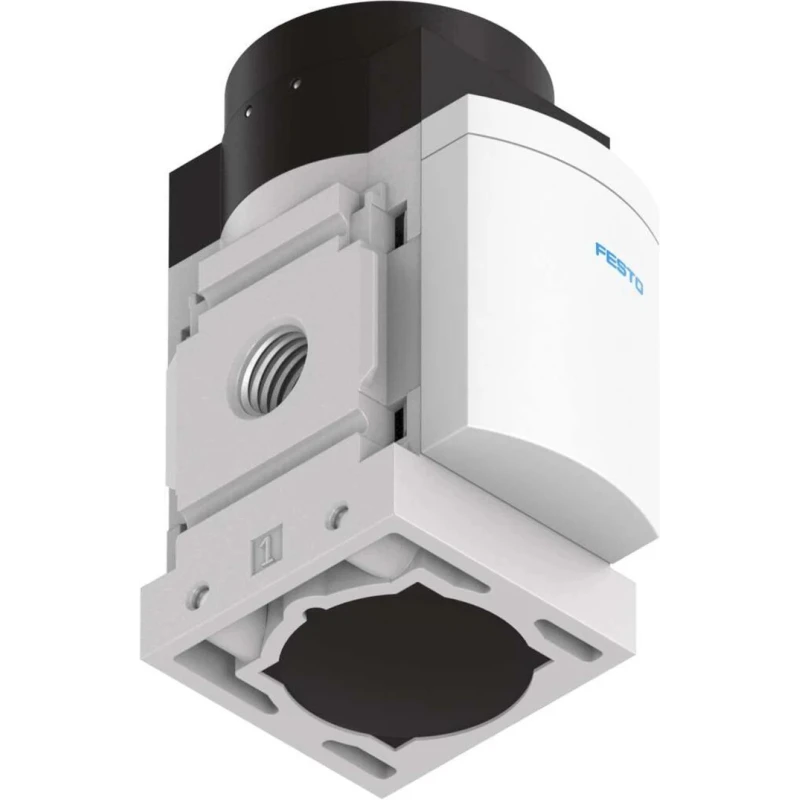

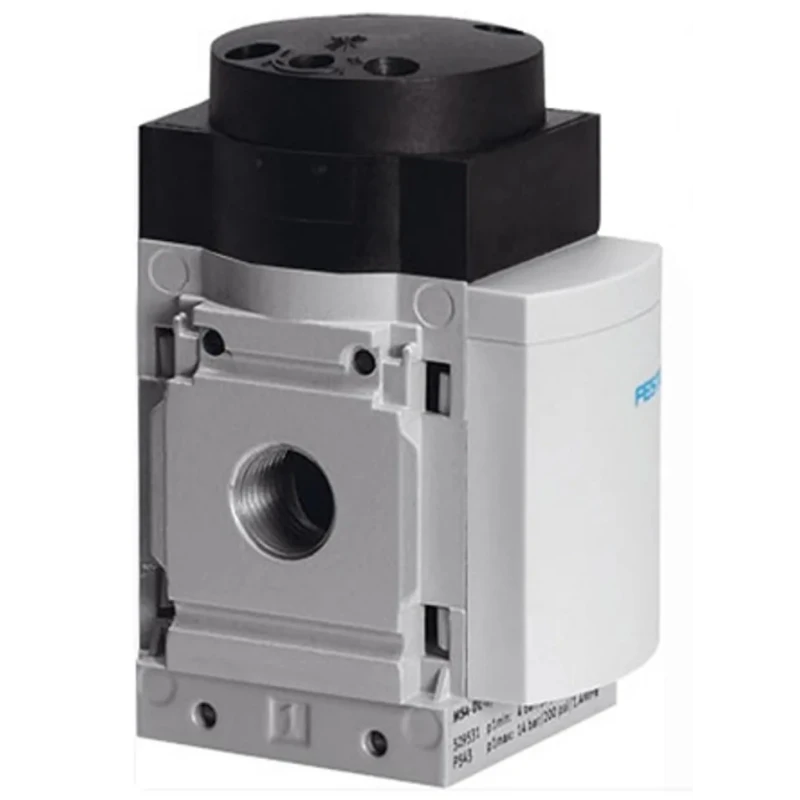

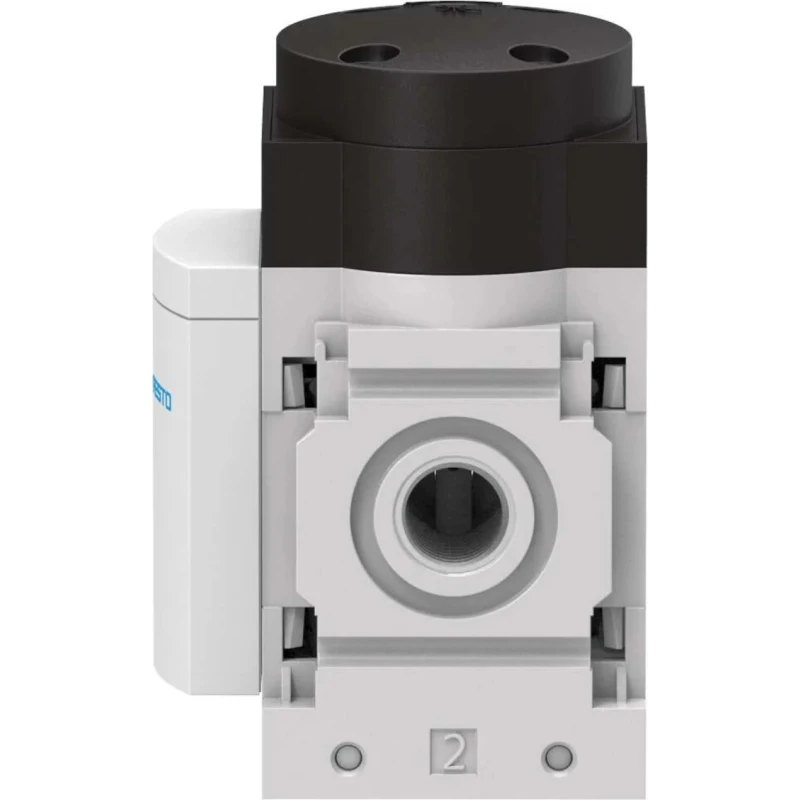

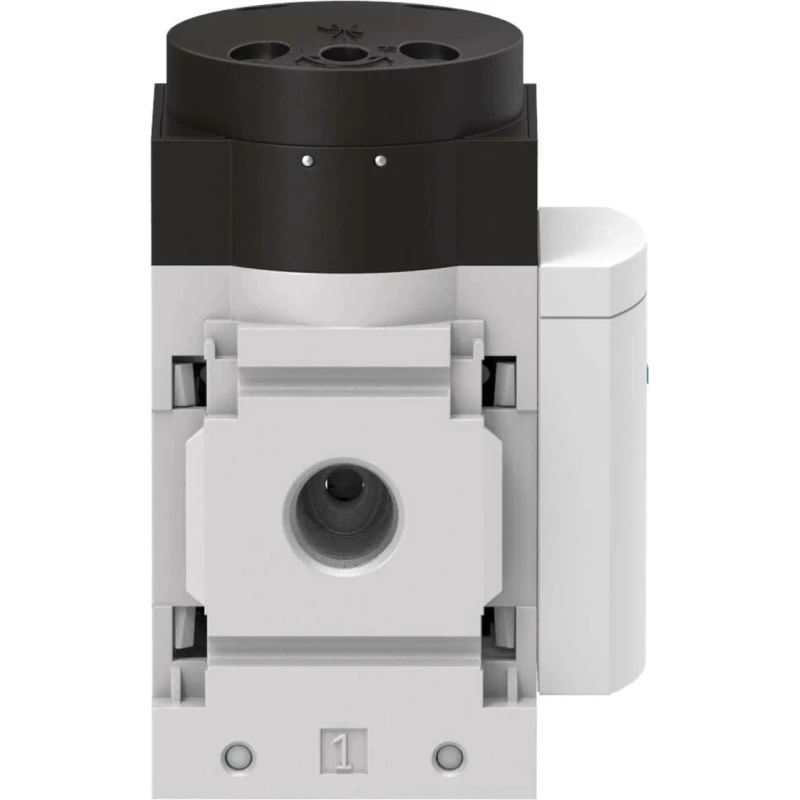

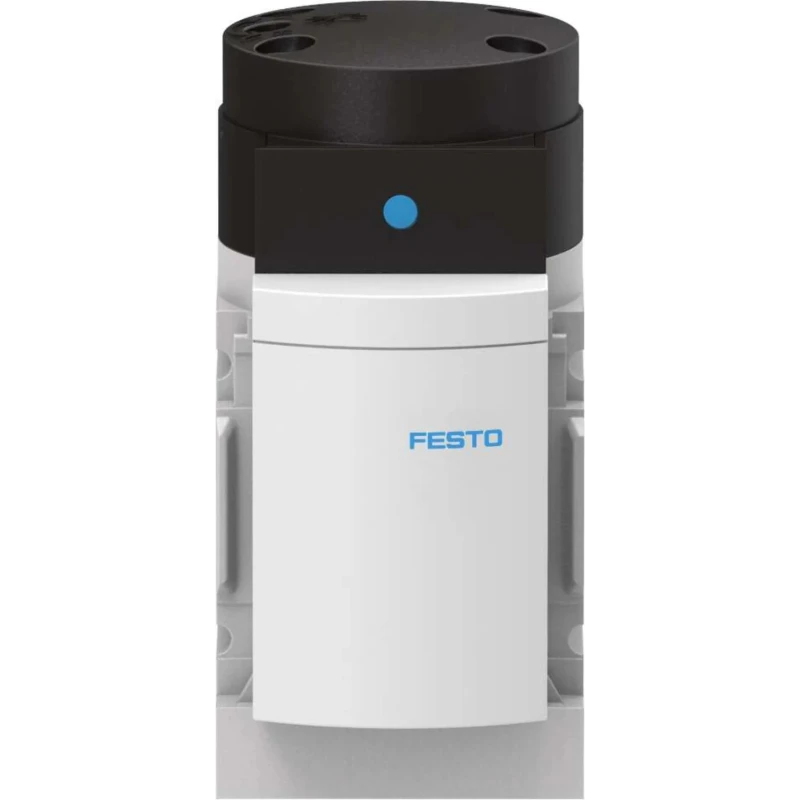

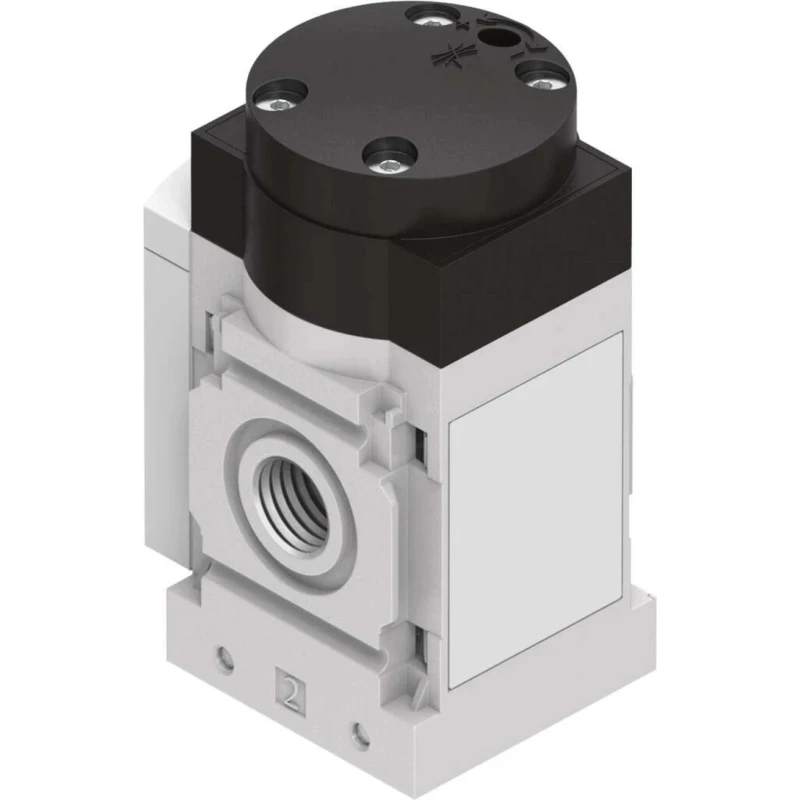

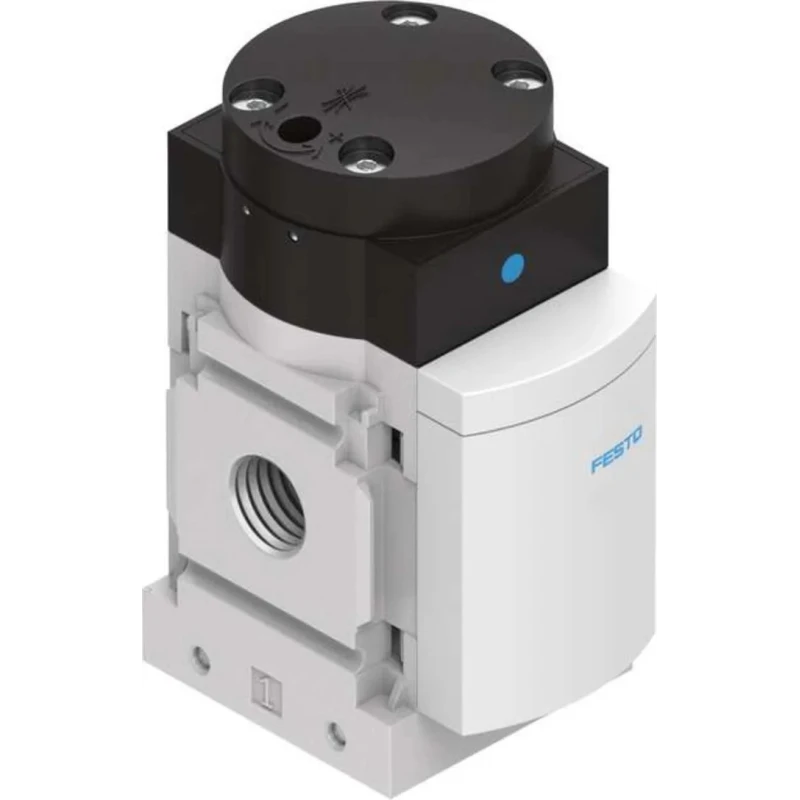

Festo Pneumatic Solenoid Valve Pilot/Spring G MS4 Series 1/4 in Port Size, 14 bar Pressure, 2000 L/min Flow Rate MS4-DL-1/4
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 14 bar |
| Model | MS4-DL-1/4 |
| Mount Type | In-Line |
| Series | MS4 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 60°C |
| Thread Size | 1/4 in |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot/Spring |
| Maximum Flow Rate | 2000L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 4bar |
| Valve Function | 2/2 |
| Festo Manual Pneumatic Manual Control Valve HEL Series, G G 3/8, 170690Brand | Festo |
Key Features
- Operates with a port size of 1/4 inch and G connection thread standard.
- Designed with pilot/spring actuation type for smooth valve operation.
- Supports maximum operating pressure up to 14 bar and pilot pressure from 4 bar.
- Constructed with durable aluminium body and Nitrile Rubber (NBR) seals for long-lasting performance.
- Features a maximum flow rate of 2000 L/min for efficient air throughput.
- Works within an operating temperature range from -10°C to 60°C to suit various environments.
- Valve function is 2/2 with two positions, ensuring precise airflow control.
- Compliant with RoHS standards, ensuring environmental and safety compliance.
Product Description
Festo MS4-DL-1/4 Pneumatic Solenoid Valve Pilot/Spring G MS4 Series is engineered for reliable and safe control of air flow in demanding industrial pneumatic systems. This 2/2 valve features a 40mm grid dimension and supports left-to-right airflow direction which enables it to precisely throttle pressure increases for equipment protection.
Designed to operate with a maximum pressure of 14 bar and a minimum pilot pressure of 4 bar, this valve offers outstanding versatility and robustness. Its durable die-cast aluminium body is resistant to corrosion, making it suitable for humid or challenging environments, while Nitrile Rubber (NBR) seals provide excellent resistance to dust and particulate contamination.
The valve supports a maximum flow rate of 2000 L/min and works effectively across a wide temperature range from -10°C to +60°C, making it adaptable to various industrial and manufacturing settings.
Its spring return mechanism ensures quick and reliable shut-off, contributing to safe operation of air tools and equipment. The valve is compliant with RoHS environmental standards, enhancing eco-friendly applications.
Commonly used in automotive manufacturing, food and beverage processing, and general industrial facilities, this solenoid valve integrates easily with standard G1/4 thread connections and in-line mounting arrangements. The valve’s smooth throttle function gradually powers up pneumatic tools, reducing stress and wear.
Operates with 1/4 inch port size and G thread standard. Pilot/spring actuation enhances controlled air flow. Maximum operating pressure: 14 bar. Maximum flow rate: 2000 L/min. Durable aluminium body with NBR seals. Wide temperature operating range: -10°C to +60°C.
Spring return valve function for safety. RoHS compliant for safe environmental use. In-line mount type with 2 ports and 2 positions.
This Festo pneumatic solenoid valve is a critical component for industrial automation, HVAC, manufacturing, and fluid power applications. Experience optimal performance and extended equipment life when incorporating the MS4-DL-1/4 valve in your control systems.
Discover more Pneumatic Solenoid Valves and industrial valve solutions at EnvMart for well-engineered, durable, and efficient operation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 14 bar.
This model supports a maximum flow rate of 2000 L/min.
It operates with a port size of 1/4 inch and follows the G connection thread standard.
The operating temperature range for this pneumatic valve is from -10°C to +60°C.
This valve uses a pilot/spring actuation type for smooth operation.
The MS4-DL-1/4 valve features 2 ports.
The valve is constructed with a durable aluminium body and Nitrile Rubber (NBR) seals.
The valve function is 2/2 with two positions, allowing for precise airflow control.
Yes, this valve is compliant with RoHS standards, ensuring environmental and safety compliance.
Common applications include automotive manufacturing, food and beverage processing, and general industrial facilities.
The minimum pilot pressure required for this valve is 4 bar.
This valve supports in-line mounting arrangements.
