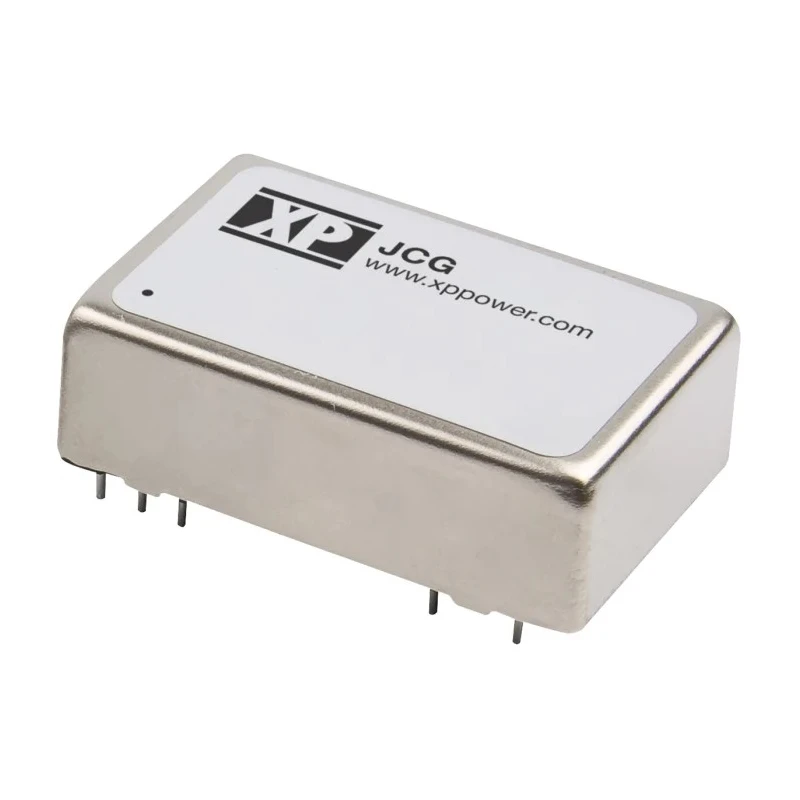

XP Power 12V dc 1A 12W Through Hole Isolated DC-DC Converter JCG1212S12

XP Power JCG1212S12 is a high performance 12W isolated DC-DC converter designed to provide reliable 12 V DC output at 1 A current from input voltages ranging between 9 V and 18 V DC. This converter is packaged in a DIP through-hole mount format with 24 pins, facilitating secure installation on printed circuit boards.

The JCG series from XP Power is well-regarded for its compact design and high power density. This model operates efficiently at 90%, making it suitable for power-sensitive applications.

The device supports a 2:1 input voltage ratio and delivers 1.6 kV DC isolation, ensuring safety and preventing interference in sensitive electronic circuits.

Operating temperatures range from -40°C up to 100°C, allowing it to function reliably in harsh industrial environments. The unit has a Mean Time Between Failures (MTBF) rating of 1,000,000 hours, indicating high reliability under typical use conditions.

The dimensions are compact with a length of 31.75 mm, width of 20.32 mm, and depth of 10.16 mm, facilitating usage in space-constrained applications. This product is RoHS compliant, adhering to environmental and hazardous substance regulations.

This DC-DC converter provides isolated output with 1.6 kV DC isolation for safety. It features high efficiency of 90%, ensuring energy savings during operation. Designed for robust performance over a wide operating temperature range from -40°C to 100°C.

Compact dimensions with 31.75mm length, 20.32mm width, and 10.16mm depth enable easy PCB mounting. Equipped with 24 pins and a DIP package type suitable for through-hole mounting. Rated for an MTBF of 1,000,000 hours, ensuring long-term reliability.

RoHS compliant, meeting environmental and safety standards. Ideal for use in industrial, laboratory, and electronic power supply applications.

XP Power’s JCG series DC-DC converters are widely utilized in industrial manufacturing, laboratory equipment, communication systems, and other electronic instrumentation requiring isolated power conversion. Their compact size and robust performance make them suitable for complex electronic designs needing efficient power solutions.
