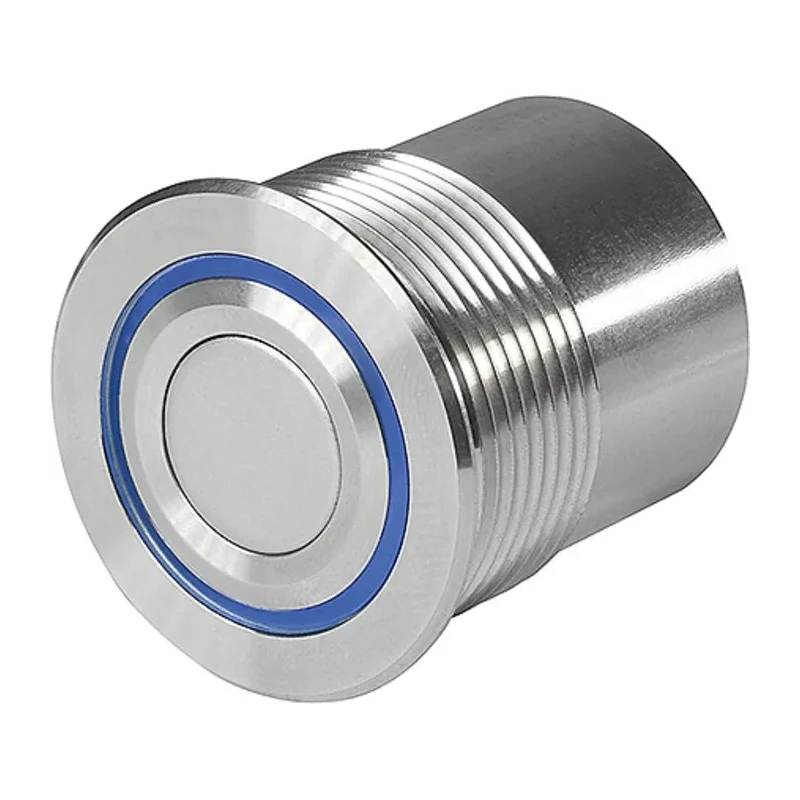

Schurter Illuminated Push Button Switch Panel Mount Momentary Flush Actuator Silver RGB LED 30 mm Cutout SPST MCS 1241.6456

Schurter 1241.6456 Illuminated Push Button Switch is part of the MCS 30 Series, designed for panel mounting with a 30 mm cutout. It features a momentary switch operation with a flush silver actuator, combined with SPST contact configuration and RGB LED illumination offering blue, green, and red colors for versatile status indication.

The switch provides reliable performance with a contact DC voltage rating of 48 V dc and a switching current of 125 mA, suitable for medical equipment, public and industrial applications, and household appliances. The multi-IP rating of IP40, IP65, and IP67 ensures protection from dust and moisture, making it suitable for hygiene-sensitive environments and vandal-resistant settings.

This push button switch supports up to 1 million actuations and includes a coded wire system for easy customization of color and luminosity. The sealed moving parts design prevents ingress of particulates and liquids, enhancing durability especially in medical and food-related applications.

Supplied with a nut and O-ring seal, it is suitable for a wide range of industrial uses including automation, control panels, and external installations where reliability and rugged design are essential. The standard compliance to DIN 50021-SS adds assurance for quality and performance.

Momentary switch operation designed for brief user activation. Silver actuator color for a sleek metal finish appearance. Flush actuator style providing a flat front design for user convenience. Panel cutout size of 30 mm ensures compatibility with standard panel holes.

Single Pole Single Throw (SPST) contact configuration for simple on/off control. RGB LED illumination supports multicolor display with blue, green, and red LEDs. Flexible wire terminal type facilitating easy wiring connections.

Rated IP40, IP65, and IP67 for protection against dust and water ingress in varied environments. Operational temperature range from -20°C to 60°C suitable for industrial applications. Designed for up to 1 million actuations ensuring durable long-life performance.
