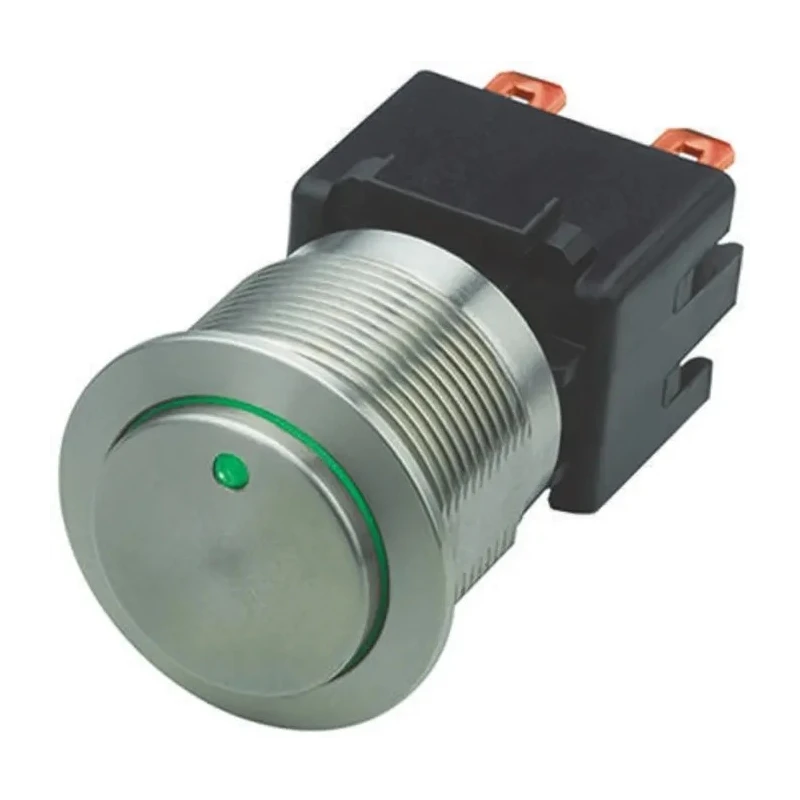

Schurter Illuminated Push Button Switch, MSM LA 19 Series, Latching, Panel Mount, 22 mm Cutout, DPDT 1241.6833.1122000

Schurter 1241.6833.1122000 Illuminated Push Button Switch MSM LA 19 Series is a rugged latching pushbutton switch designed for panel mounting in demanding industrial, automation, and electrical control environments.

This switch features a natural-colored button actuator with a green LED illumination that visually indicates operational status through a 180° viewing angle, enhancing operator awareness. Its double pole double throw (DPDT) contact arrangement supports versatile switching requirements with a robust 12A current rating and 30 V DC contact voltage capacity.

The MSM LA 19 Series pushbutton includes high-quality IP00 and IP64 rated housings that offer protection against ingress of dust and water, respectively. Its stainless steel anti-vandal and dust-resistant housing complies with IK07 shock resistance standards (DIN EN 50102), making it suitable for harsh industrial conditions.

The actuator requires a 10N operating force and provides a 4.5 mm travel with a protrusion of 3.7 mm above the panel when in the off state. Installation employs quick connect tab terminals that facilitate ease of wiring and maintenance.

The switch is specified for operation within a temperature range from -25°C to 85°C, ensuring reliability across wide environmental conditions. It supports up to 150,000 mechanical operations, guaranteeing a long service life.

This product carries multiple international certifications, including CSA, IEC, RoHS, and UL, attesting to its quality, safety, and environmental compliance. Suitable applications include industrial machinery control panels, automation systems, and electrical equipment requiring reliable panel switches with illuminated visual indication.

The switch features a natural-colored button actuator with a green LED for status indication. It has a 22 mm panel cutout size suitable for industrial control panels. Offers double pole double throw (DPDT) contact configuration with 12A contact current rating.

The housing is IP00/IP64 rated for protection against dust and water ingress where applicable. Capable of handling contact DC voltage of 30 V and operates reliably between -25°C and 85°C. Constructed for long life with up to 150,000 mechanical operations and includes anti-vandal stainless steel housing.

Quick connect tab terminals enable fast and secure wiring installation. The button requires a 10N operating force with a 4.5 mm travel distance. Suitable for harsh environments with IK07 shock resistance compliance. Certified to CSA, IEC, RoHS, and UL standards ensuring safety and quality compliance.
