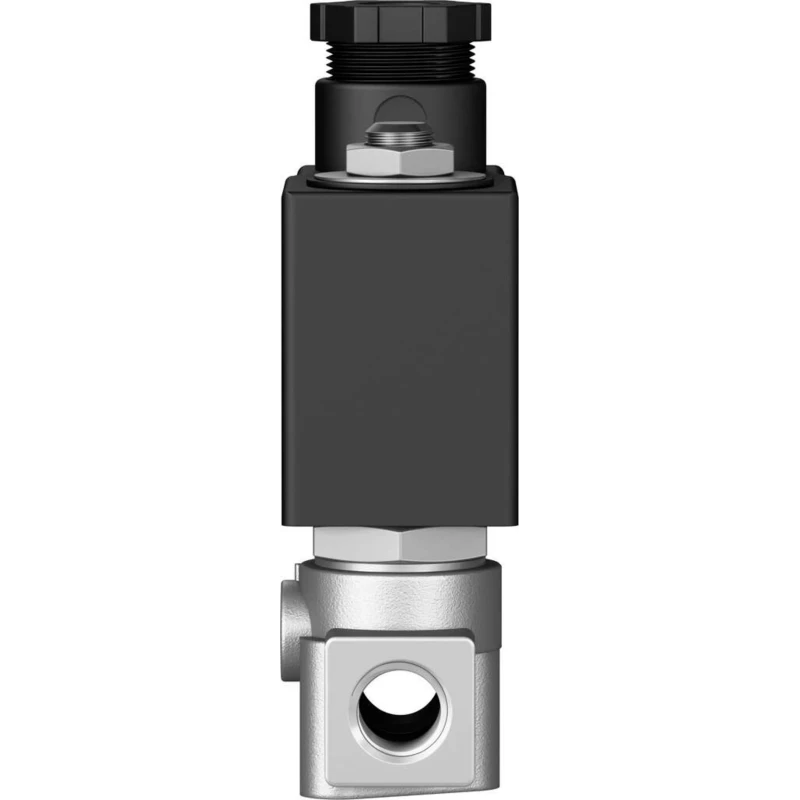

Festo Pneumatic Solenoid Valve 2/2 Solenoid/Spring G 1/4 in Port, Stainless Steel Body, 24V VZWD-L-M22C-M-G14-30-V-1P4-15-R1

Festo VZWD-L-M22C-M-G14-30-V-1P4-15-R1 Pneumatic Solenoid Valve is a reliable 2/2 solenoid and spring-actuated valve designed for precise flow control in pneumatic systems, operating at 24V DC with 11W power consumption. Its stainless steel body ensures high durability and corrosion resistance, ideal for demanding industrial environments.

This valve features a 1/4 inch port size with a G connection thread standard and female port gender, compatible with most pneumatic systems requiring compact and robust valve solutions. It offers a maximum operating pressure of 15 bar and a flow rate of 0.2 cubic meters per hour, suitable for low-flow, high-pressure applications.

The valve is normally closed (NC) for safety, using a mechanical spring for easy reset, ensuring reliable operation in case of power loss or system failure. Its in-line mounting style facilitates straightforward installation directly into fluid lines, minimizing space requirements and simplifying maintenance.

Designed to meet industrial standards, it complies with EN, ISO, and RoHS certifications and provides IP65 ingress protection against dust and low-pressure water jets, making it suitable for harsh environments. The valve operates efficiently across a temperature range from -10°C up to 35°C, with fluoroelastomer seals that provide excellent chemical resistance and longevity.

This pneumatic solenoid valve is ideal for various industrial applications including process automation, high-pressure cleaning equipment, and vacuum technology. It directly actuates the valve without requiring differential pressure, allowing use in negative pressure circuits. The normally closed design ensures flow is blocked during malfunctions, enhancing system safety.

The valve features a 1/4 inch port size with G connection thread standard. Operates at 24 volts DC with 11 watts power consumption for energy-efficient control. Maximum operating pressure is 15 bar with maximum flow rate of 0.2 cubic meters per hour.

Stainless steel body offers excellent durability and corrosion resistance. Fluoroelastomer seals provide chemical resistance and leak prevention. In-line mount type simplifies integration into existing pneumatic systems.

Normally closed valve function with mechanical spring reset ensures safe operation. Meets EN, ISO, and RoHS standards suitable for industrial use. IP65 rated for protection against dust and low-pressure water exposure. Manufactured in Germany, ensuring premium build quality and reliability.

This valve suits pneumatic actuators including cylinders, turbines, and diaphragms in industrial, laboratory, construction, HVAC, manufacturing, and water treatment applications. Browse our catalog for more Festo Pneumatic Solenoid Valves and related pneumatic components at EnvMart.
