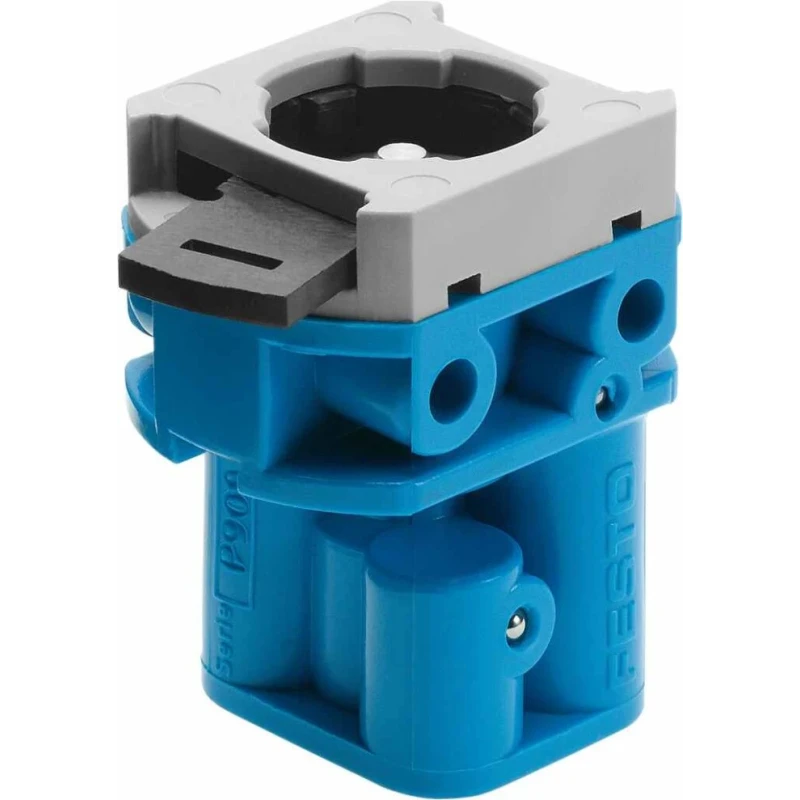

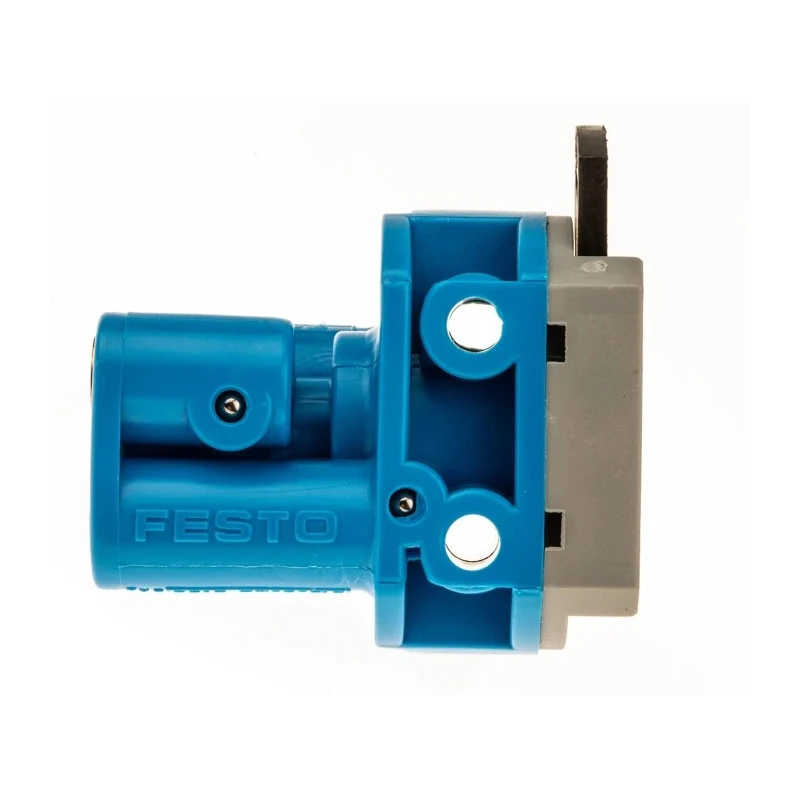

Festo Pneumatic Manual Control Valve SV Series M5 Threaded 3/2 Closed Monostable 8 Bar 65 L/min SV-3-M5
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Plastic |
| Maximum Operating Pressure | 8 bar |
| Height | 69.5mm |
| Length | 38mm |
| Model | SV-3-M5 |
| Width | 28mm |
| Series | SV |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +60°C |
| Thread Size | M5 |
| Port Type | Pneumatic |
| Number of Positions | 2 |
| Port Size | M5 |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 65L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | M |
| Valve Function | 3/2 Closed Monostable |
| Control Button/Switch Colour | Black, Green, Red |
| Festo Manual 1/8 mm Condensate Drain, SVS-3-1/8Brand | Festo |
Key Features
- The valve features M5 threaded pneumatic connections for compact installations.
- Constructed from lightweight polymer for durability and reduced mass.
- Operates reliably in temperatures from -10°C to +60°C.
- Black, green, and red control buttons provide clear manual actuation feedback.
- Suitable for automation lines, manual overrides, and process control applications.
- 3 ports enable simple supply and actuator routing.
- Two positions with a monostable return ensure safe default valve state.
- Designed for direct actuation of small pneumatic cylinders and pneumatic tooling.
Product Description
Festo SV-3-M5 pneumatic manual control valve is a lightweight, polymer-bodied valve designed for industrial pneumatic control applications. It offers a three-port, two-position monostable closed valve function enabling simple hand-operated directional control of compressed air with a maximum flow of 65 L/min and a pressure rating up to 8 bar. The M5 threaded connections facilitate compact pneumatic system integration in automation and mechanical assemblies.
Suitable for operating environments ranging from -10°C to +60°C, this valve features a three-color control button assembly in black, green, and red, enabling tactile manual selection and clear operator feedback. Its construction from durable plastic materials ensures longevity while maintaining low mass for easier installation and handling.
This valve is ideal for direct actuation of small pneumatic cylinders in automated assembly lines, manual overrides in electrical control panels or enclosures, and process sampling or vent control in instrumentation setups. The 3/2 closed monostable valve function provides a reliable safety default state, making it suitable for critical on-site pneumatic control tasks.
The valve offers 65 L/min maximum flow for responsive actuation and fast cycle times. Robust operating pressure rating of 8 bar supports integration into various pneumatic systems. Lightweight plastic body reduces overall system weight without compromising durability.
Monostable closed configuration with two distinct valve positions ensures reliable pneumatic control. Compact size with dimensions approximately 69.5mm height, 38mm length, and 28mm width enables space-saving installations.
M5 connection thread standard suits industry pneumatic fittings. The valve is compliant with RoHS directives, ensuring environmental safety standards. Applications include pneumatic tooling in manufacturing, manual overrides in test stations, and instrumentation ventilation control.
Set includes one Festo SV-3-M5 Pneumatic Manual Control Valve. Explore the comprehensive range of Pneumatic Manual Control Valves and related industrial automation products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 8 bar.
It has a maximum flow rate of 65 L/min.
The valve dimensions are approximately 69.5mm in height, 38mm in length, and 28mm in width.
This model features a 3/2 closed monostable valve function.
The valve is constructed from lightweight plastic materials.
It operates reliably in temperatures ranging from -10°C to +60°C.
This valve features three ports for pneumatic connections.
The valve has an M5 threaded connection size.
The control buttons are colored black, green, and red for clear manual actuation feedback.
Yes, it is compliant with RoHS directives, ensuring environmental safety standards.
It is suitable for automation lines, manual overrides, and process control applications.
The valve is manufactured in Germany.
