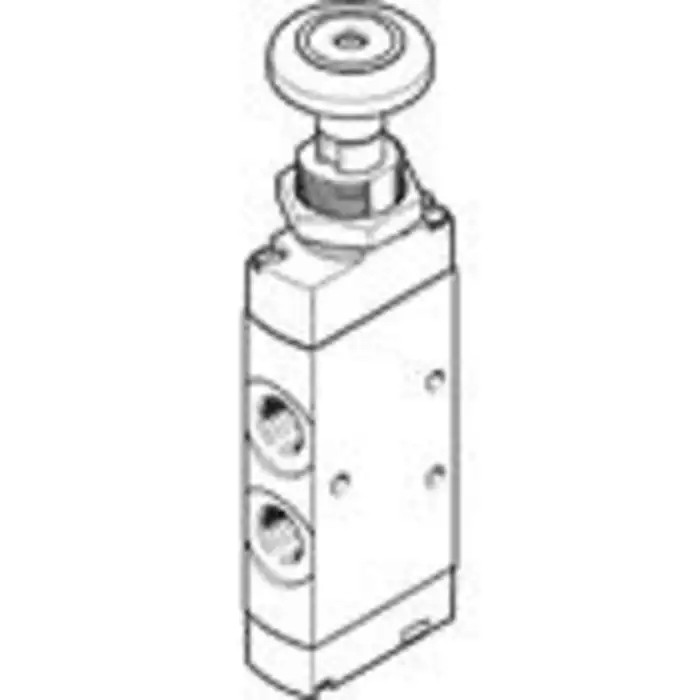

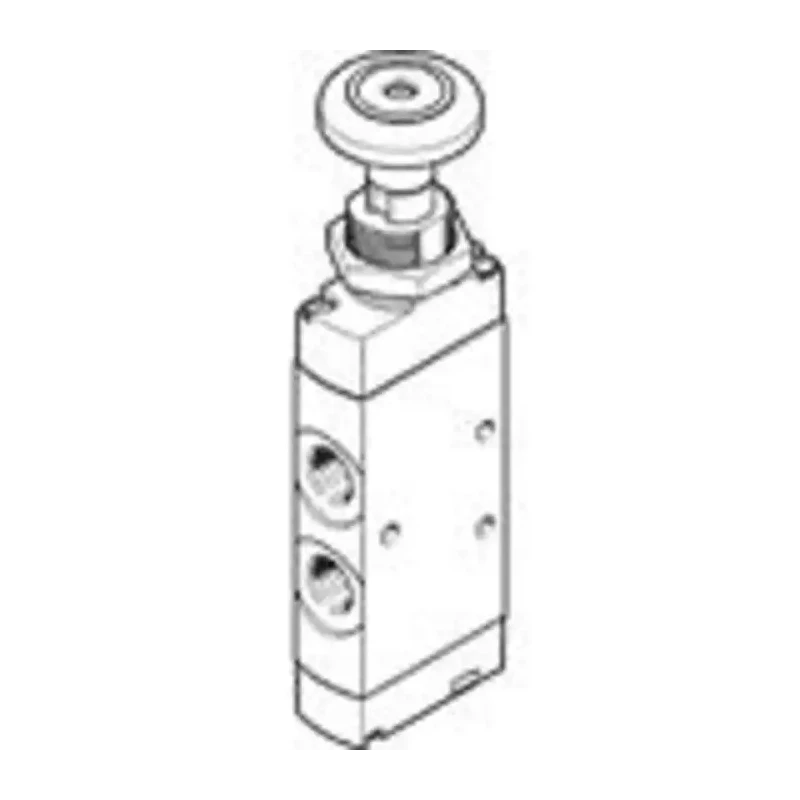

Festo Push Button Pneumatic Manual Control Valve VHEF Series, G 1/8 Port, 10 bar, 3/2 Valve Function VHEF-PTC-B32-G18
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 135.8mm |
| Length | 43.7mm |
| Model | VHEF-PTC-B32-G18 |
| Width | 20mm |
| Series | VHEF |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Thread Size | 1/8 in |
| Number of Positions | 2 |
| Port Size | G 1/8 |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 750L/min |
| Control Mechanism | Push Button |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Control Button/Switch Colour | Black |
| ISO8573-1 | 2010 |
Key Features
- Compact aluminium alloy body designed for durability and ease of installation.
- Push button control mechanism with black switch for precise actuation.
- Maximum flow rate of 750 L/min suitable for various pneumatic applications.
- Operates efficiently between -10°C and 60°C temperature range.
- Features 2 positions and 3 ports for versatile pneumatic control.
- Compact dimensions with 135.8mm height, 43.7mm length, and 20mm width for space-saving setups.
- Ideal for clamping or closing safety doors and general pneumatic systems.
- Silent and smooth operation with extended service life due to robust construction.
Product Description
Festo VHEF-PTC-B32-G18 is a high-quality push button Pneumatic Manual Control Valve from the VHEF series, engineered for industrial pneumatic applications requiring reliable 3/2 valve function with a maximum operating pressure of 10 bar. It features a durable aluminium alloy body, ensuring long service life and resistance to wear in demanding environments.
The valve’s push button control mechanism in black allows for direct actuation with minimal force, providing precise manual control. It offers a maximum flow rate of 750 L/min, making it suitable for a wide range of pneumatic control tasks. Operating temperature ranges from -10°C to 60°C, enabling use across different climate conditions.
Compact and robust design with dimensions of 135.8 mm in height, 43.7 mm in length, and 20 mm in width allows easy integration into pneumatic systems with tight space constraints. The valve functions with 2 positions and 3 ports, suitable for various industrial applications including clamping, closing safety doors, and machine control.
Its robust piston spool and disc seat design ensures smooth, silent operation and extended operational life. Installation flexibility is enhanced through mounting holes and front-panel mount capability (except for finger lever valve variants), simplifying setup and maintenance.
Manufactured in Brazil, the valve adheres to ISO8573-1:2010 quality standards. It is an excellent choice for industrial automation, manufacturing, fluid power, and other commercial pneumatic systems requiring dependable manual valve control.
Compact aluminium alloy body designed for durability and ease of installation. Push button control mechanism with black switch for precise actuation. Maximum flow rate of 750 L/min suitable for various pneumatic applications.
Operates efficiently between -10°C and 60°C temperature range. Features 2 positions and 3 ports for versatile pneumatic control. Compact dimensions with 135.8mm height, 43.7mm length, and 20mm width for space-saving setups.
Manufactured in Brazil with compliance to ISO8573-1:2010 standards. Ideal for clamping or closing safety doors and general pneumatic systems. Silent and smooth operation with extended service life due to robust construction.
Front-panel mounting compatible for flexible installation options. Explore EnvMart for a comprehensive range of pneumatic valves and industrial automation components suited for HVAC, manufacturing, and fluid control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
It has a maximum flow rate of 750 L/min, suitable for various pneumatic applications.
The valve has dimensions of 135.8 mm in height, 43.7 mm in length, and 20 mm in width.
This model operates efficiently between -10°C and 60°C.
It features 3 ports, allowing for versatile pneumatic control.
It utilizes a push button control mechanism for precise actuation.
Yes, it is compatible with front-panel mounting, enhancing installation flexibility.
The valve is constructed from a durable aluminium alloy, designed for longevity in demanding environments.
It provides a 3/2 valve function, suitable for various industrial applications.
It adheres to ISO8573-1:2010 quality standards, ensuring reliability in pneumatic systems.
The port size is G 1/8, which is standard for many pneumatic applications.
This valve is manufactured in Brazil.
