SMC Push Button Pneumatic Manual Control Valve VZM500 Series Rc 1/8 Thread 5/2 Function 0.7 MPa Max Pressure VZM550-01-33



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	121mm
Length	28mm
Model	VZM550-01-33
Width	18mm
Series	VZM500
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Port Size	Rc 1/8
Minimum Operating Temperature	-5°C
Control Mechanism	Push Button
Connection Thread Standard	Rc

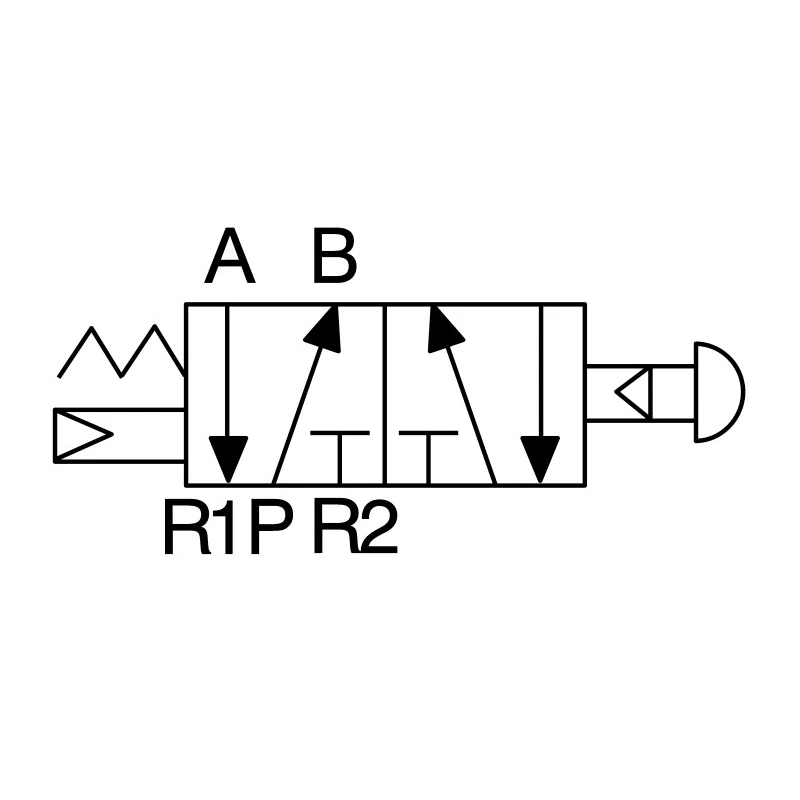

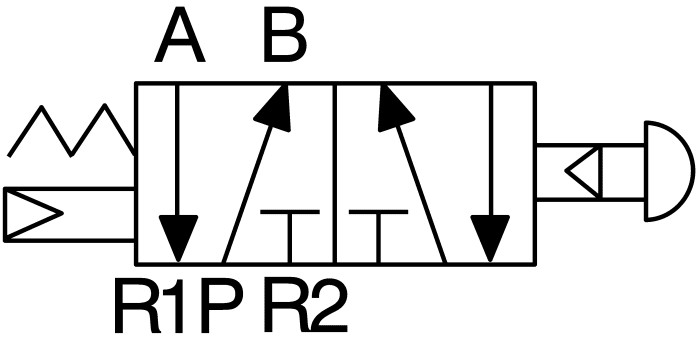

Valve Function	5/2
Control Button/Switch Colour	Green, Black, Yellow, Red
G1/8 5 port push button/spring valveBrand	Parker
SMC Push Pull Mechanical Valve VZM500 Series, Rc, NPT Rc 1/8, III BBrand	SMC

Key Features

Operates under a maximum pressure of 0.7 MPa.
Suitable for temperatures from -5°C to 50°C for reliable industrial use.
Manual push button control mechanism for easy actuation.

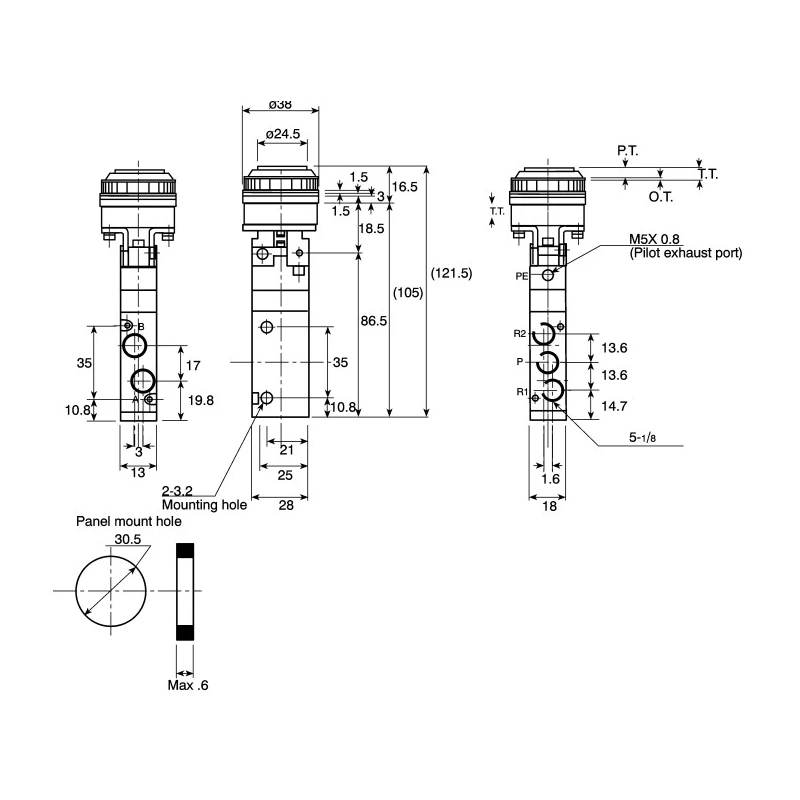

Compact dimensions of 121mm height, 28mm length, and 18mm width aid installation.

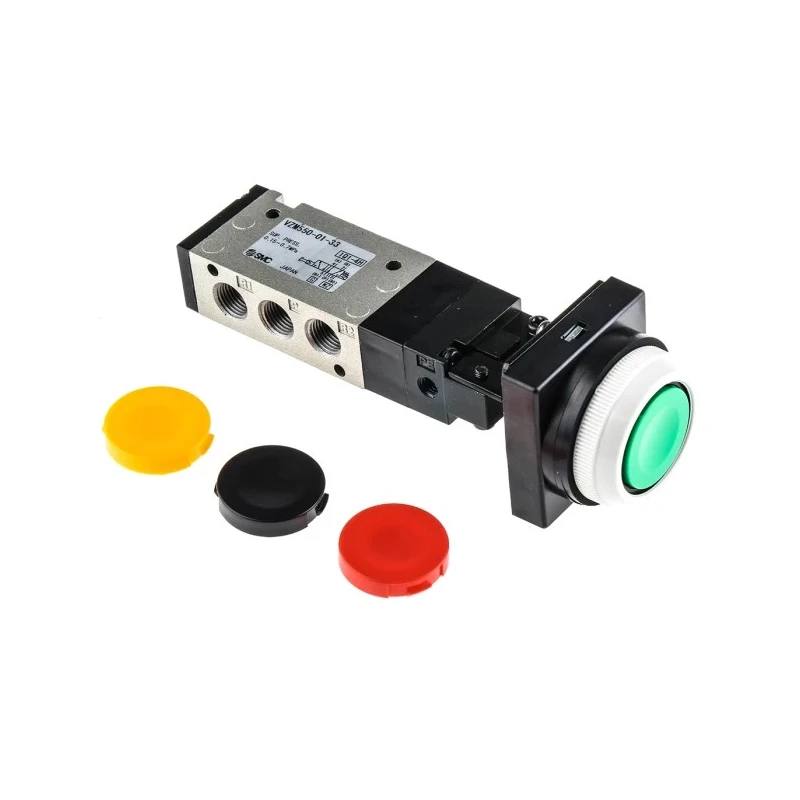

Available push button colors include green, black, yellow, and red for versatile interface options.
No lubrication required for standard operation, reducing maintenance needs.
Constructed from durable ADC material to withstand operational stresses.
Designed for 5-port pneumatic connections with Rc 1/8 thread standard.

Product Description

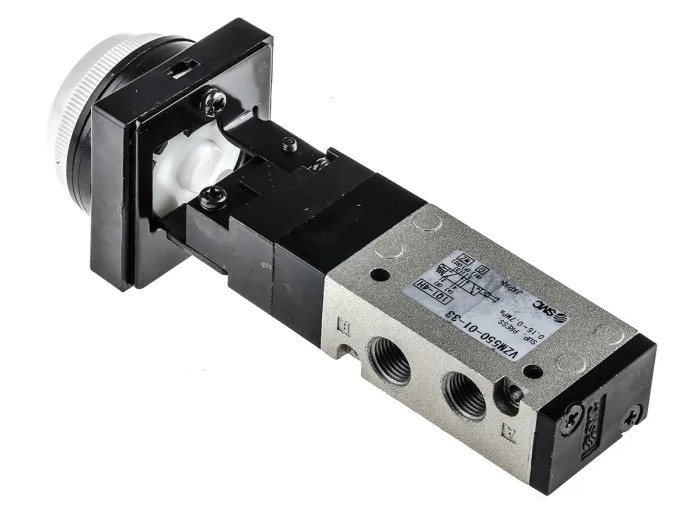

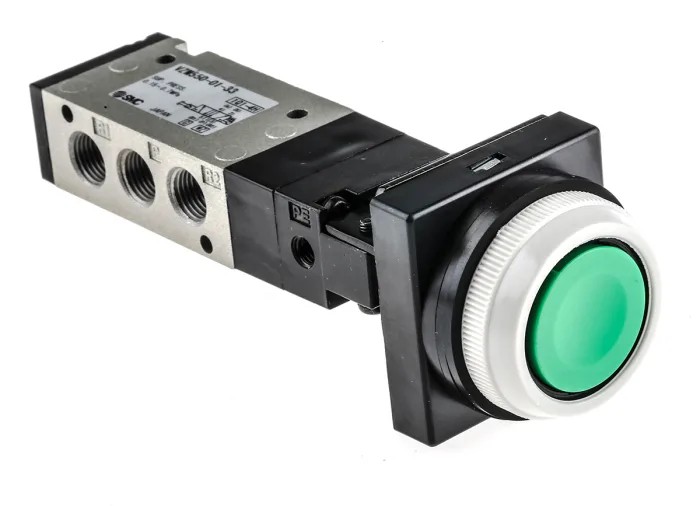

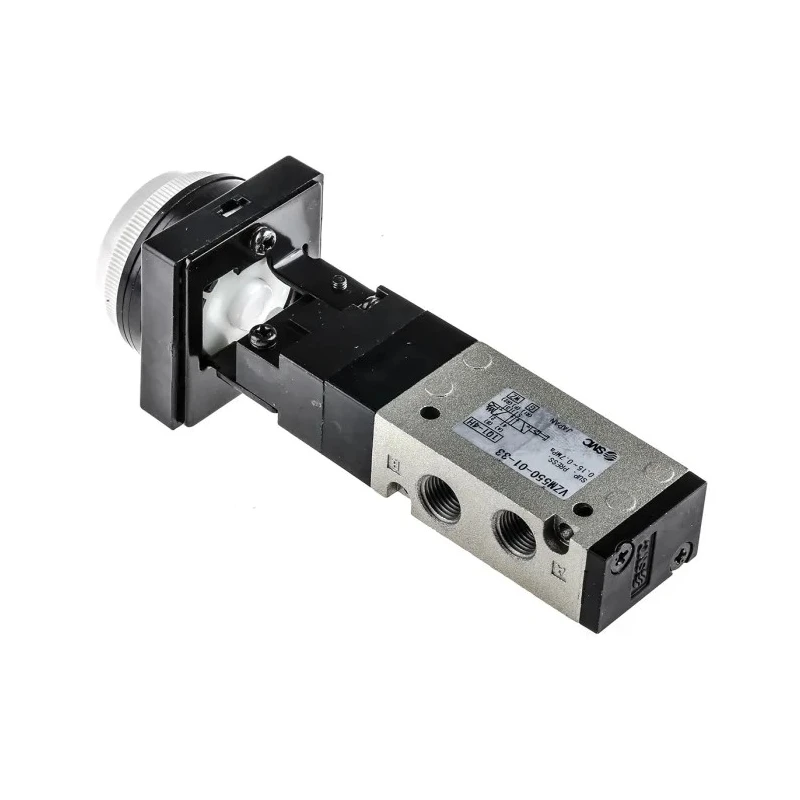

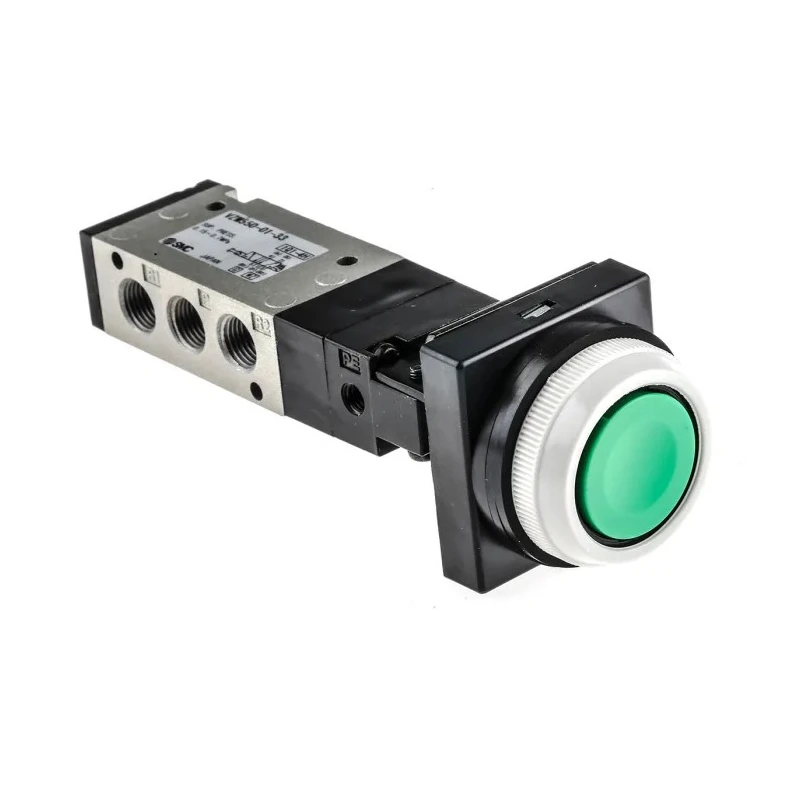

SMC VZM550-01-33 Push Button Pneumatic Manual Control Valve, part of the VZM500 Series, features a 5/2 valve function with an easy-to-use manual push button control mechanism. This valve is engineered for precise pneumatic control in various industrial automation applications where reliable manual operation is essential.

It supports a maximum operating pressure of 0.7 MPa and functions efficiently within a temperature range from -5°C to 50°C, ensuring dependable performance under varied environmental conditions. The valve’s compact dimensions - height of 121mm, length of 28mm, and width of 18mm - facilitate easy integration within confined spaces.

The valve includes multiple push button color options (green, black, yellow, red) to suit different user interfaces, enhancing operational ergonomics. Constructed from ADC material, it is durable and built to endure repetitive cycles up to 300 per minute, making it highly suitable for automation and pneumatic system applications requiring manual input.

Lubrication is not necessary for standard usage, simplifying maintenance routines; however, if lubrication is desired, turbine oil Class 1 ISO VG32 is recommended. The Rc 1/8 threaded ports allow for standardized piping connections across all exhaust ports, facilitating versatile installation options.

Typical applications include industrial pneumatic control systems, automated machinery requiring manual valve actuation, and environments where control precision and exhaust noise reduction are priorities. This valve is manufactured in Japan and adheres to high-quality standards ensuring long operational life and consistent performance.

Operates under a maximum pressure of 0.7 MPa. Manual push button control mechanism for easy actuation. Compact size for versatile installation. Multiple color options improve user interface. No lubrication required for standard use.

Durable ADC material construction. Temperature range from -5°C to 50°C. 5-port Rc 1/8 threaded connections. Explore our extensive range of Pneumatic Manual Control Valves and other industrial valve solutions at EnvMart for precise and reliable fluid power control.
