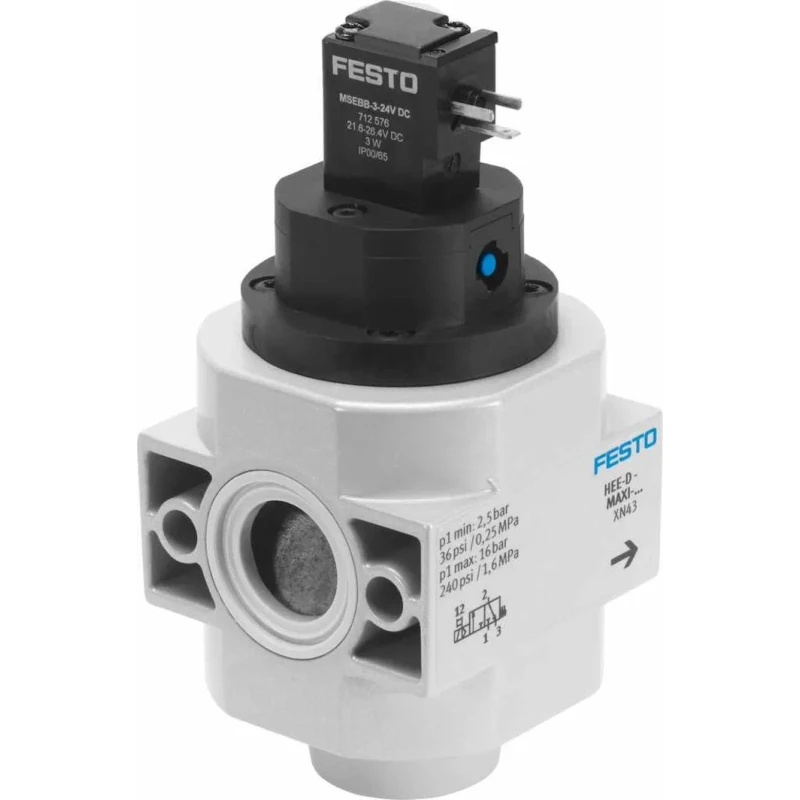

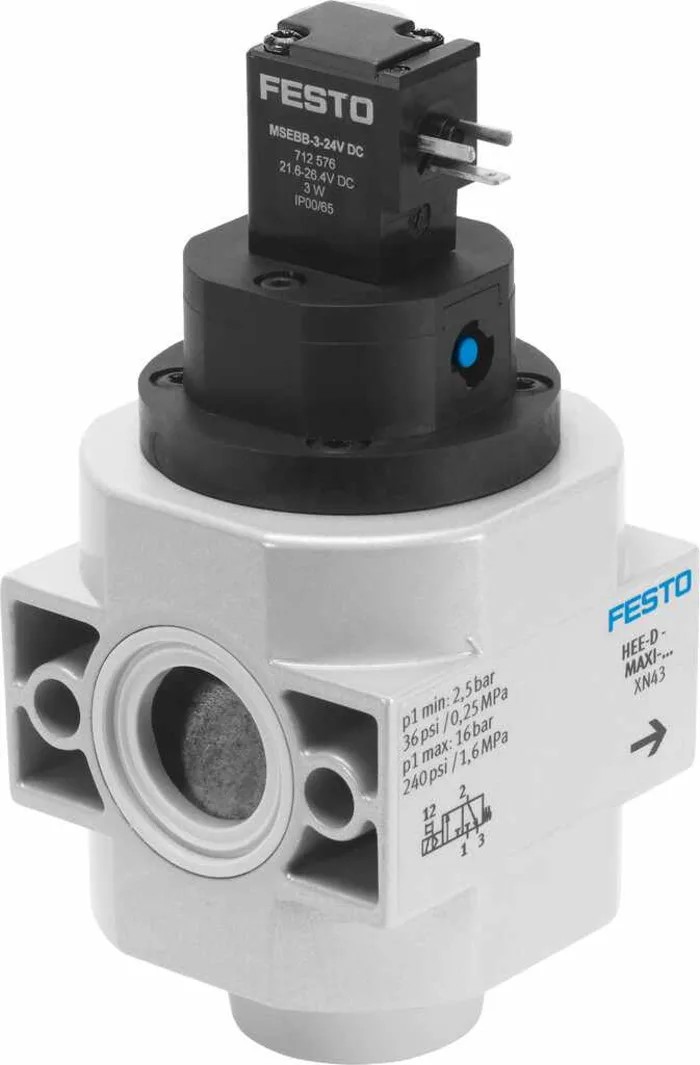

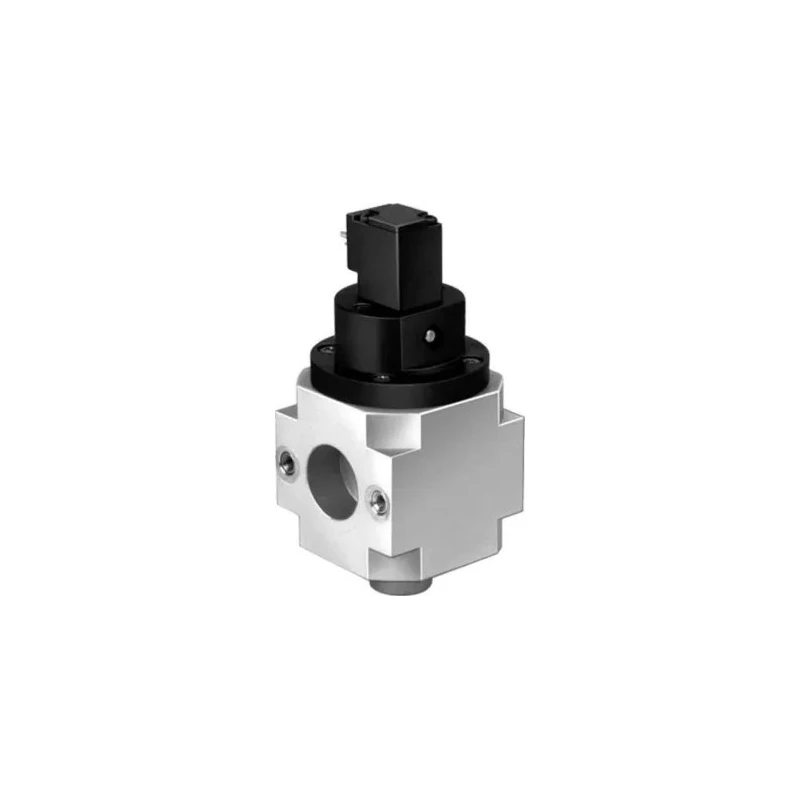

Festo Piloted Pneumatic Manual Control Valve HEE Series, G 3/8, Aluminium Body, 3/2 Closed Monostable, 16 Bar HEE-D-MAXI-24
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 16 bar |
| Length | 135mm |
| Model | HEE-D-MAXI-24 |
| Series | HEE |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +60°C |
| Thread Size | 3/8 in |
| Number of Positions | 2 |
| Port Size | G 3/8 |
| Minimum Operating Temperature | -10°C |
| Control Mechanism | Piloted |
| Connection Thread Standard | G |
| Valve Function | 3/2 Closed Monostable |
| Standards/Approvals ISO8573-1 | 2010 (7:4:4), Conforms to RoHS |
| Festo G 1 FRL, Manual Drain Integrated Pressure Gauge, 562940Brand | Festo |
Key Features
- Designed for pressurising and venting pneumatic installations with fast solenoid actuation.
- Operates efficiently across a broad pressure range from 2.5 bar to 16 bar.
- Constructed with corrosion-resistant aluminium die-cast housing and nitrile butadiene rubber (NBR) seals.
- Suitable for ambient temperatures ranging from -10°C to +60°C.
- Compact 135mm length with G 3/8 connection thread standard ensuring easy installation.
- Solenoid valve is repositionable in four 90° increments for versatile piping configurations.
- Electrical actuation with mechanical spring return allows fast and noise-free operation.
Product Description
Festo HEE-D-MAXI-24 is a high-quality piloted pneumatic manual control valve from the HEE series, designed for reliable control of pneumatic systems in industrial, manufacturing, and fluid power applications.
This 3/2 closed monostable valve uses a piston gate design providing tight sealing and long durability. It features robust aluminium die-cast body that offers excellent mechanical strength and corrosion resistance, combined with NBR seal material to withstand harsh environmental conditions and chemicals.
The valve operates at a maximum pressure of 16 bar and is suitable for use in ambient temperatures from -10°C to +60°C, making it ideal for challenging industrial environments. The manual control valve supports G 3/8 ports with standard G connection threads, facilitating easy integration in pneumatic piping networks.
The solenoid valve component enables fast response times and can be repositioned by four 90° turns, enhancing installation flexibility in modular systems. The valve is electrically actuated and resets quickly via a mechanical spring return. Noise reduction can be achieved by attaching a muffler or ducting exhaust air at port 3.
This valve conforms to ISO8573-1:2010 (7:4:4) air quality standards and RoHS compliance, ensuring reliability and environmental safety. Its compact length of 135mm aids in space-saving installations.
Fast response solenoid actuation combined with mechanical spring return for reliable operation. Soft-sealing piston gate valve design provides durability and tight shutoff. Corrosion-resistant aluminium body and chemical-resistant NBR seals.
Repositionable solenoid valve for versatile modular system integration. Wide operating pressure and temperature ranges enhance application flexibility. Standard G 3/8 connection thread for seamless pipeline compatibility.
Noise reduction via muffler or exhaust air ducting at port 3. ISO8573-1 and RoHS compliant for industrial quality assurance.
This Festo piloted Pneumatic Manual Control Valve is suited for a wide range of industrial uses including fluid power controls, industrial automation, HVAC systems, and manufacturing processes requiring precise pressure and flow control.
Explore the range of pneumatic control valves and components available at EnvMart for integrating efficient pneumatic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 16 bar.
It can operate in ambient temperatures ranging from -10°C to +60°C.
This valve features a G 3/8 connection thread standard, facilitating easy installation in pneumatic piping systems.
The length of this model is 135mm.
It operates as a 3/2 closed monostable valve, which means it has three ports and two positions.
The valve is constructed with a corrosion-resistant aluminium body and nitrile butadiene rubber (NBR) seals.
Yes, the solenoid valve can be repositioned in four 90° increments for flexible installation.
This valve conforms to ISO8573-1:2010 (7:4:4) air quality standards and is RoHS compliant.
The control mechanism of this model is piloted, allowing for efficient operation in pneumatic systems.
This valve has three ports.
It is suitable for fluid power controls, industrial automation, HVAC systems, and manufacturing processes requiring precise pressure and flow control.
The HEE-D-MAXI-24 has two positions.
