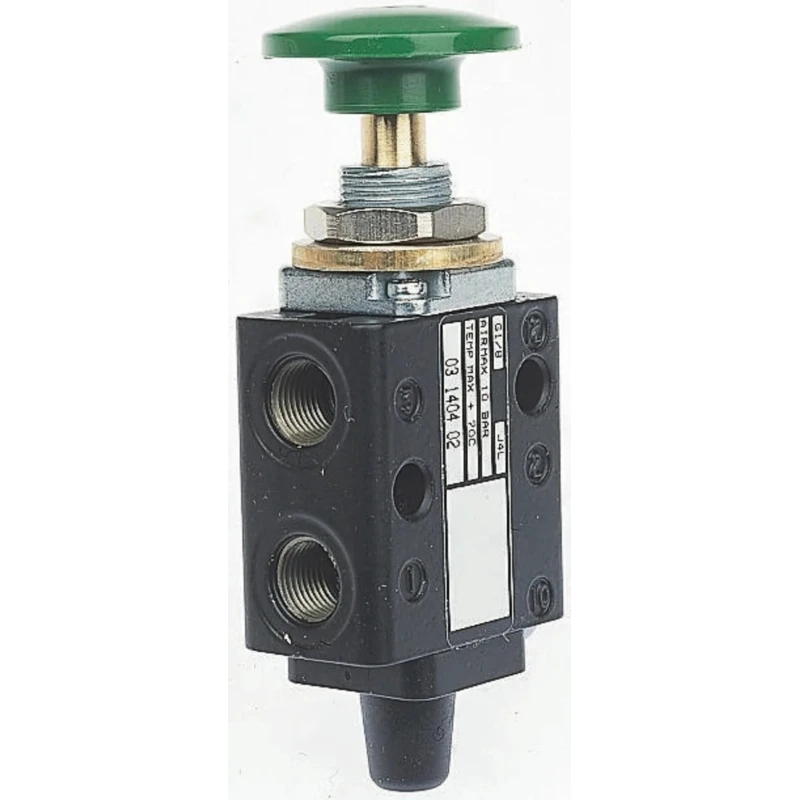

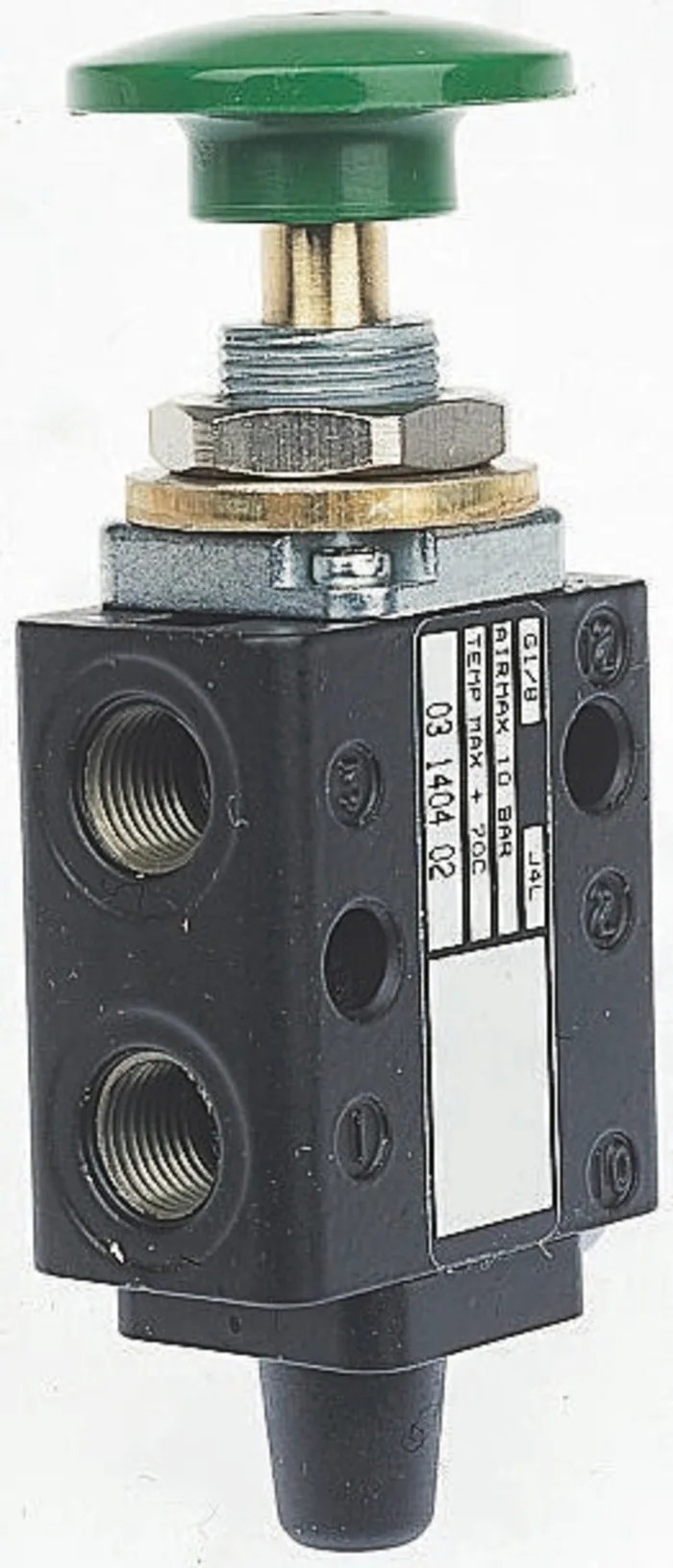

Norgren Knob Pneumatic Manual Control Valve 03 Series, G 1/8 Threaded Port, 3/2 Function, Polymer Body 03140402
Specifications
| Country of Origin | China |
|---|---|
| Brand | Norgren |
| Body Material | Polymer |
| Maximum Operating Pressure | 8 bar |
| Height | 42mm |
| Length | 115mm |
| Model | 03140402 |
| Width | 45mm |
| Series | 03 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +70°C |
| Thread Size | 1/8 in |
| Port Type | Threaded |
| Number of Positions | 2 |
| Port Size | G 1/8 |
| Minimum Operating Temperature | 0°C |
| Maximum Flow Rate | 335L/min |
| Control Mechanism | Knob |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Port Gender | Female |
| Control Button/Switch Colour | Green |
Key Features
- The valve features a green knob for easy and quick operation.
- It has threaded G 1/8 female ports for quick and secure hose or pipe connections.
- Maximum operating pressure is 8 bar with a flow rate of up to 335 L/min.
- The valve operates reliably between 0°C and +70°C ambient temperature.
- Its compact dimensions of 115 mm length, 45 mm width, and 42 mm height enable space-efficient installation.
- The 3/2 function allows air flow through three ports with two control positions.
- Body made of corrosion-resistant polymer material ensures longevity in demanding environments.
- Suitable for use with pneumatic cylinders up to 50 mm bore for hydraulic, medical, and oil & gas industry applications.
Product Description
Norgren 03140402 Knob Pneumatic Manual Control Valve 03 Series is a manual control valve designed to regulate compressed air flow in pneumatic systems, featuring a green knob for fast, intuitive operation and a polymer body that provides resistance to corrosion and chemicals.
This pneumatic valve uses a 3/2 function enabling control of air through three ports and two positions, facilitating precise flow modulation. It incorporates G 1/8 female threaded ports for quick connection to hoses or pipes without the need for specialized tools, ensuring easy installation and maintenance.
The valve operates efficiently at a maximum pressure of 8 bar and can handle flow rates up to 335 L/min. It is engineered for a temperature range from 0°C to +70°C, making it suitable for harsh industrial environments.
Its compact form factor measures 115 mm in length, 45 mm in width, and 42 mm in height, allowing it to be integrated easily into various pneumatic systems. The polymer body enhances durability, providing reliable performance in hydraulic equipment, medical technology, and oil and gas industries.
With a modular design, this valve can be combined with other manual control valves for customizable flow control systems. It is specifically designed for use with cylinders with bores up to 50 mm, simplifying assembly and operation.
The valve’s polymer body is corrosion and chemical resistant. The green control knob ensures easy identification and operation. Threaded G 1/8 connections allow straightforward installation. Maximum operating pressure rating of 8 bar for robust performance.
Flow rate capacity up to 335 L/min supporting efficient air handling. Suitable operating temperature range between 0°C and +70°C. Compact size ideal for installation in tight pneumatic setups. 3/2 function for multiple flow control options.
Applicable in hydraulic, medical, and oil and gas industrial sectors.
This Norgren pneumatic manual control valve 03140402 is an essential component for controlling and regulating airflow in various industrial and commercial pneumatic applications. Explore the Pneumatic Manual Control Valves category at EnvMart for compatible and complementary equipment options to build complete pneumatic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 8 bar.
This model has a maximum flow rate capacity of up to 335 L/min.
It operates efficiently within a temperature range of 0°C to +70°C.
It features G 1/8 female threaded ports for easy connection to hoses or pipes.
The dimensions of this valve are 115 mm in length, 45 mm in width, and 42 mm in height.
This valve uses a knob control mechanism for operation.
It has three ports and operates with a 3/2 function, allowing control of air flow through two positions.
The body of this valve is made from corrosion-resistant polymer material.
It is suitable for use in hydraulic, medical, and oil & gas industry applications.
Yes, it is designed for use with pneumatic cylinders up to 50 mm bore.
The control knob is green, allowing for easy identification and operation.
Yes, its polymer body provides resistance to corrosion and chemicals, making it suitable for harsh environments.
