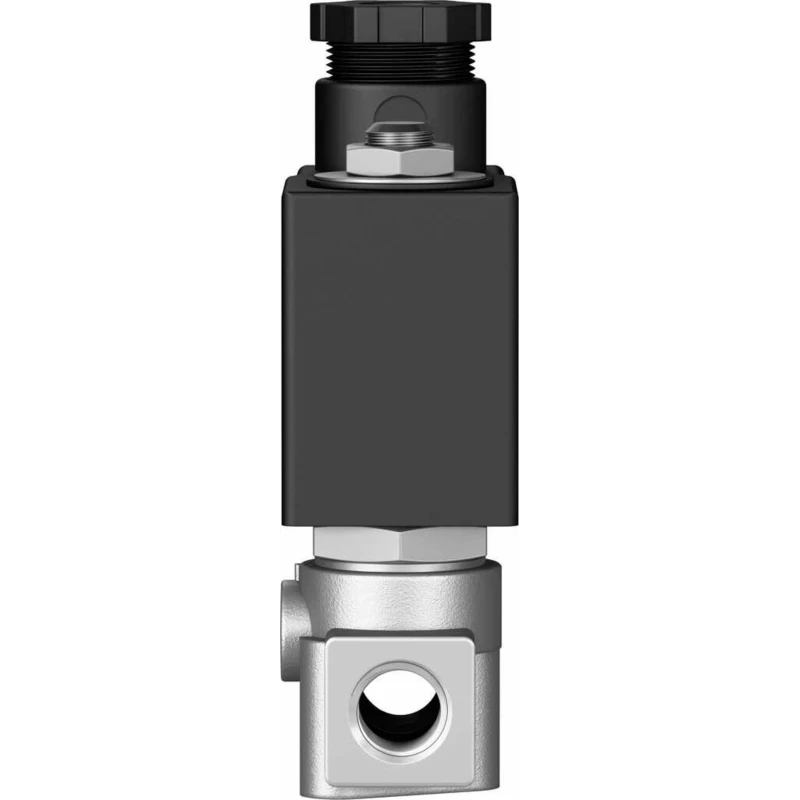

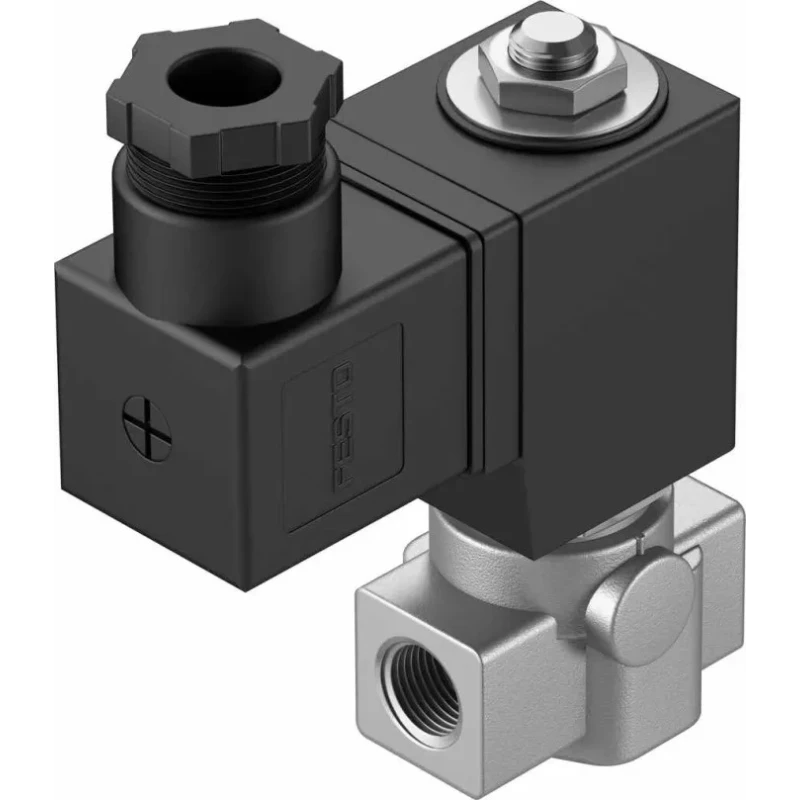

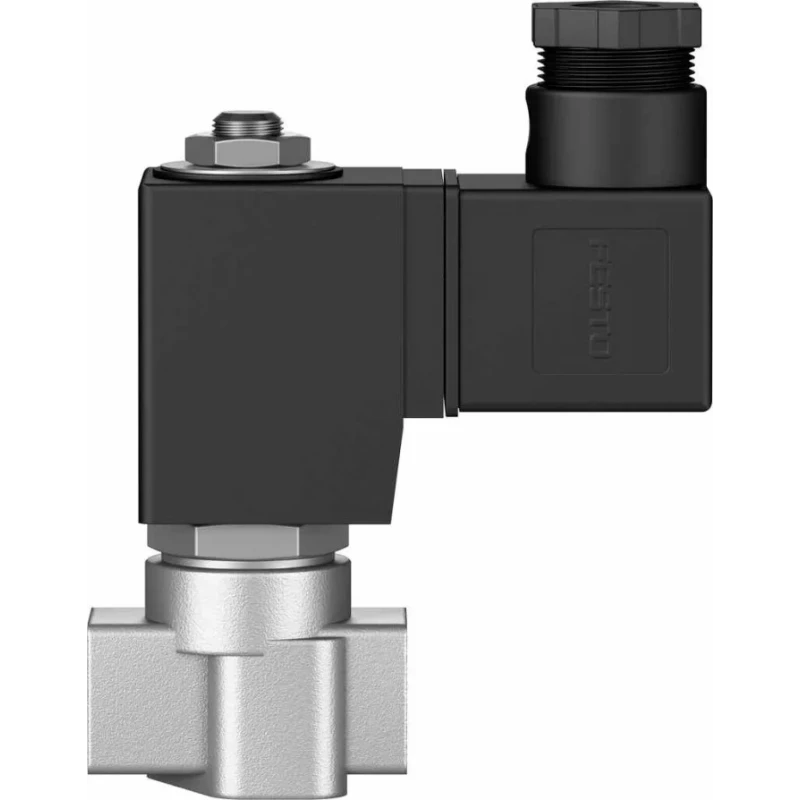

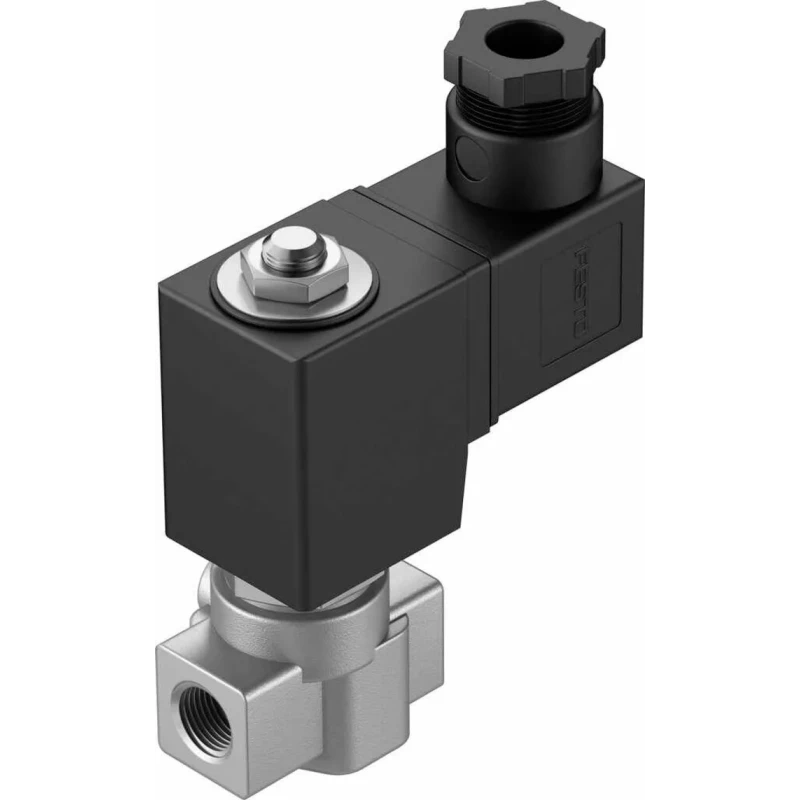

Festo Pneumatic Solenoid Valve 2/2 Solenoid Spring G VZWD Series 24V Voltage 24V Power 11W VZWD-L-M22C-M-G14-30-V-1P4-15
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V |
| Brand | Festo |
| Body Material | Brass |
| Maximum Operating Pressure | 15 bar |
| Model | VZWD-L-M22C-M-G14-30-V-1P4-15 |
| Mount Type | In-Line |
| Series | VZWD |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 80°C |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Fluorelastomer |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 210L/min |
| Standards/Approvals | ISO, EN, RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0bar |
| Valve Function | 2/2 |
| Electrical Connection Type | Plug Connector |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 11W |
Key Features
- Operates at 24V with a solenoid power consumption of 11W.
- Features a 1/4 inch port size with G standard connection thread and female port gender.
- Constructed with durable brass body material and fluorelastomer seal material.
- Designed for normally closed operation with two ports and two positions.
- Sealed to IP65 rating for protection against dust and low-pressure water.
- Suitable for industrial use in process automation, vacuum technology, and high-pressure cleaning equipment.
- Electrical connection type is plug connector for easy installation.
- Maximum flow rate of 210 L/min and maximum operating temperature of 80°C.
Product Description
Festo VZWD-L-M22C-M-G14-30-V-1P4-15 Pneumatic Solenoid Valve 2/2 Solenoid Spring G VZWD Series 24V offers reliable operation in industrial and laboratory fluid power and pneumatic systems. Operating at 24 volts with an 11-watt solenoid power consumption, this valve is designed to control air, process gas, or water flow with a maximum pressure capacity of 15 bar.
The valve features a brass body with fluorelastomer seals, ensuring excellent durability and corrosion resistance. Its inline mount design enables straightforward installation directly in fluid lines. The valve function is normally closed (NC), providing safety by blocking flow when unpowered or malfunctioning. With a port size of 1/4 inch and a G standard connection thread, it is compatible with common pneumatic systems and features female port gender.
The VZWD series valve boasts an IP65 ingress protection rating, offering protection against dust and low-pressure water jets. It supports a maximum flow rate of 210 liters per minute, making it suitable for precision control in high-pressure applications with low flow requirements.
Typical applications include high-pressure cleaning equipment, process automation, and vacuum technology. The valve's two-port, two-position configuration allows it to manage pneumatic actuators effectively, such as cylinders, turbines, and diaphragms. The electrical connection uses a plug connector for easy integration into automation systems.
This valve is manufactured in Germany and conforms to international standards including ISO, EN, and RoHS. It is supplied new and ready for integration into industrial and commercial pneumatic control systems.
Operates at 24V with 11W solenoid power consumption. Brass body with fluorelastomer seals ensures durability and corrosion resistance. IP65 rated for dust and low-pressure water resistance. Suitable for use in process automation, vacuum technology, and cleaning equipment.
Inline mounting facilitates easy installation in fluid power systems. Maximum operating pressure of 15 bar and flow rate of 210 L/min. Normally closed valve configuration enhances system safety. Plug connector electrical connection for convenience.
Manufactured in Germany with ISO, EN, and RoHS compliance. Explore more Pneumatic Solenoid Valves and related automation components in the Industrial Supplies category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 15 bar.
It features a plug connector for easy electrical integration.
This valve has a maximum flow rate of 210 liters per minute.
The valve has a 1/4 inch port size with a female port gender.
It is constructed with a brass body and fluorelastomer seals, ensuring durability and corrosion resistance.
The maximum operating temperature is 80°C, while the minimum operating temperature is -10°C.
This valve is designed as a normally closed (NC) 2/2 valve, meaning it blocks flow when unpowered.
It conforms to international standards including ISO, EN, and RoHS.
The valve features two ports and two positions.
It utilizes a solenoid/spring actuation type.
It is suitable for use in process automation, vacuum technology, and high-pressure cleaning equipment.
This model is manufactured in Germany.
