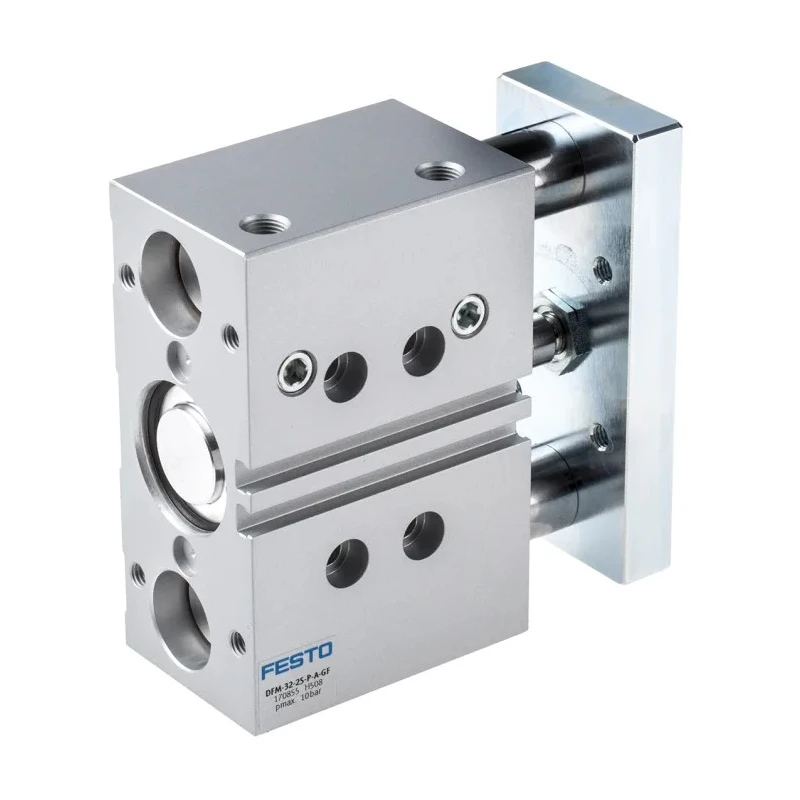

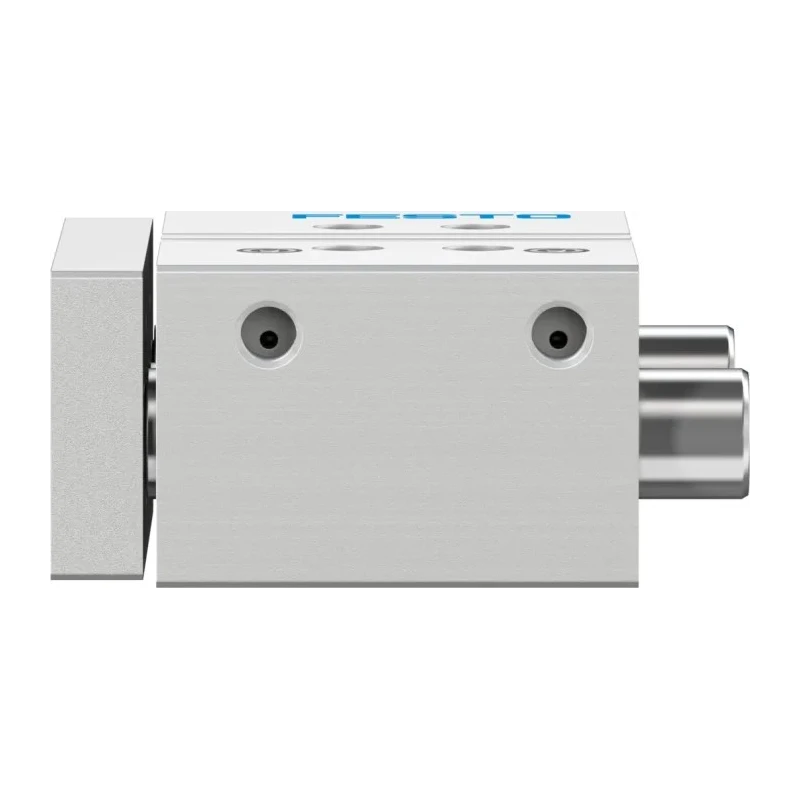

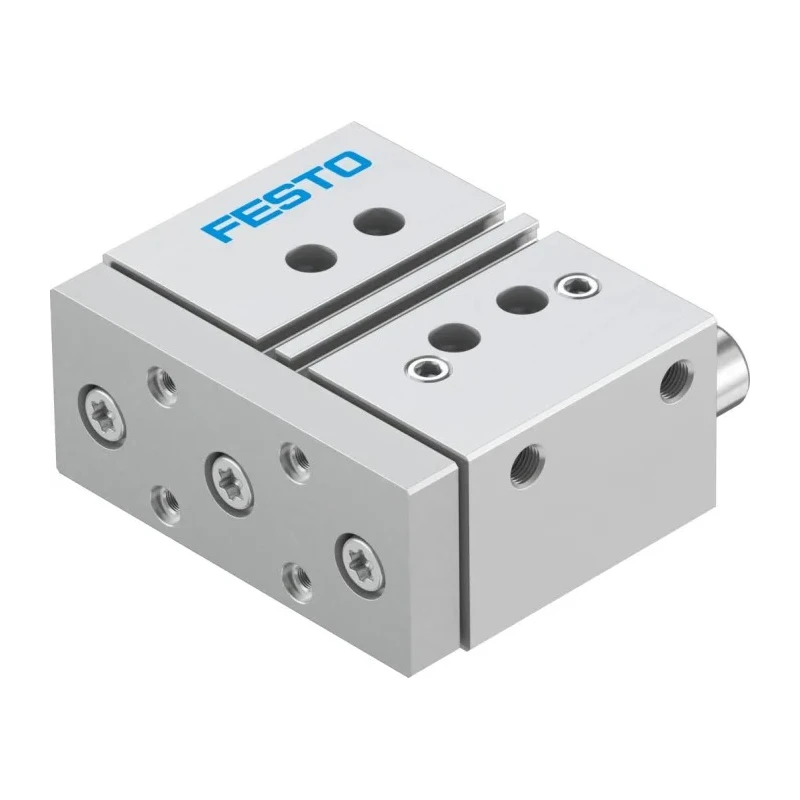

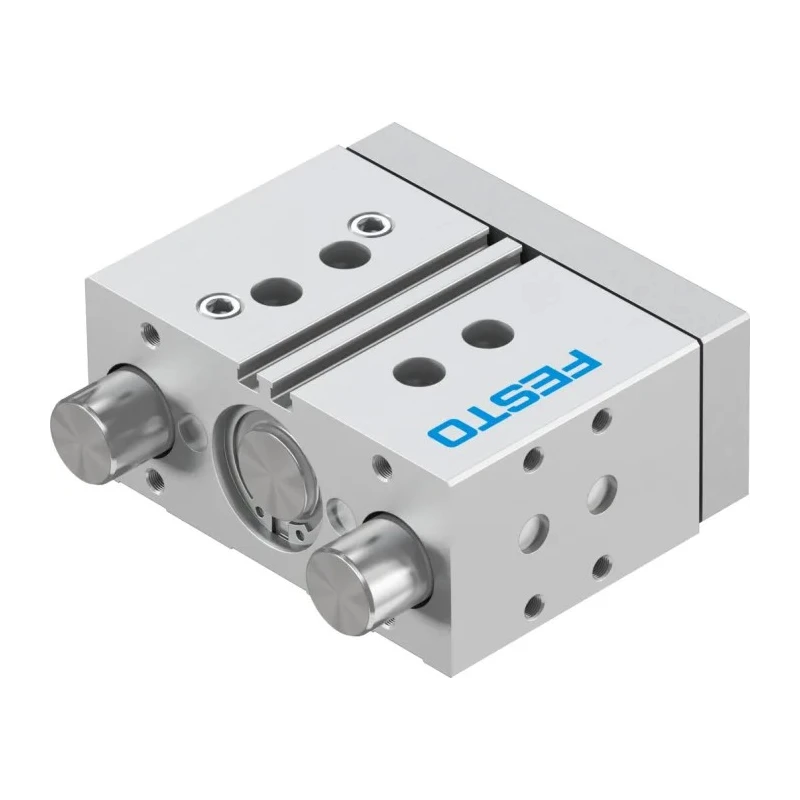

Festo Pneumatic Guided Cylinder 32mm Bore 25mm Stroke Double Acting Through Hole Mount DFM-32-25-P-A-GF

Festo DFM-32-25-P-A-GF Pneumatic Guided Cylinder is a robust and precision-engineered actuator designed for industrial automation and fluid power applications. Featuring a 32mm bore diameter and a 25mm stroke length, this double acting pneumatic cylinder incorporates integrated guidance to deliver accurate linear motion with minimal lateral play.

The cylinder’s body is made from wrought aluminium alloy, providing a strong yet lightweight solution that is corrosion resistant. It mounts securely using through hole mounting for firm attachment to machine frames or subassemblies. The piston rod is of single type, guided by a plain bearing system to ensure smooth and precise travel. Elastic cushioning rings help absorb impact loads, protecting the mechanism and enhancing operational smoothness during stops.

This model efficiently handles a maximum operating pressure of 10 bar and piston speeds up to 0.8 m/s, offering high-speed performance suited for pick-and-place equipment, clamp units, indexing tables, assembly fixtures, and press-on operations demanding compact guided travel.

The pneumatic cylinder conforms to industry standards such as ISO 8573-1:2010 (7:4:4) for air quality, RoHS for environmental compliance, and ISO 1179-1 and ISO 228-1 for thread standards, ensuring dependable integration with standard pneumatic components.

Operating temperature conditions are broad, from -20°C to 80°C, making it adaptable across many industrial environments. Double acting pneumatic guided cylinder for precise linear motion and repeatable positioning. 32mm bore and 25mm stroke optimize compactness and speed for automated tasks.

Through hole mounting enables secure mechanical integration. Wrought aluminium alloy construction is lightweight and corrosion resistant. Plain bearing and elastic cushioning rings enhance accuracy and reduce wear. 10 bar pressure rating supports powerful pneumatic actuation.

Max piston speed of 0.8 m/s for fast cycling operation. Conforms to key ISO standards ensuring compatibility and reliability.

Ideal for use in industrial automation, laboratory automation, manufacturing, and material handling systems, this Festo Pneumatic Guided Cylinder delivers precise and repeatable performance. Explore our broad range of pneumatic cylinders and actuators in the Industrial Tools & Equipment category at EnvMart.
