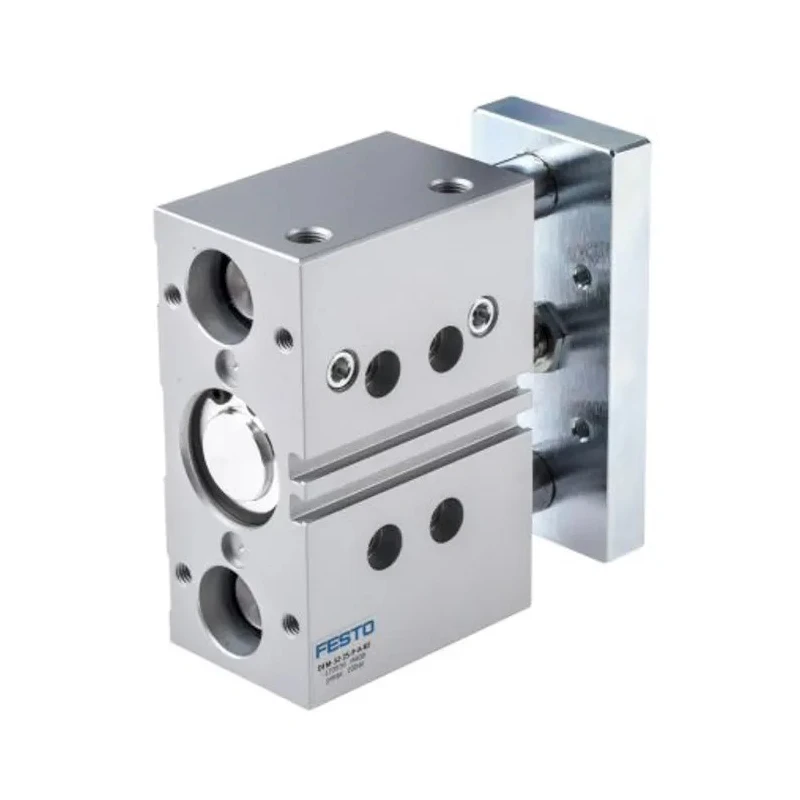

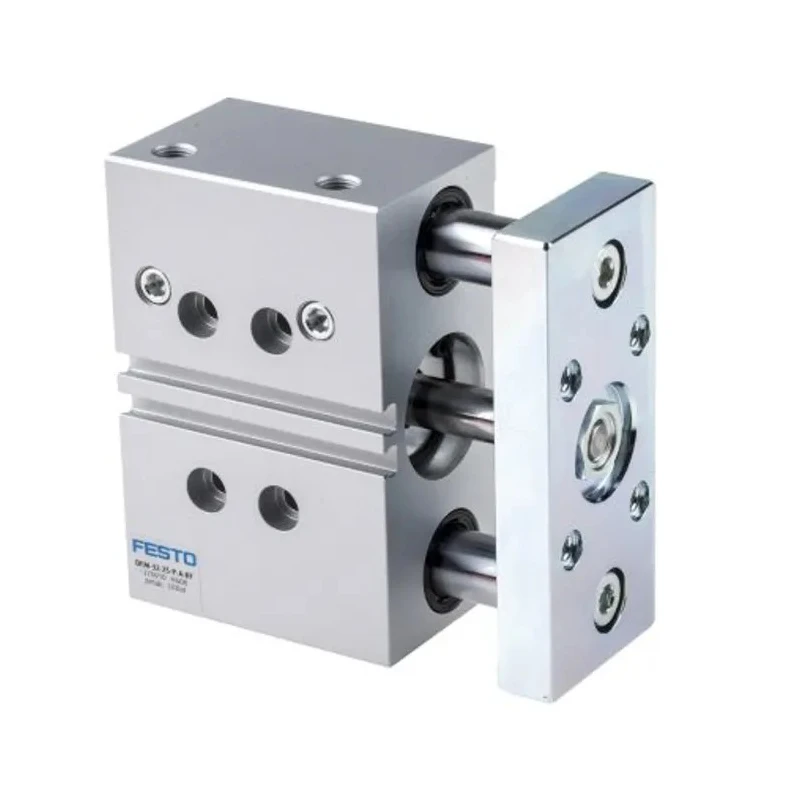

Festo Pneumatic Guided Cylinder 32mm Bore Double Acting Through Hole Mount 10 bar DFM-32-30-P-A-KF

Festo DFM-32-30-P-A-KF pneumatic guided cylinder with a 32 mm bore diameter is a double acting actuator combining drive and guide functions within a single compact housing. This cylinder features a robust construction using high alloy stainless steel, tempered steel, wrought aluminium alloy, nitrile rubber (NBR), and polyurethane to offer maintenance-free operation and high resistance to torques and lateral external forces.

The cylinder integrates recirculating ball bearings driving the guide rods, making it suitable for demanding industrial applications involving torque loads, such as clamping, stopping, material handling, and lifting. Flexible cushioning plates reduce operational noise and improve service duration, ensuring reliable performance.

The design incorporates supply ports on both the top and side for versatile mounting positions, and slots for proximity sensors facilitate linear position measurement of the piston.

Operating within a pressure range up to 10 bar and temperature limits from -5°C up to 60°C, the actuator ensures stable and precise performance. Its maximum piston speed is limited to 0.8 mm/s to maintain control over motion accuracy.

With compact dimensions (length 111 mm, width 108 mm, height 49 mm) and a stroke length of 30 mm, this guided cylinder offers a strong and precise solution weighing 1.9 kg. The product is manufactured in Germany and complies with ISO 1179-1, RoHS, and ISO 228-1 standards.

Double acting pneumatic guided cylinder with 32 mm bore diameter. Through hole mount type suitable for flexible installation. Maximum operating pressure of 10 bar for heavy-duty applications. Body made from stainless steel, tempered steel, aluminium alloy, NBR, and polyurethane.

Ball and plain bearings ensure durability under torque loads. Flexible cushioning plates for noise reduction and long service life. Operating temperature range from -5°C to 60°C. Compact dimensions and stroke length of 30 mm for precise movement.

Weight of 1.9 kg, suitable for industrial, manufacturing, and automation tasks. Manufactured in Germany to ISO and RoHS standards.

This pneumatic guided cylinder is designed for diverse industrial uses including material handling, lifting, clamping, and stopping, providing reliability and precision crucial in automated systems and manufacturing processes.
