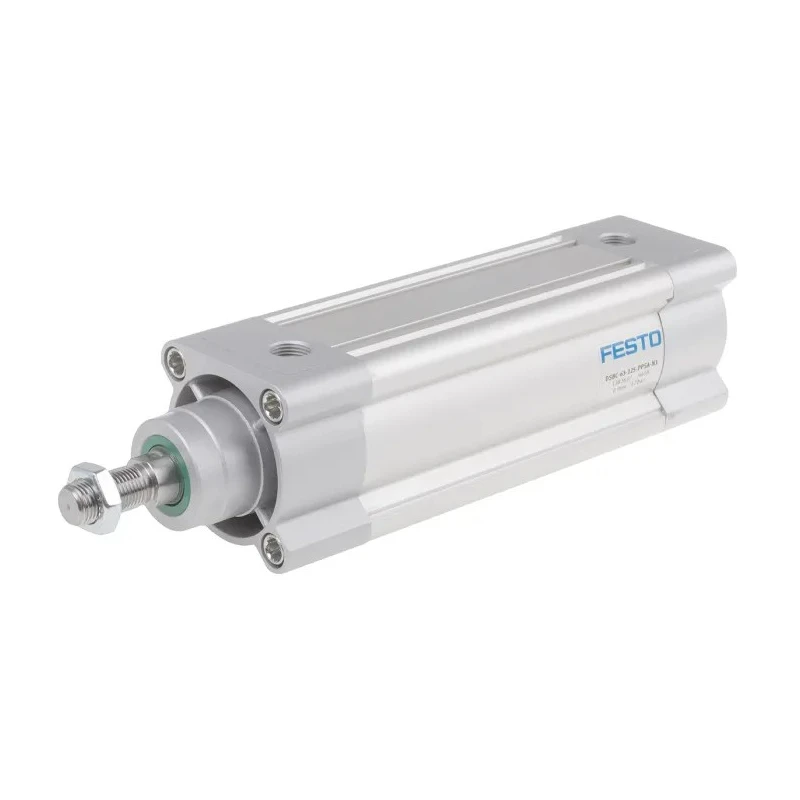

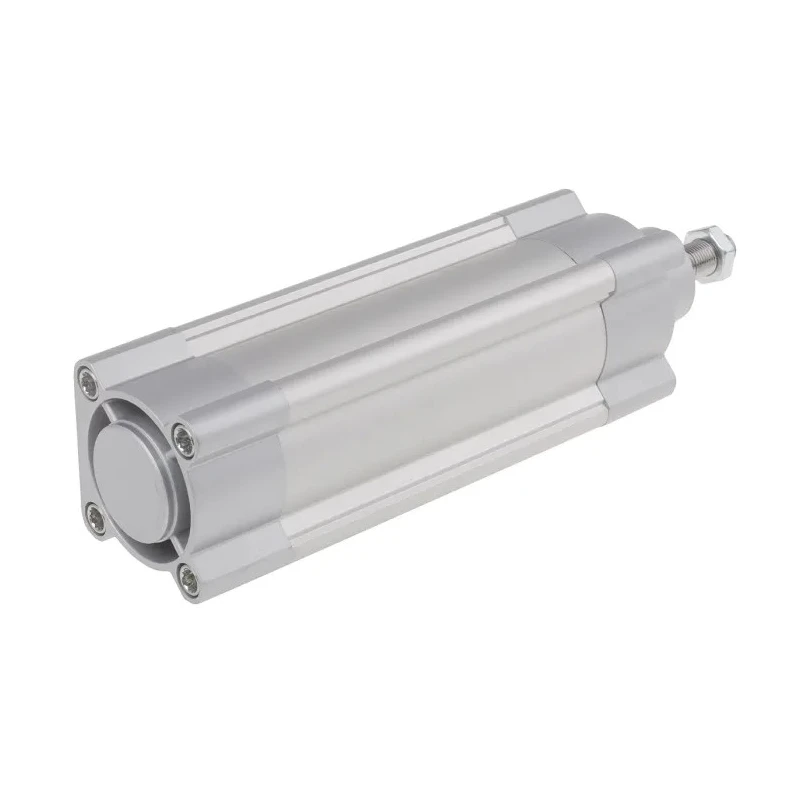

Festo Pneumatic Piston Rod Cylinder 63mm Bore, 125mm Stroke, Double Acting, Aluminium Body DSBC-63-125-PPSA-N3

Festo DSBC-63-125-PPSA-N3 Pneumatic Piston Rod Cylinder features a 63mm bore diameter and a 125mm stroke length with double acting pneumatic operation in an aluminium body constructed for durability and industrial performance.

This cylinder series incorporates a self-adjusting pneumatic cushioning system that delivers gentle and consistent deceleration at the ends of the stroke, reducing noise and vibration without requiring manual adjustments. Its design includes a special piston extension to modulate the air cushion's venting efficiently.

The high-alloy steel piston rod is mechanically robust and ensures low friction for continuous operation, while the cylinder body meets ISO 15552 standards, facilitating interchangeable installation with numerous mounting options including through-hole mounting and accessory compatibility.

Offering dual connection ports, the double acting piston rod cylinder delivers reliable linear motion control, suitable for automation in industrial, manufacturing, HVAC, and mechanical applications.

Additional features include slots for flush mounting proximity sensors for precise, contactless piston position detection. The operational limits are a maximum pressure of 12 bar and a temperature operating range between -20°C and 80°C.

With overall dimensions of 318.1mm length, 75mm width, and 75mm height, and a weight of 1.7kg, this compact unit balances performance and space efficiency. The cylinder is designed and manufactured in Germany, assuring high-quality standards.

Self-adjusting pneumatic cushioning provides noise and vibration reduction without manual tuning. High-alloy steel piston rod with threaded connector for robust mechanical performance. ISO 15552 compliant, ensuring broad compatibility and flexibility in mounting.

Double acting operation with dual connection ports for advancing and retracting piston rod. Slots for proximity sensor mounting for precise position sensing. Aluminium body material for durability with reduced weight. Operating pressure up to 12 bar and temperature range -20°C to 80°C for versatile application conditions.

Compact body dimensions and 1.7kg weight for ease of use and installation.

This Festo pneumatic piston rod cylinder is well suited for industrial automation, fluid power systems, mechanical machinery, HVAC, and laboratory equipment requiring precise linear motion control.
