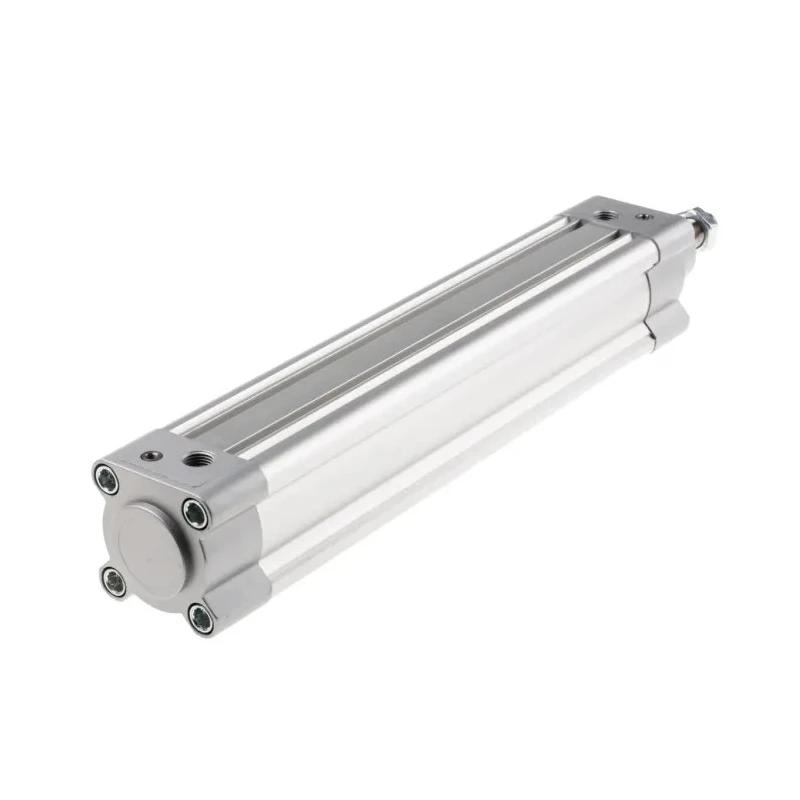

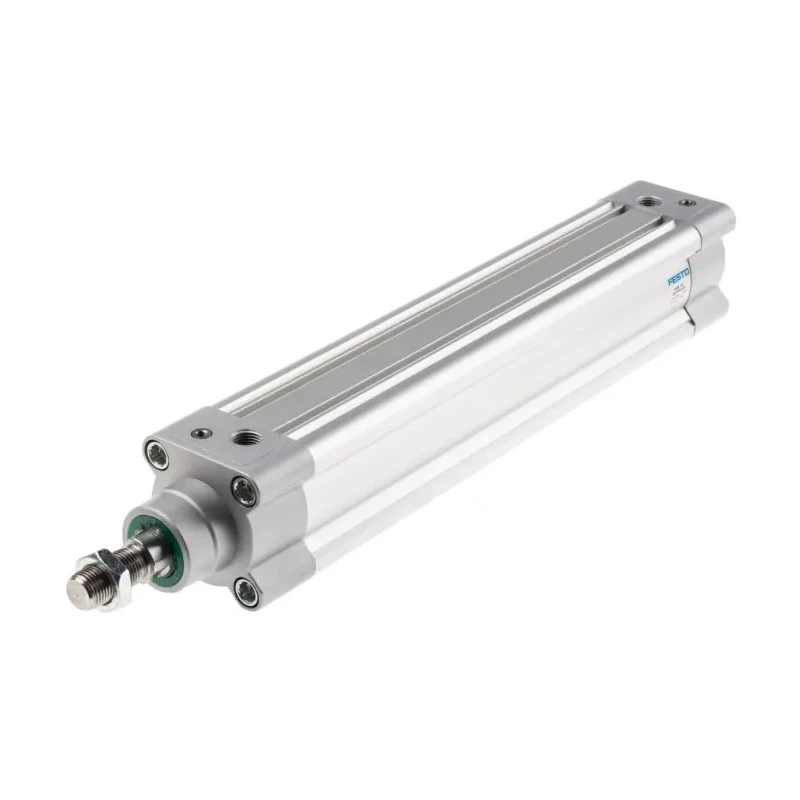

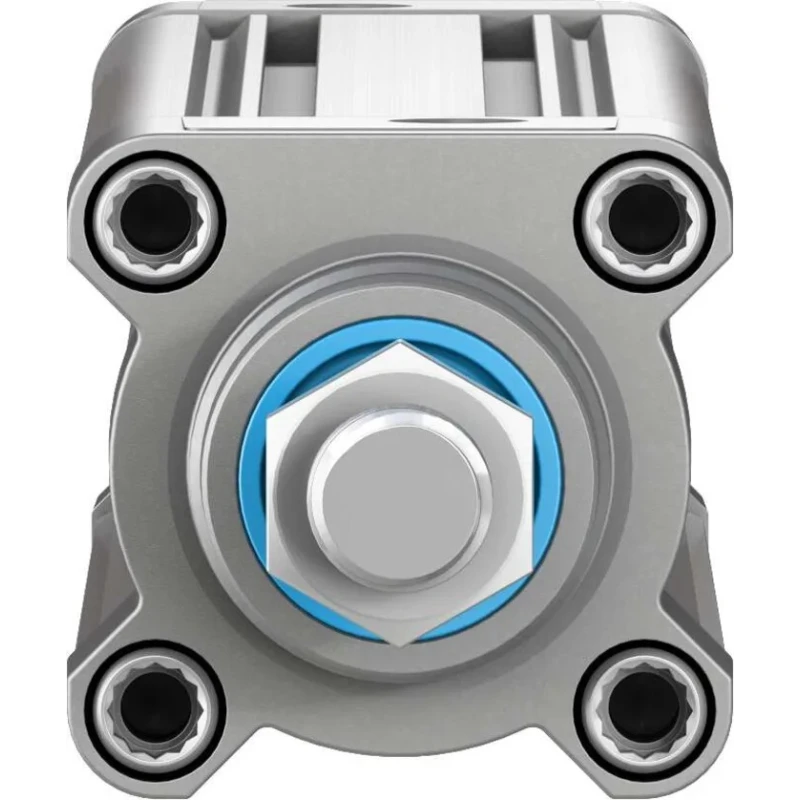

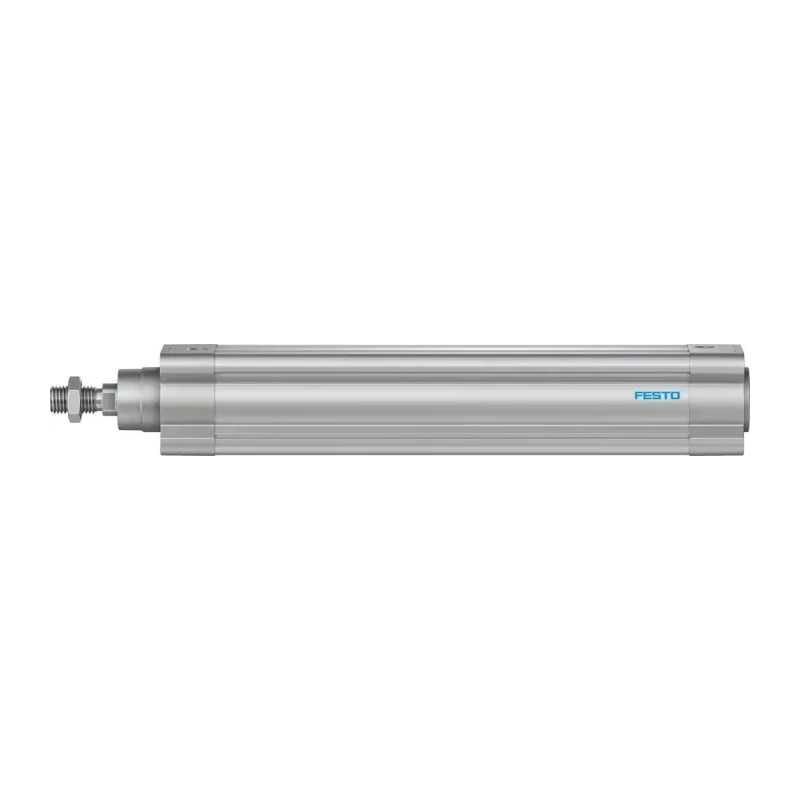

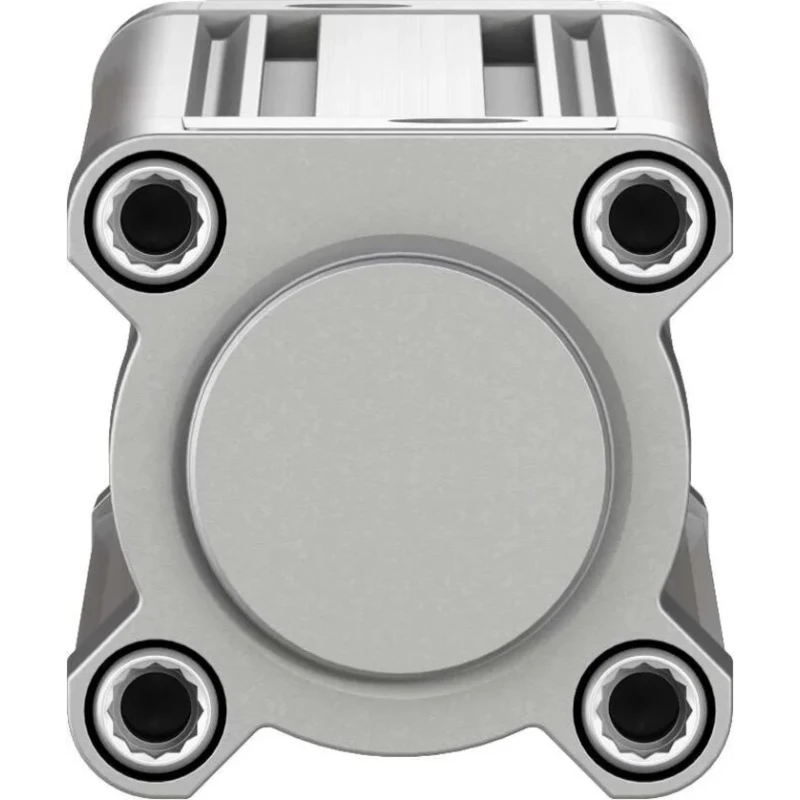

Festo Pneumatic Piston Rod Cylinder 50mm Bore, 250mm Stroke, Double Acting, Aluminium Body DSBC-50-250-PPVA-N3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 12 bar |
| Height | 64mm |
| Length | 427.8mm |
| Model | DSBC-50-250-PPVA-N3 |
| Gross Weight | 1.2kg |
| Width | 64mm |
| Mount Type | Through Hole |
| Series | DSBC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 250mm |
| Bore Diameter | 50mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/4 in G |
Key Features
- Operates under a maximum pressure of 12 bar for diverse pneumatic tasks.
- Features adjustable PPV cushioning at both ends to minimize noise and vibration.
- Can be installed in any position, offering operational flexibility.
- Equipped with integrated TPE-U(PU) seals to prevent dust ingress and enhance longevity.
- Operates reliably within temperature range of -20°C to 80°C for demanding environments.
- Delivers an advance stroke force of 1178N and a return stroke force of 990N at 6 bar pressure.
- Constructed with a wrought aluminium alloy housing for superior impact and corrosion resistance.
- Uses a through hole mount type and features a single male piston rod with 1/4 in G thread size.
Product Description
Festo DSBC-50-250-PPVA-N3 Pneumatic Piston Rod Cylinder, featuring a 50mm bore diameter and 250mm stroke length, is designed for demanding industrial and mechanical pneumatic applications. This double-acting cylinder enables precise movement through alternating air ports at each end, providing efficient forward and backward motion of the piston rod.
The cylinder boasts a robust wrought aluminium alloy housing that ensures high resistance to impact, corrosion, and wear, ideal for harsh operating conditions. It supports a wide operating pressure range up to 12 bar and maintains functionality across temperatures ranging from -20°C to +80°C.
The integrated adjustable PPV cushioning system at both stroke ends reduces noise and vibration, ensuring smooth and quiet operation. Its versatility is enhanced by the ability to be mounted in any orientation, facilitated by a through hole mounting type.
Sealed with TPE-U(PU) materials, this cylinder is protected from dust and contaminants, thereby guaranteeing a longer service life in industrial environments such as material handling equipment, assembly lines, and airport terminals.
Wide operating pressure range of 0.4 to 12 bar supports various pneumatic tasks. Adjustable cushioning minimizes operational noise and vibration. Flexible mounting positions for installation convenience. Durable aluminium construction provides corrosion resistance.
Thermoplastic seals prevent dust infiltration for longevity. High force output at standard operating pressure for heavy-duty use. Compact dimensions with a total length of 427.8mm and weight of 1.2kg. Compliant with ISO 15552 and RoHS for safety and environmental standards.
This Pneumatic Piston Rod Cylinder is essential for industrial automation applications in manufacturing, assembly, and material handling sectors. Its precision, durability, and operational flexibility make it a reliable choice for system integrators and engineers looking for robust pneumatic actuators.
Explore more pneumatic cylinders and actuators in the Industrial Tools & Equipment category at EnvMart to find the right components for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 12 bar.
This unit has a total length of 427.8mm, a height of 64mm, and a width of 64mm.
The stroke length is 250mm and the bore diameter is 50mm.
It features adjustable air cushioning at both ends to minimize noise and vibration during operation.
The gross weight of this model is 1.2kg.
It operates reliably within a temperature range of -20°C to +80°C.
It is equipped with integrated TPE-U(PU) seals to prevent dust ingress and enhance longevity.
The piston rod is a single male type with a 1/4 in G thread size.
This model uses a through hole mount type for installation.
It complies with ISO 15552 and RoHS standards for safety and environmental considerations.
This cylinder is suitable for industrial automation applications, including material handling, assembly lines, and other mechanical pneumatic tasks.
At 6 bar pressure, it delivers an advance stroke force of 1178N and a return stroke force of 990N.
