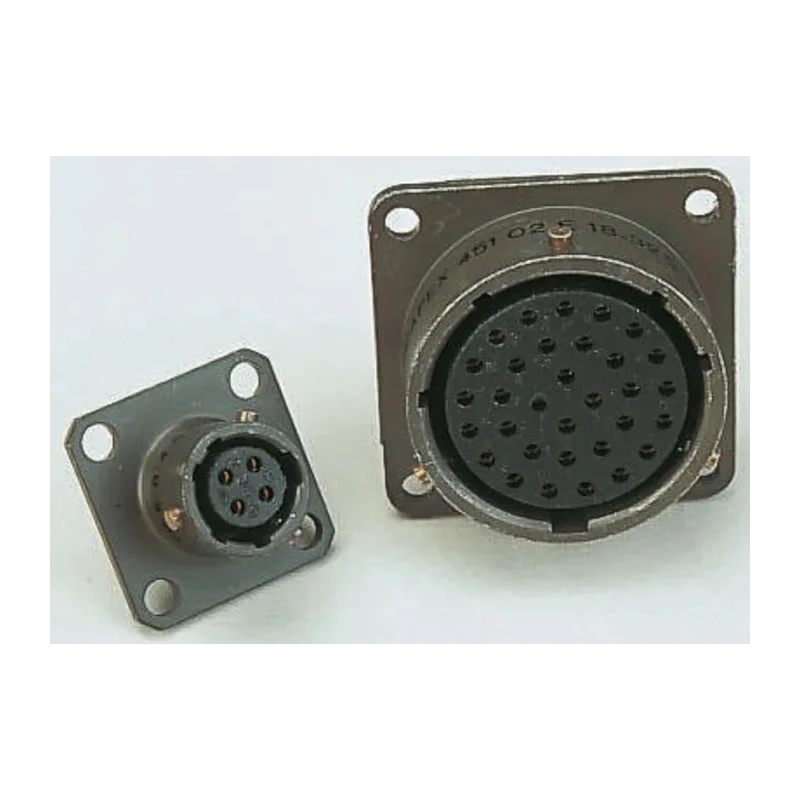

ITT Cannon MIL Spec Circular Connector Copper Alloy Straight 26 Way Box Mount Female Contacts 7.5A 850V dc KPT02E16-26S
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 850V dc |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 7.5A |
| Model | KPT02E16-26S |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | KPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |

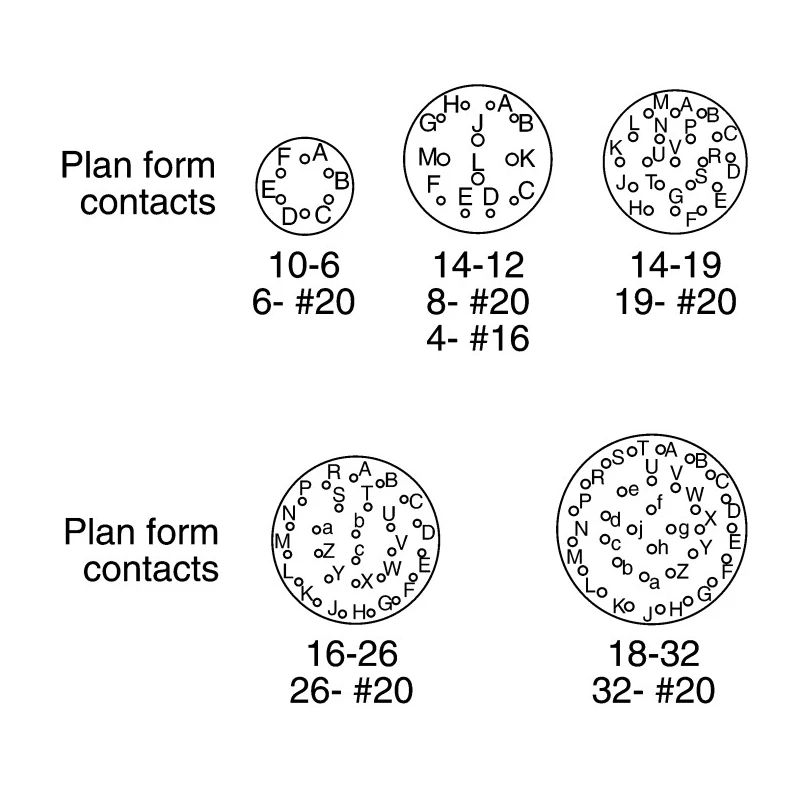

| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Supports a maximum current rating of 7.5 amperes.
- Constructed with an aluminium housing and olive drab cadmium shell plating for environmental protection.
- Compatible with MIL-DTL-26482 military standards and features bayonet mating coupling.
- Operates reliably between -55°C minimum and 125°C maximum operating temperatures.
- Contacts are solder termination type ensuring secure and stable connections.

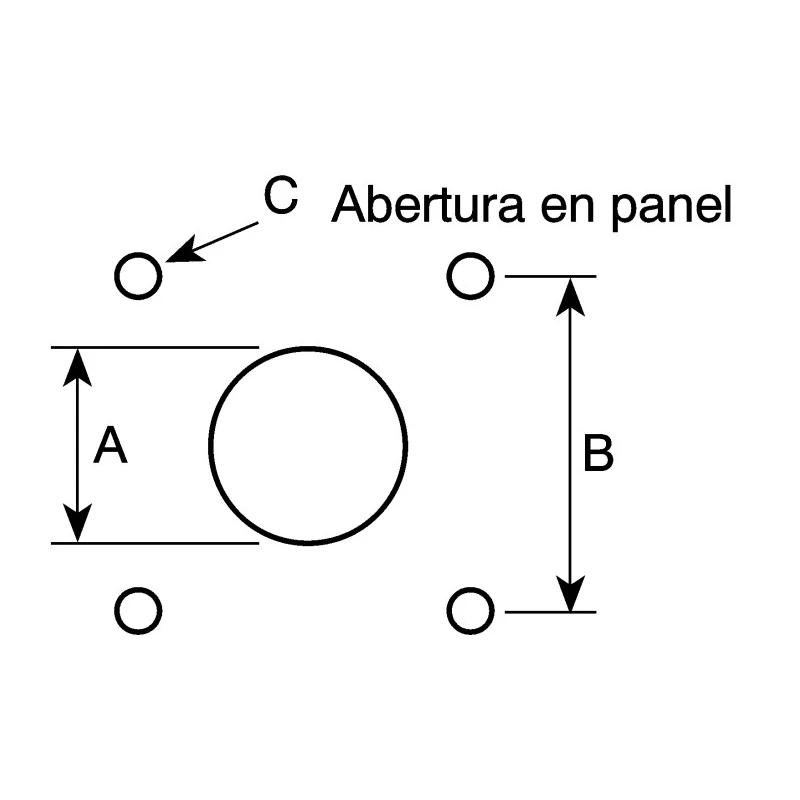

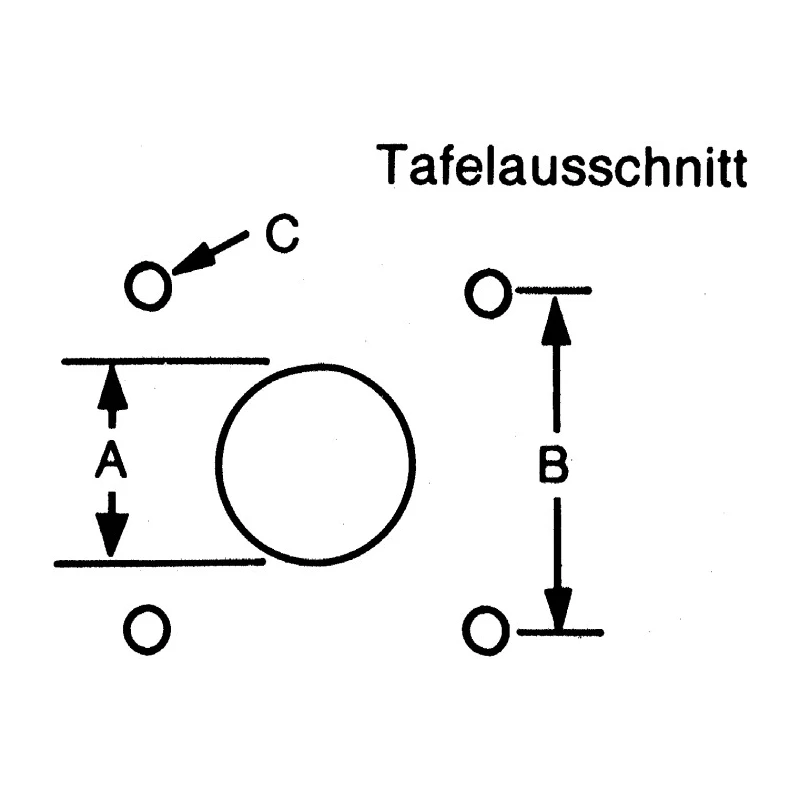

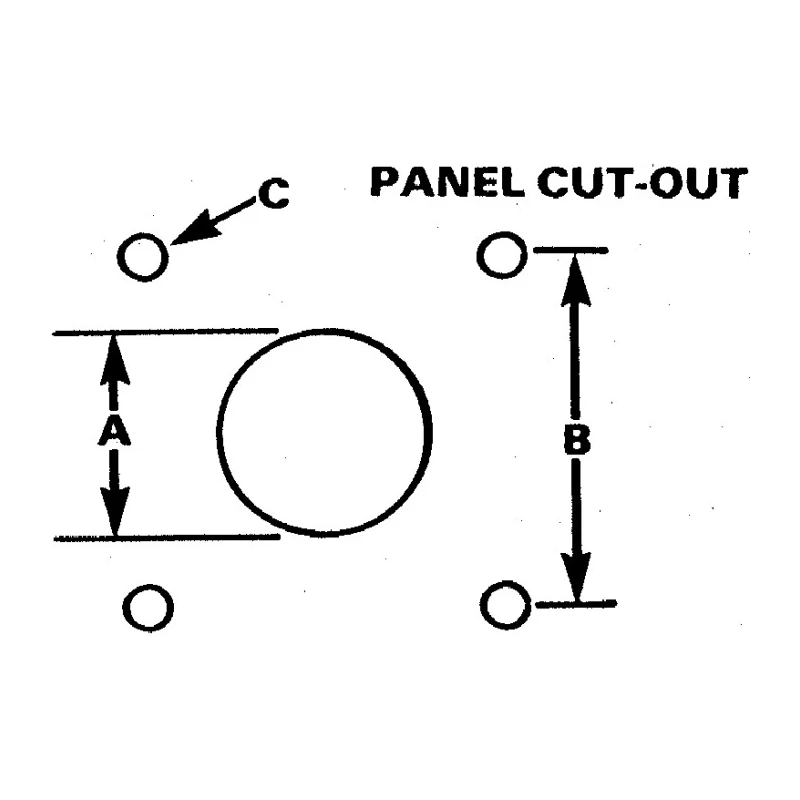

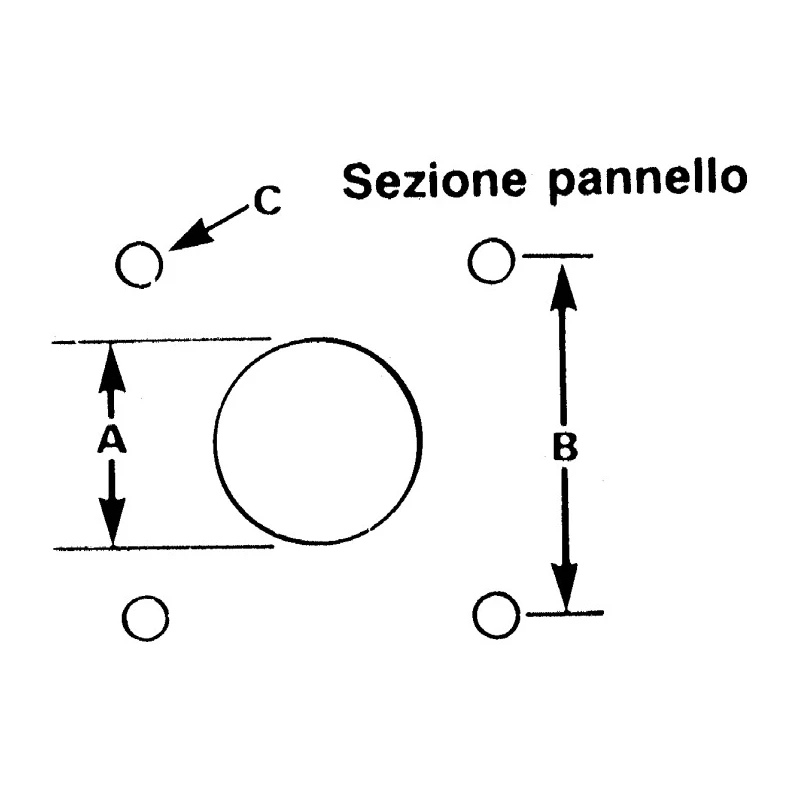

- Designed for box mount application providing robust chassis installation.
- Manufactured in Mexico ensuring quality adherence and standards compliance.
Product Description
ITT Cannon KPT02E16-26S is a high-quality Mil Spec Circular Connector designed for industrial, military, and aerospace electronic applications requiring robust and reliable connectivity solutions. It features 26 female contacts with gold plating to ensure excellent electrical conductivity and corrosion resistance. The connector is housed in an aluminium shell with an olive drab cadmium plating, providing a shielded and durable finish suitable for harsh environments.
This straight box mount connector meets the MIL-DTL-26482 standard and offers a positive three-point bayonet coupling mechanism to guarantee secure, vibration-resistant mating. It supports a current rating of 7.5 amperes and a voltage rating of 850 volts DC, making it suitable for medium power signal connections.
The termination type is solder, facilitating dependable contact retention and ease of assembly in industrial environments. Operating temperature ranges from -55 degrees Celsius to 125 degrees Celsius, enabling use in extreme temperature conditions encountered in aerospace, industrial, and military settings.
Connectivity is female-to-female contact gender, and the connector is designed exclusively for box mount chassis installations. This product's manufacturing origin is Mexico, reflecting global quality manufacturing standards.
Supports a maximum current rating of 7.5 amperes. Connector voltage rating is 850 volts DC. Gold-plated copper alloy contacts ensure durability and conductivity. Housing made of aluminium with olive drab cadmium shell plating.
Complies with MIL-DTL-26482 military specification. Bayonet mating type provides secure locking mechanism. Operating temperature from -55°C to 125°C for harsh environments. Termination by soldering for reliable connectivity.
Female contact and connector gender configuration. Suitable for box mount chassis applications.
This connector is ideal for industrial, military, aerospace, and other demanding electronic applications requiring compliant Mil Spec components. For more products in Mil Spec Circular Connectors browse EnvMart’s extensive range.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 7.5 amperes.
The voltage rating of this model is 850 volts DC.
The housing is made of aluminium, and the contacts are constructed from copper alloy with gold plating.
It operates reliably between -55°C and 125°C.
The termination type for this connector is solder, which ensures secure connections.
This connector features 26 female contacts.
Yes, it complies with the MIL-DTL-26482 military specification.
It features a bayonet mating type, providing a secure locking mechanism.
The connector has a female contact gender configuration.
This connector is designed for box mount applications.
It is manufactured in Mexico, ensuring adherence to quality standards.
This connector belongs to the KPT series.
