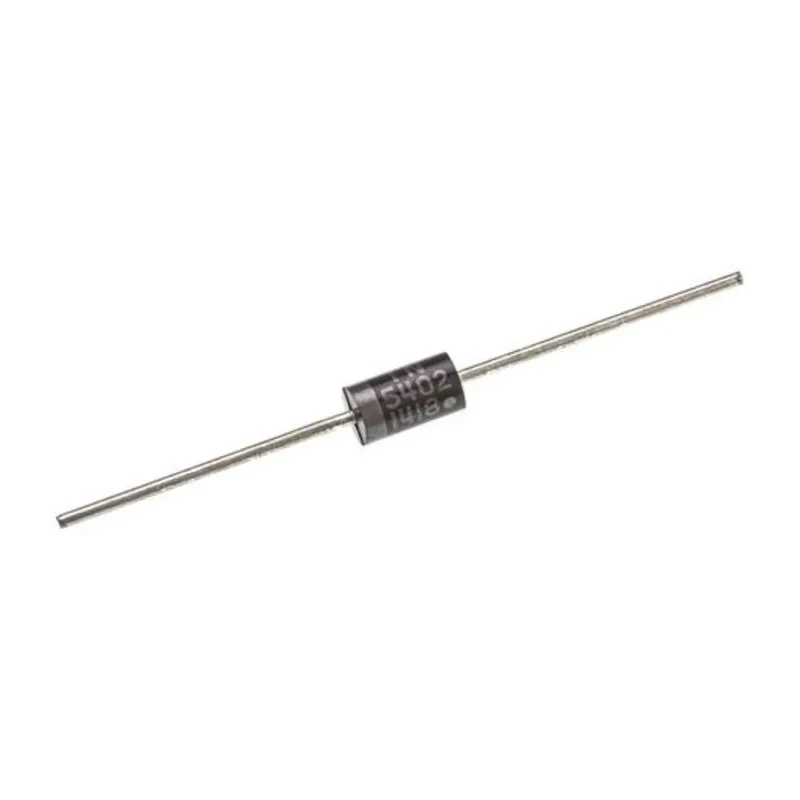

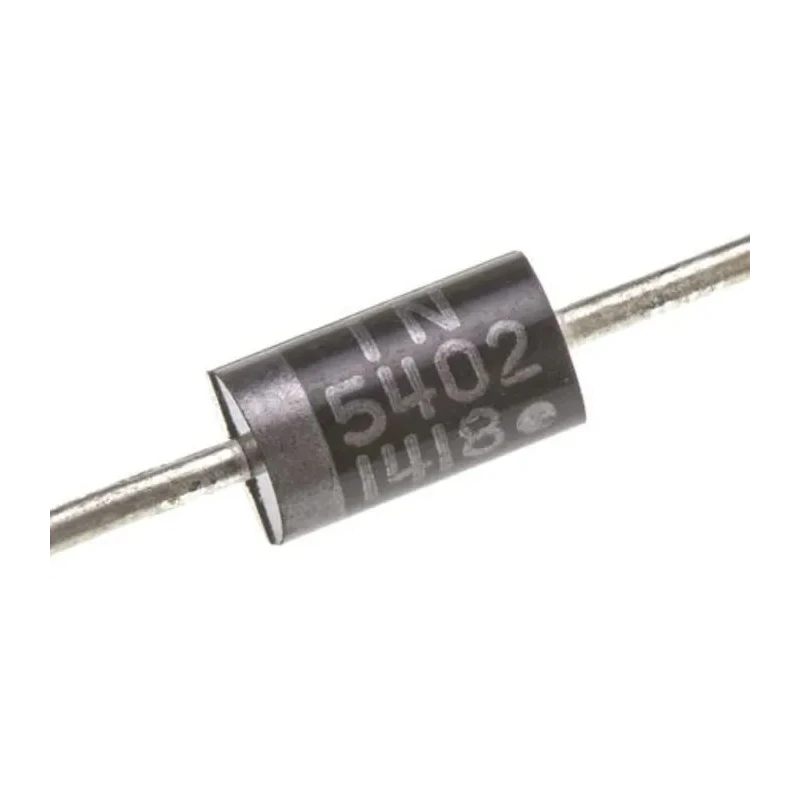

onsemi 200 V 3 A Low Leakage Diode Single Rectifier Through Hole DO-41 Package 1N5402RLG

onsemi 1N5402RLG is a high-performance low leakage diode designed for power rectification in electronics and electrical applications. It features a robust 200 V peak reverse voltage rating and supports continuous forward current up to 3 A. Packaged in a through-hole DO-41 form factor, it provides reliability and ease of assembly on PCBs.

This diode offers a low forward voltage drop of 1 V and very low peak reverse current leakage of 10 μA, enhancing efficiency and reducing heat generation in power circuits. It withstands peak non-repetitive forward surge currents up to 200 A, making it suitable for handling transient currents during power surges.

Operating temperature ranges from -65°C to 150°C ensure stable performance under harsh environmental conditions. The compact physical size with a diameter of 5.3 mm and a length of 9.5 mm facilitates integration in compact circuit designs.

The fast peak reverse recovery time of 1.6 ns makes this diode appropriate for high-speed switching in power supply and industrial electronics. Its single diode configuration with two pins simplifies circuit design in rectifier and power conversion equipment.

High current rating of 3 amperes suitable for power rectification. Maximum peak reverse voltage of 200 volts ensures robust operation. Low leakage rectifier type minimizes power dissipation. Single diode configuration with two pins in standard DO-41 package.

Maximum forward voltage drop of 1 volt for efficient conduction. Peak reverse current as low as 10 microamperes at rated conditions. Operates across a wide temperature range from -65°C to 150°C. Peak surge forward current capability of 200 amperes for transient loads.

Compact dimensions with 5.3 mm diameter and 9.5 mm length for easy PCB integration. 1.6 nanoseconds peak reverse recovery time suitable for fast switching applications.

This diode is ideal for use in industrial, power supply, consumer electronics, and automotive applications requiring efficient and reliable rectification. It ensures long-term durability and high performance in electronic circuits.
