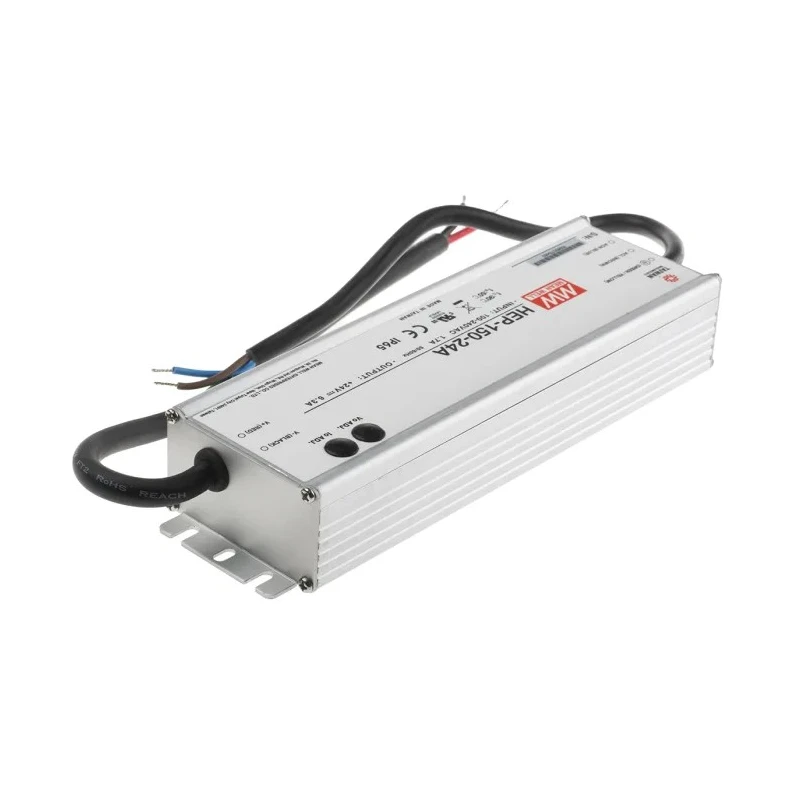

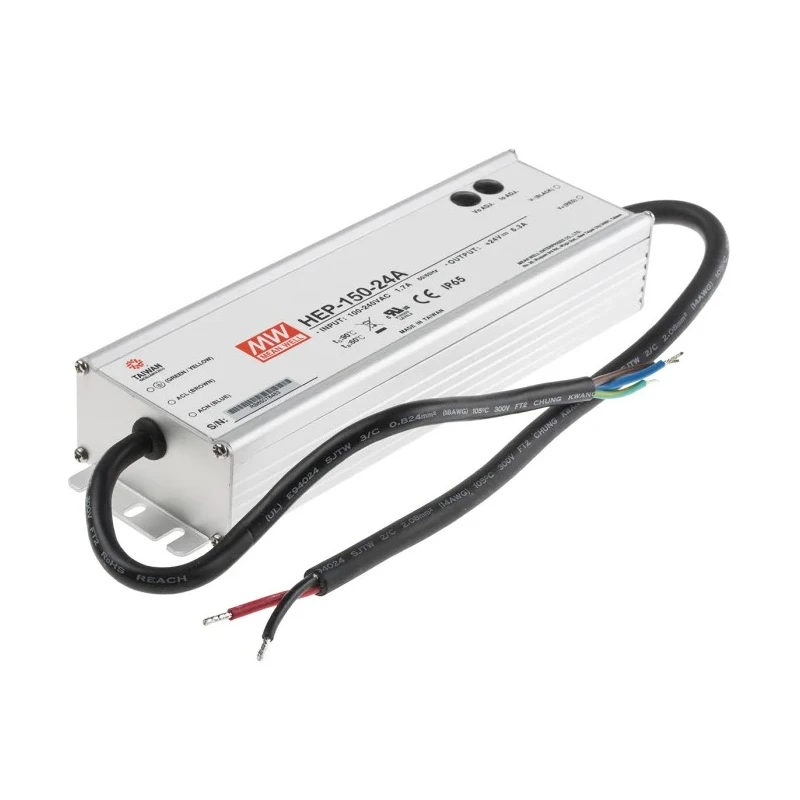

MEAN WELL Industrial-Grade 24V DC 151W Switching Power Supply HEP-150-24A
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 151W |
| Efficiency | 93% |
| Length | 228mm |
| Model | HEP-150-24A |
| Depth | 38.8mm |
| Gross Weight | 1.2kg |
| Width | 68mm |
| Mount Type | Chassis |
| Series | HEP-150 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -55°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 431, 305V dc |
| Standards/Approvals | UL 6681, ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681 |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 6.3A |
| Minimum Input Voltage | 90V ac |
Key Features
- Operates reliably between -55°C to +70°C ambient temperature.
- Robust aluminium construction with heat-conducted silicone ensures durability.
- Supports universal full range AC input voltage with minimum 90V AC and maximum 431V DC.
- Free air convection cooling design eliminates need for fans.
- High efficiency of up to 93% reduces energy loss and heat generation.
- 6.3 A output current capability suits various industrial applications.
- Complies with UL, ASNZS, EAC, and TUV safety and performance standards.
- Designed to withstand up to 10G vibration and 6 KV surge immunity.
Product Description
MEAN WELL HEP-150-24A is an industrial-grade switching power supply designed to deliver 24V DC output with a power rating of 151W. This unit features a robust aluminium chassis fully potted with heat-conducted silicone to withstand harsh environments involving high humidity, dust, oil, and vibrations.
Capable of operating in extreme conditions ranging from -55°C up to 70°C ambient temperature, the HEP-150-24A ensures reliable performance. Its universal full range AC input supports from 90V AC minimum up to 431V DC maximum, suitable for diverse industrial power inputs.
The power supply employs free air convection cooling, eliminating the need for fans, thus reducing maintenance. It boasts a high efficiency of 93%, contributing to energy savings and less heat generation during operation.
This model provides a 6.3 A DC output current with a single output channel, making it suitable for outdoor telecom equipment, mining and petroleum industry installations, and external signage systems. The aluminium chassis and silicone potting offer superior mechanical and environmental protection withstanding vibration up to 10G and surge immunity of 6KV.
Operates between -55°C to +70°C ambient temperature. Universal full range AC input voltage: 90V to 305V AC / 431V DC maximum. High efficiency of 93% with free air convection cooling. Robust aluminium casing fully potted with heat-conducted silicone.
Supports 6.3 A output current at 24V DC output voltage. Complies with UL 6681, ASNZS 668.1, EAC TP TC 004, TUV BS EN standards. Designed for harsh environments with vibration and surge immunity. Compact chassis mount design: 228mm x 68mm x 38.8 mm.
Suitable for industrial, telecommunications, mining, petroleum, and signage applications.
This MEAN WELL switching power supply is a reliable and efficient solution for demanding industrial power requirements. Explore additional high-quality power supplies at EnvMart for diverse industrial and commercial needs.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HEP-150-24A has a power rating of 151W.
It boasts a high efficiency of 93%, which helps reduce energy loss and heat generation during operation.
This model operates reliably in ambient temperatures ranging from -55°C to +70°C.
The maximum input voltage supported is 431V DC and 305V AC.
It provides a DC output current of 6.3 A.
The dimensions are 228mm in length, 68mm in width, and 38.8mm in depth.
It employs a free air convection cooling design, eliminating the need for fans and reducing maintenance.
This model is suitable for outdoor telecom equipment, mining and petroleum industry installations, and external signage systems.
It complies with UL 6681, ASNZS 668.1, EAC TP TC 004, and TUV BS EN standards.
This unit supports a chassis mount design.
It features a robust aluminium chassis fully potted with heat-conducted silicone, designed to withstand high humidity, dust, oil, and vibrations up to 10G.
Yes, it is designed to withstand surge immunity of up to 6 KV.
