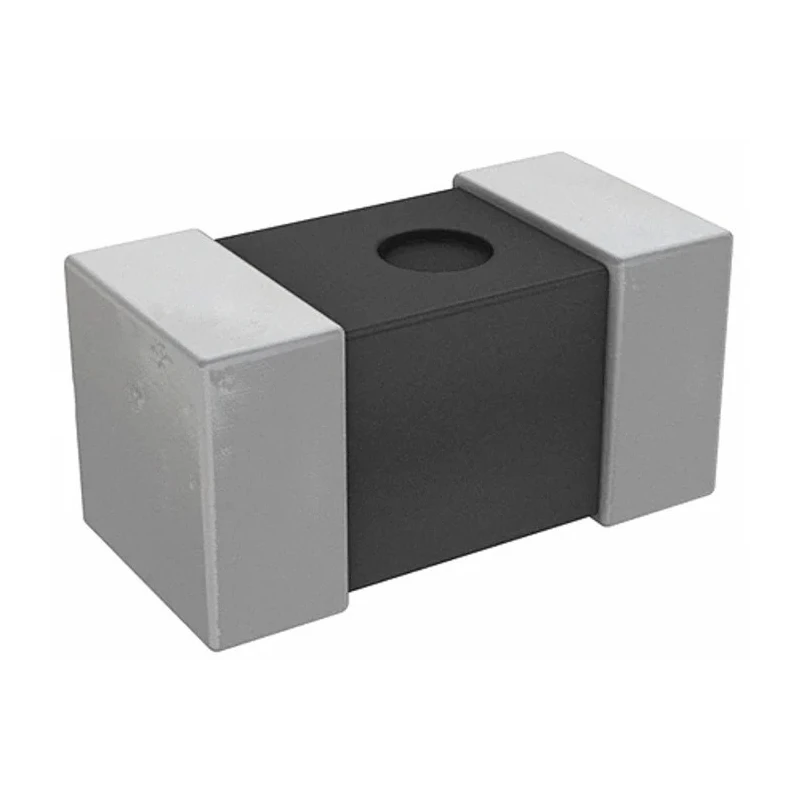

Murata 0201 Shielded Wirewound Surface Mount Inductor with Non-Magnetic Core 1.8 nH ±0.1 nH 600 mA LQP03TN1N8B02D

Murata LQP03TN1N8B02D is a precision 0201 size shielded wirewound surface mount inductor employing a non-magnetic core. It offers a highly stable inductance value of 1.8 nH with a tolerance of ±0.1 nH and supports a maximum DC current of 600 mA. This ultra-miniature surface mount device measures only 0.6 mm in length with a 0.3 mm height and depth, making it ideal for space-constrained electronic assemblies.

Featuring a minimum quality factor of 14, this inductor demonstrates high efficiency in high frequency circuits such as power amplifiers, antennas, SAW filters, and voltage-controlled oscillators commonly used in mobile phones and Bluetooth communication devices. Its low maximum DC resistance of 150 mΩ contributes to efficient current handling and low power loss.

The inductor is shielded, which minimizes electromagnetic interference, enhancing circuit stability and noise immunity. The compact 0201 package is designed for ease of soldering with standard surface mount technology methods, facilitated by the solder termination style.

Constructed with a film inductor design and moulded for mechanical strength, it complies with RoHS standards, ensuring environmental safety. This component is manufactured in Japan, reflecting high quality and reliability standards.

Applications include mobile telecommunications, high frequency RF circuits, and general purpose electronic devices requiring miniature, high-performance inductors. The product's small footprint and excellent electrical characteristics make it a preferred choice for advanced electronics manufacturing.

This surface mount inductor features a non-magnetic core for stable performance. It is designed with a compact 0201 package size measuring 0.6 mm length and 0.3 mm height and depth. The inductor provides a minimum quality factor of 14 for high frequency applications.

Maximum DC resistance of 150 mΩ ensures low power loss during operation. It has a maximum operating temperature rating of 125°C and a minimum operating temperature of -55°C. The device is shielded to minimize electromagnetic interference in circuits.

It uses solder termination style compatible with surface mount technology. The product is ROHS compliant and moulded for durability. Suitable for mobile phones, Bluetooth devices, and high frequency circuits including PA and antenna applications.

Manufactured with film inductor construction for high performance at miniature sizes. Explore more high-quality Surface Mount Inductors and electronic components on EnvMart.
