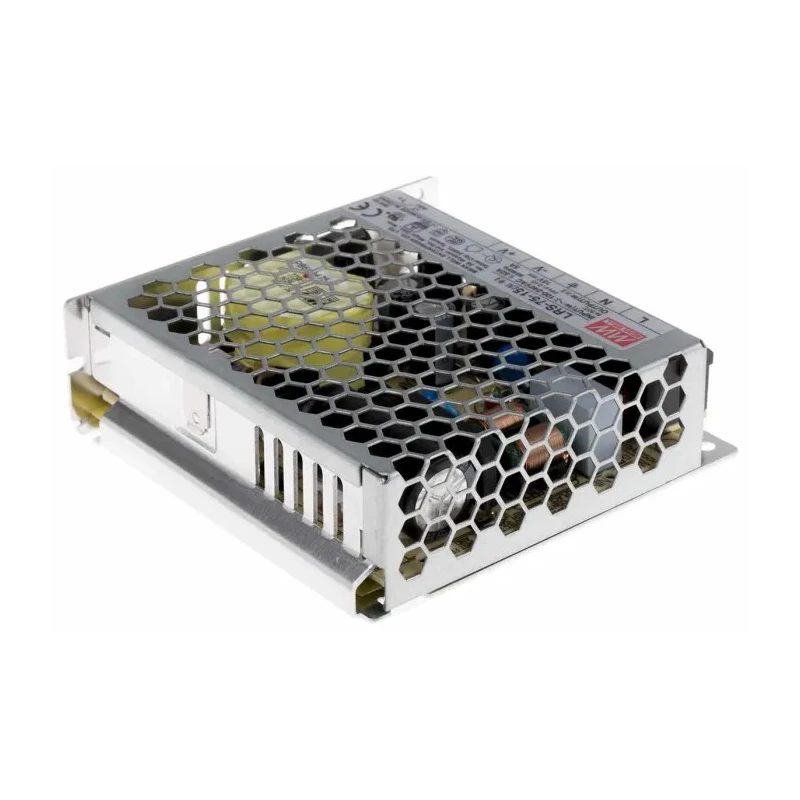

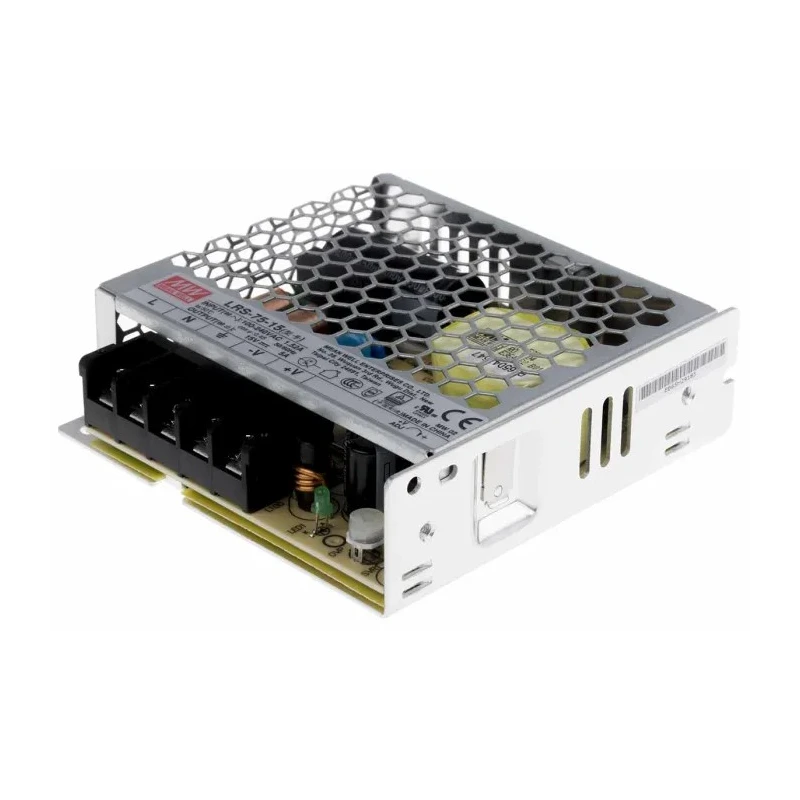

MEAN WELL 75W Switching Power Supply 15V DC, Chassis Mount, LRS-75-15
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 75W |
| Efficiency | 89% |
| Length | 99mm |
| Model | LRS-75-15 |
| Depth | 30mm |
| Gross Weight | 300g |
| Width | 97mm |
| Mount Type | Chassis |
| Series | LRS-75 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 373, 264V dc |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 5A |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal AC input with full range supports 85V to 264V AC voltage.
- High efficiency rating of 89% reduces power loss and heat generation.
- Compact dimensions with 99mm length, 97mm width, and 30mm depth for space-saving installation.
- Designed for reliable operation in industrial automation, mechanical and electrical equipment.
- Operates in temperature range from -30°C to 70°C with 5G vibration resistance.
- Equipped with free air convection cooling, eliminating the need for fans.
- Conforms to multiple international safety and performance standards including UL, CSA, TUV, and CCC.
- Provides stable 15V DC output with 5A current for a variety of electronic components.
Product Description
MEAN WELL LRS-75-15 is a 75W switching power supply designed for industrial and commercial applications requiring a reliable 15V DC output. Featuring a compact chassis mount form factor with dimensions of 99mm length, 97mm width, and 30mm depth, this unit ensures easy integration into control machinery and electrical systems.
The power supply supports universal AC input voltage ranging from 85V to 264V AC and can withstand surge inputs up to 300V AC for 5 seconds, ensuring robust operation in diverse electrical environments. It delivers a stable output current of 5A with high efficiency up to 89%, enabling energy-efficient performance and minimal heat production.
Designed with a metallic meshing enclosure and free air convection cooling, the LRS-75-15 offers excellent heat dissipation without the need for additional cooling fans. Its robust construction includes 5G vibration resistance, making it suitable for industrial automation, mechanical and electrical equipment, and household appliance applications.
The device complies with global standards such as AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, and UL 62368-1, ensuring safety and quality assurance.
Universal AC input full range with surge input tolerances. Up to 91.5% efficiency rating with low no load power consumption. 5G anti-vibration capability for challenging environments. Free air convection cooling without fans.
Compact and robust chassis mount design. Consistent and reliable 15V DC output at 5A current. Wide operating temperature range from -30°C to 70°C. Metallic meshing for optimal heat dissipation. Multiple international safety and quality certifications.
Ideal for industrial, mechanical, electrical, and household applications.
This MEAN WELL LRS-75-15 switching power supply is an excellent choice for electronic systems requiring dependable power with high efficiency and robust environmental tolerance. It is suitable for integration in industrial automation machinery, electrical control systems, and household appliance circuits.
Explore more Switching Power Supplies and power distribution solutions on EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LRS-75-15 provides a stable output voltage of 15V DC and a maximum output current of 5A.
This model has compact dimensions of 99mm in length, 97mm in width, and 30mm in depth.
It has an efficiency rating of 89%, which helps reduce power loss and heat generation.
The LRS-75-15 operates effectively within a temperature range of -30°C to 70°C.
It is designed for chassis mounting, making it suitable for integration into various systems.
The power supply supports a universal AC input voltage range from 85V to 264V AC.
No, it utilizes free air convection cooling, eliminating the need for additional cooling fans.
It conforms to multiple international safety standards, including UL, CSA, TUV, and CCC.
The gross weight of this unit is 300g.
It is designed for use in industrial automation, mechanical and electrical equipment, and household appliances.
The maximum input voltage it can withstand is 264V AC, with surge tolerances up to 300V AC for 5 seconds.
This model features a single output.
