| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HN |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG15HN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Inductance | 6.8nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 290mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Tin plating |
| Maximum Self Resonant Frequency | 6000MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

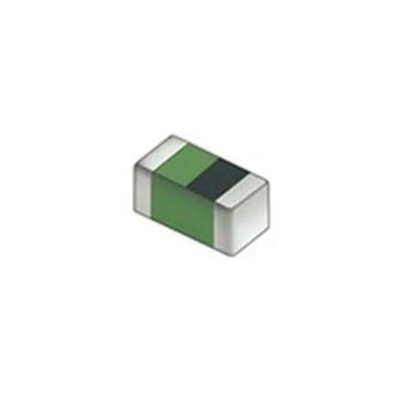

Murata LQG15HN 0402 Shielded Multilayer Surface Mount Inductor is a precision electronic component designed for use in compact and high-frequency applications. Featuring a nominal inductance of 6.8 nH with a tolerance of ±5%, this inductor supports a maximum DC current of 300 mA, making it well suited for RF circuit matching, WLAN networks, and mobile communication equipment.
The component is engineered with a multilayer construction that balances rated current capacity, size, and inductance tolerance, providing reliable performance even at high frequencies up to 6000 MHz. Its shielded design minimizes electromagnetic interference, ensuring signal integrity in sensitive electronic circuits.
Its compact 0402 package (1 mm length, 0.5 mm height and depth) enables seamless integration into surface mount technology (SMT) assemblies with tin plating termination style for excellent solderability. The inductor operates reliably in temperatures ranging from -55°C to 125°C and conforms to RoHS environmental directives.
This product is molded and includes 2 pins, packaged on paper tape for automated production lines. The maximum DC resistance is 290 mΩ, and it features a minimum quality factor (Q) of 8, ensuring efficient energy storage and low losses in high frequency applications.
Multilayer construction ensures balanced electrical characteristics. Shielded design reduces electromagnetic interference. High self-resonant frequency for high frequency usage. Compact 0402 package with precise dimensions.
Supports broad operating temperature range. RoHS compliant for environmentally responsible manufacturing. Packaged on paper tape for efficient automated assembly. Tin plating termination provides strong solder joints. Maximum DC current of 300 mA suitable for various electronic circuits.
Low DC resistance maintains signal integrity.
Commonly utilized in industrial electronics, telecommunications, laboratory instruments, and commercial wireless devices, this inductor is ideal for engineers and manufacturers requiring a reliable multilayer surface mount component with high-frequency performance. Explore more products in the Surface Mount Inductors category at EnvMart to find compatible and complementary components.
